ASTM A105 Carbon Steel Forged Fittings

ASTM A105 Carbon Steel Forged Fittings Supplier, Carbon Steel Forged Fittings, ASTM A105 Forged Fittings, Carbon Steel A105 Threaded Fittings, A105N Forged Fittings, A105 Fitting Specifications, ASTM A105 Fittings manufacturer

Detailed Information

Prashaant Steel & Alloys is a major retailer and producer of ASTM A105 Carbon Steel Forged Fittings. The ASTM A105 Carbon Steel Forged Fittings are among the most common grades of stainless steel circles and are commonly used in different industries. At Prashaant Steel & Alloys, we make sure that the ASTM A105 Carbon Steel Forged Fittings are manufactured utilizing the highest standard of the raw materials and cutting-edge technology. Prashaant Steel & Alloys ASTM A105 Carbon Steel Forged Fittings have built a niche in the market thanks to the superlative power and dimensional precision that these ASTM A105 Carbon Steel Forged Fittings give. We also produce these ASTM A105 Carbon Steel Forged Fittings according to our clients’ requirements and demands. All Prashaant Steel & Alloys goods undergo multiple checks before distribution. Some of the tests that our ASTM A105 Carbon Steel Forged Fittings go through are Intergranular corrosion (IGC) Test, Pitting Resistance Test, Flattening Test, Micro, and Macro Test.

We are manufacturers, suppliers and exporters of Carbon Steel A105 / A105N Forged Fittings, which are forged, Carbon Steel piping solutions to be used with pressure systems working at higher as well as ambient temperatures. Our Carbon Steel A105 Screwed Threaded Pipe Reducers are low Carbon, Manganese and Silicon added fittings which are usable for non-critical yet pressure applications, like refrigeration fittings, that work at constant temperatures. They offer maximum machinability and weldability as they are low carbon reducers.

We provide Carbon Steel A105N Forged Pipe Elbow, which are ‘normalised’, heat treated fittings, devoid of any internal stresses and thus having superior characteristics.Thereby, our Carbon Steel A105N Forged Tees have a uniform grain structure and are used for pressure piping in the steam and power systems. Also We offer wide range of Carbon Steel ASTM A105 Forged Fittings such as Carbon Steel A105N Forged Elbow, A105 Carbon Steel Equal Tee, ASTM A105 Carbon Steel Coupling, Carbon Steel Pipe Cap, Carbon Steel Union, Carbon Steel ASTM A105N Bushing, Carbon Steel Plug, Carbon Steel A105 Pipe Nipple, Carbon Steel A105N Street Elbow.

Carbon Steel A105 Forged Fittings are non-critical for pressurized or compression fittings. It has silicon, vanadium in less amount to offer excellent weldability and formability. Carbon Steel A105 Forged Fittings is most commonly preferred in steam systems, refrigerator, petrochemical plants, oil and gas refineries, nuclear power plant, chemical processing industry, etc. We, Prashaant Steel & Alloys have trustworthy vendors in contact to brought high-quality grade raw materials. We assure clients that, we will never compromise in productivity of products, always used high-quality grade raw materials. In our production plant, we installed the latest modern equipment and machine for high productivity of Carbon Steel A105 Forged Fittings urgently in less time. We have a qualified expert who are trained professionals who possess enough knowledge of production to guide the entire workforce. We follow the defined procedure of production under the supervision of an expert.

ASTM A105 Carbon Steel Forged Fittings Specifications:

Products

Size

ASTM A105 Carbon Steel 90° Elbows

ASTM A105 Carbon Steel 45° Elbows

Sizes 1/8″– 4″

Pressure Ratings –

2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

ASTM A105 Carbon Steel Forged Caps

ASTM A105 Carbon Steel Couplings

ASTM A105 Carbon Steel Forged Tees

ASTM A105 Carbon Steel Unions

ASTM A105 Carbon Steel Forged Cross

ASTM A105 Carbon Steel Inserts

ASTM A105 Carbon Steel Forged Plug

ASTM A105 Carbon Steel Street Elbows

ASTM A105 Carbon Steel Bushings

ASTM A105 Carbon Steel Pipe Nipple



Carbon Steel ASTM A105 Forged Fittings Manufacturing Standards :

ASTM A105 – ASME SA105

Standard Specification for Wrought Austenitic Carbon Steel Piping Fittings

ASME B16.11

Socket Welding and Threaded Forged Fittings

MSS SP-43

Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

MSS SP-95

Swage(d) Nipples and Bull Plugs

BS3799

Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

A105 Carbon Steel Fittings Chemical Composition
Element Composition %, Note C
Carbon .35 max. (maximum)
Manganese .60-1.05
Phosphorus .035 max. (maximum)
Sulfur .040 max. (maximum)
Silicon .10-35
Copper .40 max. (maximum), note A
Nickel .40 max. (maximum), note A
Chromium .30 max. (maximum), note A,B
Molybdenum .12 max. (maximum), note A,B
Vanadium .08 max. (maximum), note A
ASME B16.11 Carbon Steel Threaded Nipple Mechanical Properties
&ASTM A105 Carbon Steel Forged Fittings Property
Tensile Strength, min. (minumum): 70,000 psi (485 MPa]
Min. (minumum). Yield Point: 36,000 psi [250 MPa]
Reduction of area, min. (minumum): 30% min. (minumum)
Hardness, HB, max. (maximum) 187
Carbon Steel Socket Weld Fittings Type
Inconel Products

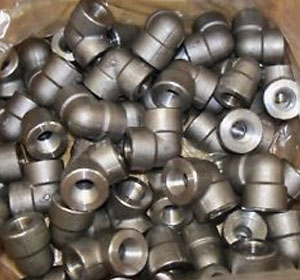

Carbon Steel Forged 90
Degree Elbow

Inconel Products

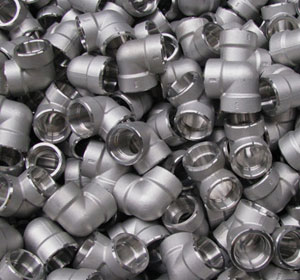

CS Forged 45 Degree Elbow

A182 AS F9 Weldoflange
Inconel Products

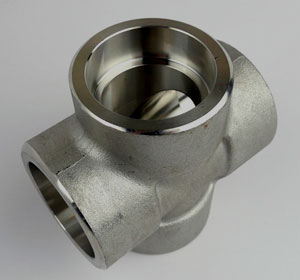

Carbon Steel ASTM a105 Forged
Socket Weld Cross

Inconel Products

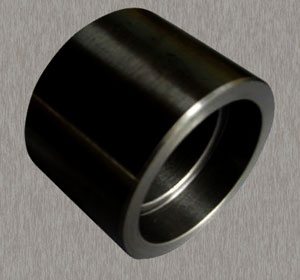

ASTM A105N Carbon Steel Socket
Weld Half Coupling

A182 AS F9 Weldoflange
Inconel Products

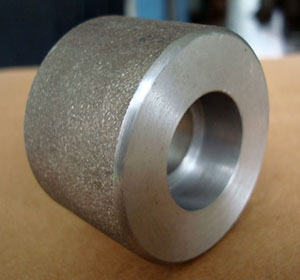

ANSI B16.11 A105 Carbon Steel
Socket Weld Cap

Inconel Products

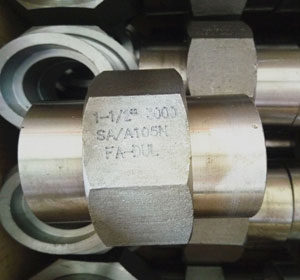

ASME SA105 Carbon Steel
Threaded Union

A182 AS F9 Weldoflange
Inconel Products

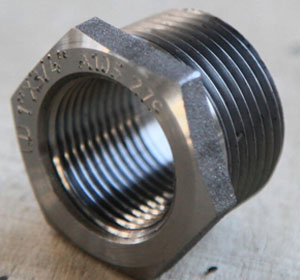

ASTM A105N Carbon Steel
Threaded Bushing

Inconel Products

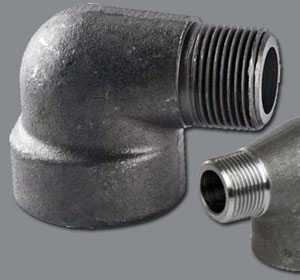

A105 Carbon Steel Threaded
Street Elbow

A182 AS F9 Weldoflange
ASTM A105 Forged Fittings Tolerance Chart
Dimensions Up to 2″ NB 2 1/2″ & 3″ NB
• Socket Bore + 0.25 + 0.38
– 0.00 – 0.00
• Body Bore + 0.00 + 0.00
– 1.52 – 3.00
A 1/4″ NB ± 0.8 ± 2.50
3/8″ TO 3/4″ NB ± 1.6
1″T0 2″NB ± 2.0
Carbon Steel Threaded Fittings Weight Chart
Normal Size Of Pipe Type A Type B QTY Weight Chart
¼ 0.81 0.88 160 0.20
0.97 1.00 130 0.26
½ 1.12 1.31 100 0.57
¾ 1.31 1.5 75 0.71
1 1.5 1.81 40 1.08
1 ¼ 1.75 2.19 25 1.68
1 ½ 2.00 2.44 18 2.38
2 2.38 2.97 10 3.55
2 ½ 3.00 3.62 4 6.22
3 3.38 4.31 2 10.36
4 4.19 5.75 1 23.91
Carbon Steel Socket Weld Fittings Weight Chart
Normal Size Of Pipe Type A Type B QTY Weight Chart
¼ 0.81 0.88 160 0.20
0.97 1.00 130 0.26
½ 1.12 1.31 100 0.57
¾ 1.31 1.5 75 0.71
1 1.5 1.81 40 1.08
1 ¼ 1.75 2.19 25 1.68
1 ½ 2.00 2.44 18 2.38
2 2.38 2.97 10 3.55
2 ½ 3.00 3.62 4 6.22
3 3.38 4.31 2 10.36
4 4.19 5.75 1 23.91
ASTM A105 Fittings Pressure Rating
Pressure-Temperature for ASTM A105 Carbon Steel Forged Fittings (psig)
Temperature Class
Class 150 Class 300
1/4 – 1 inch 1 1/4 – 2 inch 2 1/2 – 3 inch
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 935 750 560
450 232 725 600 475
500 260 510 450 385
550 288 300 300 300



ASTM A105 Socket Weld Fittings Dimensions
Nominal Pipe Size 3000 PSI Rating 6000 PSI Rating
IN MM Socket Bore B • Socket Depth D Socket Thickness A Body Bore * G Socket Thickness A Body Bore * G
Average MIN Average MIN
1/4 06 14.1 09.65 3.78 3.30 11.2 10.0 3.02 04.60 4.00 13.5 07.10 3.68
3/8 10 17.5 09.65 4.00 3.50 13.5 13.3 3.20 05.03 4.37 15.8 09.90 4.00
1/2 15 21.7 09.65 4.67 4.10 15.8 16.6 3.75 05.97 5.18 19.0 12.06 4.78
3/4 20 27.0 09.65 4.90 4.27 19.0 21.7 3,91 06.96 6.05 22.3 1603 5.56
1 25 33.8 12.07 5.70 4.98 22.3 27.4 4.55 07.92 6.93 27.0 21.05 6.35
1 1/4 32 42.5 12.07 6.04 5.28 27.0 65.8 4.85 07.92 6.93 31.8 30.02 6.35
1 1/2 40 48.6 12.07 6.35 5.54 31.8 41.7 5.08 08.92 7.80 38.0 34.07 7.15
2 50 61.1 12.07 6.93 6,06 38.0 53.3 5.54 10.92 9.52 41.2 43.06 8.75
2 1/2 65 73.8 15.08 8.76 7.67 41.2 64.2 7.00
3 80 89.8 15.08 9.50 8.30 57.2 7.68
Size Chart Of ASTM A105 Pipe Fittings
Normal Size Of Pipe Minimum Length
of Thread
(OD)
of Band
D
Center to End
A
Minimum
Wall Thickness
Type B Type J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1 ¼ 17 18 56 44 3.89
1 ½ 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2 ½ 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55



ASTM A105 / A105N Carbon Steel Forged Fittings Available Types:

Carbon Steel Forged Pipe Fittings

Carbon Steel High Pressure Forged Fittings

Carbon Steel A105 Socket Weld Fittings

Carbon Steel ASTM A105 Threaded Fittings

Carbon Steel A105N Socket Weld 90 Deg Elbow

Carbon Steel Threaded 90 Deg Elbow

Carbon Steel Socket Weld 45 Degree Elbow Suppliers

ANSI Carbon Steel Screwed 45 Degree Elbow

Carbon Steel A105N Forged Tee Dealer

Carbon Steel Threaded Tee Exporter

Carbon Steel Socket Weld Cross Stockholder

Steel A105N Threaded / Screwed Cross Distributors

Carbon Steel A105 Socket Weld Half Coupling

Carbon Steel Threaded Half Coupling Manufacturer

Carbon Steel ASTM A105 Full Coupling

Carbon Steel Coupling

Carbon Steel Carbon Steel Socket Weld Cap

Carbon Steel A105 Screwed Cap

ANSI B16.11 Carbon Steel Socket Weld Union

Carbon Steel Threaded / Screwed Union Stockist

ASTM A105 Carbon Steel Screwed Hex Plug

ASME SA105 Carbon Steel Square Plug

Carbon Steel Reducing Tee

ASTM A105 Carbon Steel Threaded / Screwed Bushing

A105 Carbon Steel Hex Nipples

ASME SA105N Carbon Steel Swage Nipple

Steel A105 Threaded Street Elbow

Carbon Steel Threaded / Screwed Pipe Nipple

Carbon Steel Socket weld Unequal Tee

Carbon Steel ASME B16.11 Threaded Unequal Tee
