COPPER NICKEL BELLED FITTINGS Manufacturer & Supplier
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now

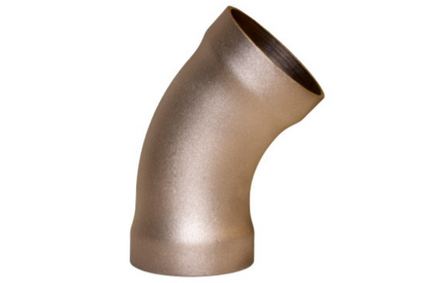

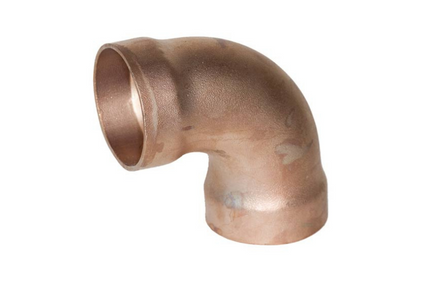

Cuni Bell End Fittings

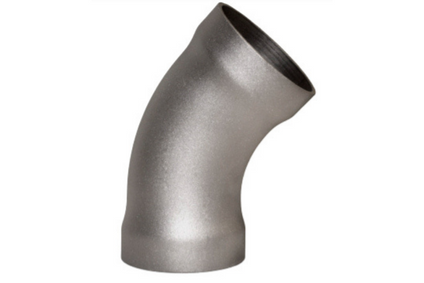

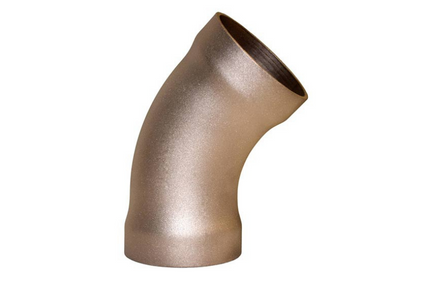

Copper Nickel Belled End Fittings

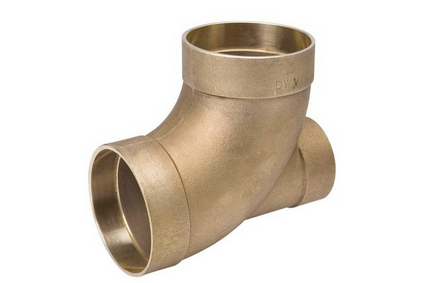

MSS SP-119 Belled End Fittings
MSS SP-119 Cuni Bell end fittings Manufacturer
90-10 CUNI BELLED END FITTINGS, 70-30 COPPER NICKEL BELL END FITTINGS SUPPLIER, CUPRO NICKEL BELLED END FITTINGS EXPORTER IN INDIA
Detailed Information
Prashaant Steel & Alloys is one of the most prominent manufacturers and suppliers of Copper Nickel UNS C71500 Pipe Fittings. Our 70/ 30 Pipe Fittings are of eight types Copper-Nickel 70/ 30 Elbow Fittings, Copper Nickel 70/ 30 Return Bend Fittings, Copper Nickel 70/ 30 Pipe Cross Fittings, Copper Nickel 70/ 30 Cap Pipe Fittings Copper-Nickel 70/ 30 Tee Pipe Fittings, Copper Nickel 70/ 30 Stub Ends Pipe Fittings, Copper Nickel 70/ 30 Pipe Reducer Fittings, Copper Nickel 70/ 30 Pipe Coupling.
Our Cupro Nickel UNS C71500 70/30 Buttweld Pipe Fittings is renowned for its big and strong widespread resistance to seawater. Due to eminent alloy absorption, these Copper Nickel 70/30 Pipe Fittings are extensively used as the connectors for piping systems in the power generation and shipbuilding industry. Our Copper Nickel 70/30 Pipe Fittings customized, and non-customized Copper Nickel 70/30 Buttweld Fittings are manufactured with technologically advanced and superior machinery and under their supervision. Copper Nickel 70/30 is an excellent combination of copper and nickel, which adds its properties and makes the product durable and robust. It has good mechanical strength, excellent toughness, has resistance to erosion, has high tensile strength, very high resistance to corrosion, pitting and oxidation resistance, resistance to stress corrosion cracking and crevice corrosion cracking, it holds itself at high temperatures, has excellent sustainability, formability, weldability and many more.
WE are committed to delivering a great degree of quality, as well as standard in prime goods and services for challenging industries. Our customers are our priority, and we guarantee their satisfaction. Each piece of Pipe Fittings is fully tested by professionals according to international standards. Also available at the best possible rates in the market.
Copper Nickel Belled Fittings Manufacturer & Supplier By Prashaant Steel & Alloys in India. These fittings can be used in place of Cuni buttweld fittings. These MSS SP-119 Belled End Fittings are in high demand because they are easy to weld, set up quickly, and make a strong connection without the need for x-rays. Prashaant Steel and Alloys makes and sells copper nickel 90-10 Cuni and copper nickel 70-30 Cuni Bell end fittings. Because less time is needed to prepare the weld, Cupro Nickel Belled end fittings take much less time to put into a pipe system. Also, because these 70-30 copper nickel Bell End fittings and 90-10 copper nickel belled end fittings need less welding, you don’t have to bevel the connections on-site before welding. Which will save you time and money. These Cuni Bell end fittings help deal with small misalignments in the piping system without causing damage to the joints. Since 1990, we have been the leading manufacturer and exporter of high-quality Cupro Nickel Bell end fittings. We have made a name for ourselves in this tough field by putting our clients’ needs first.
Copper Nickel Belled End Fittings Specifications
| Copper Nickel Belled End Fittings | |
|---|---|
| Belled End Class | 200 |
| Standard | NAVSEA DWG 802-5959353 / MSS-SP-119 |
| Material | CUNI 90/10 & 70/30 |
| Types | 45° ELBOW TEE CONCENTRIC REDUCER 90° ELBOW – SHORT RADIUS 90° ELBOW – STREET SHORT RADIUS STREET CONCENTRIC REDUCER 90° ELBOW – LONG RADIUS 90° ELBOW – STREET LONG RADIUS |
| Nominal Pipe Size (INCHES) | 1 /4 through 12 |
| Maximum Working Pressure (LB/IN²) | 200 |
| Maximum Temperature ( °F ) | 150 |
Copper Nickel Belled End Elbow Manufacturer
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)
90/10 CUNI Belled End Elbow (ALLOY C70600)
70/30 CUNI Belled End Elbow (ALLOY C71500)

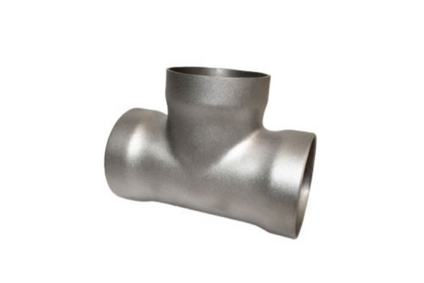

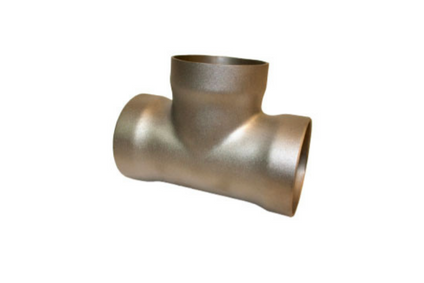

Copper Nickel Belled End Tee Exporter in India
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)
90/10 CUNI Belled End Elbow (ALLOY C70600)
70/30 CUNI Belled End Elbow (ALLOY C71500)
CUNI Concentric Reducer Belled End Manufacturers
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)

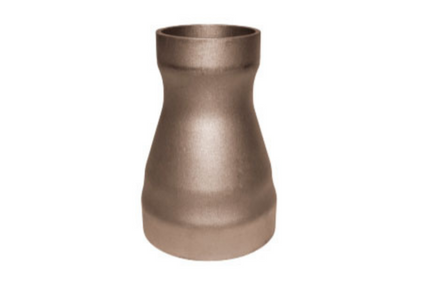

90/10 CUNI Belled End Reducer (ALLOY C70600)

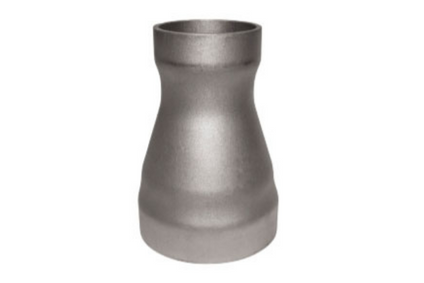

70/30 CUNI Belled End Reducer (ALLOY C71500)
90° CUNI Elbow Short Radius Belled End Suppliers
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)

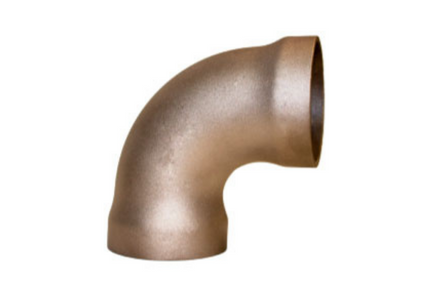

90/10 CUNI Belled End Elbow (SR) (ALLOY C70600)

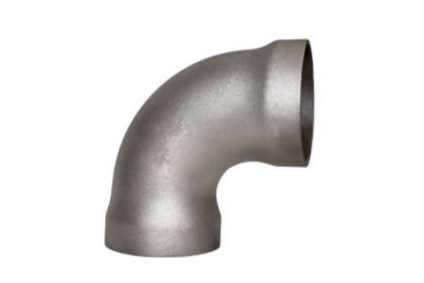

70/30 CUNI Belled End Reducer (ALLOY C71500)

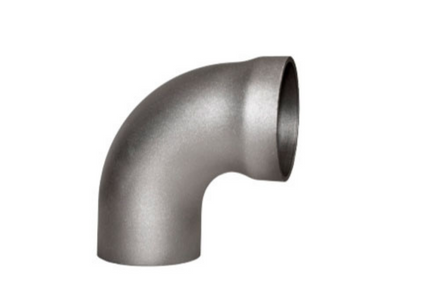

Cupro Nickel Street Short Radius 90° Elbow Belled End Exporters
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG) , PLAIN X BELLED END

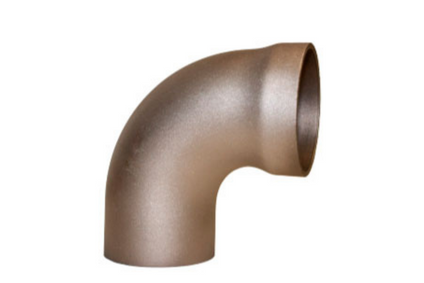

90/10 CUNI Belled End Elbow (SR) (ALLOY C70600)
70/30 CUNI Belled End Reducer (ALLOY C71500)
Copper Nickel Street Concentric Reducer Belled End Manufacturer
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)

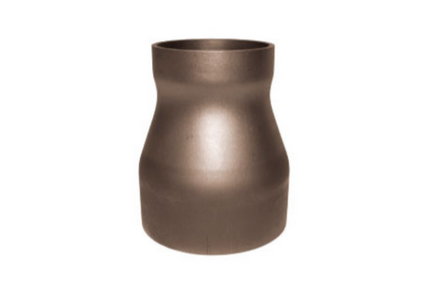

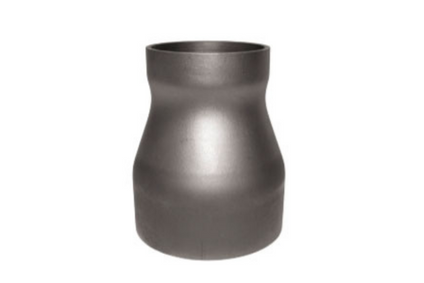

90/10 CUNI Belled End Street Reducer (Con.) (ALLOY C70600)
70/30 CUNI Belled End Reducer (ALLOY C71500)
CUNI 90° Elbow Long Radius Belled End Manufacturers
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)
90/10 90° CUNI Belled End Elbow (LR) (ALLOY C70600)

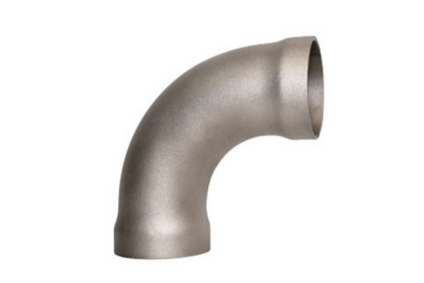

70/30 90° CUNI Belled End Elbow (LR) (ALLOY C71500)
CUNI Street Long Radius 90° Elbow Belled End at best Price
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)

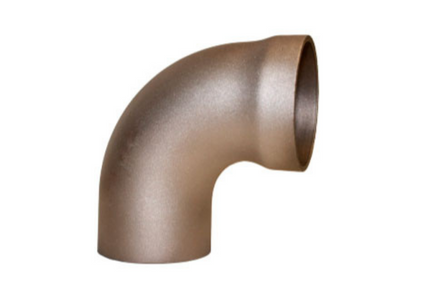

90/10 CUNI Belled End Street Elbow (LR) (ALLOY C70600)

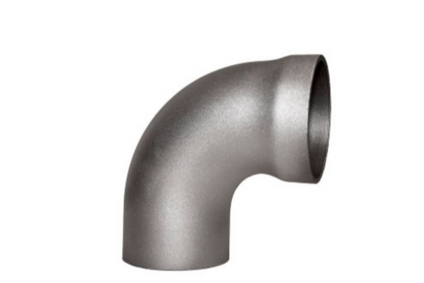

70/30 CUNI Belled End Street Elbow (LR) (ALLOY C71500)

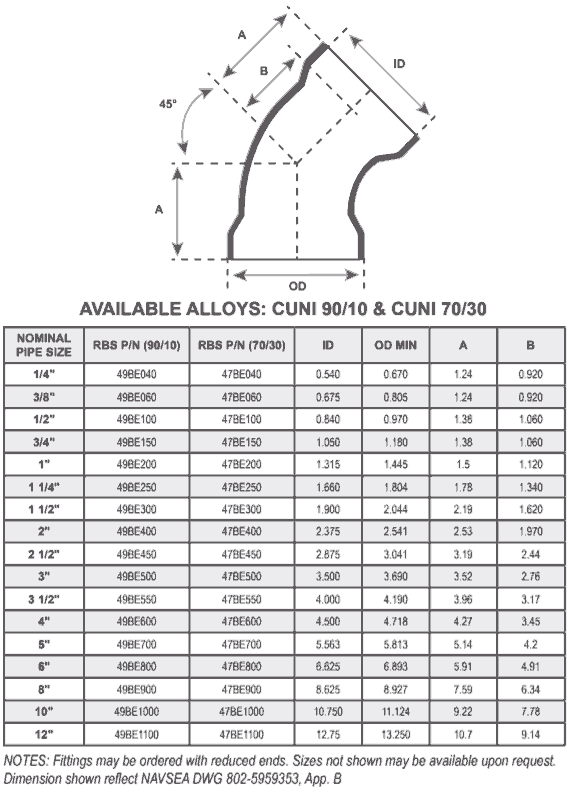

Copper Nickel Belled End Elbow Dimensions

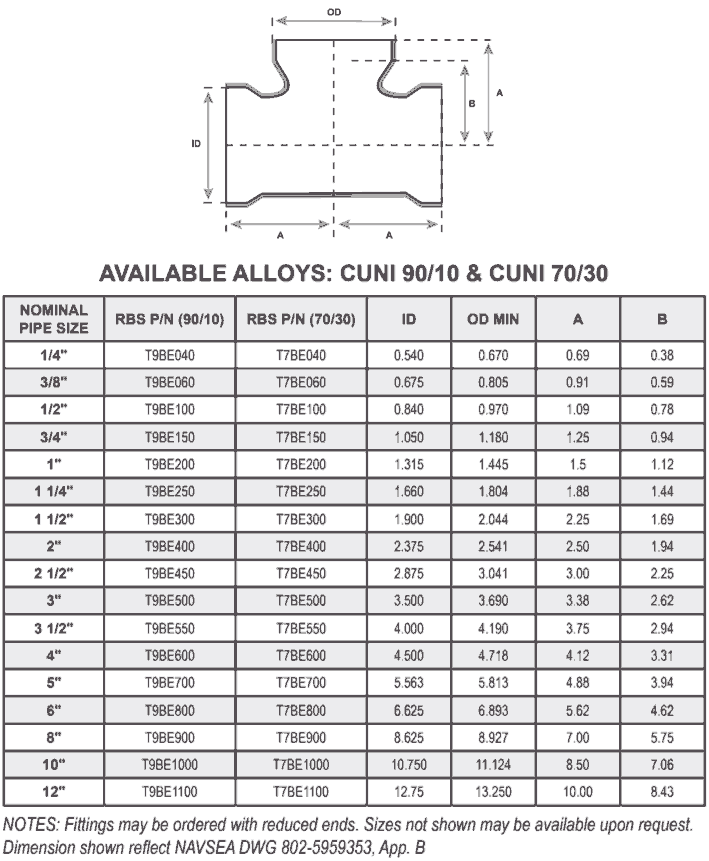

Cupro Nickel Belled End Tee Dimensions
SERVICE RATING TABLE
| Nominal Pipe Size (INCHES) | Maximum Working Pressure (LB/IN²) | Maximum Temperature (°F ) |
|---|---|---|
| 1 /4 through 12 | 200 | 150 |
Specification: DWG 802-5959353 / MSS-SP-119 Pressure Rating: 200 PSIG (WOG)
Intended for use with Class 200 Copper Nickel Tube IAW MIL-T-16420
Available CUNI Belled End Elbow: CUNI 90/10 & CUNI 70/30
Types of Belled End Fittings
| Elbows | Reducers |
| Long Radius 90° | Concentric |
| Long Radius 90° Street | Concentric Street |
| Long Radius 45° | Eccentric |
| Long Radius 45° Street | Caps, Belled Ends |
| Short Radius 90° | Couplings |
| Short Radius 90° Street | |
| Tees | |
| Straight | |
| Reducing | |
| Straight Thermowell | |
| Angle Thermowell |
