Cotter Pin Manufacturer in India
Locking Split Pin are manufactured as per DIN 94
Prashaant Steel & Alloys is a leading producer of Cotter Pin and a high-calibre retailer. A plain washer (or ‘flat washer’) is a flat annular or ring, often of metal, used to spread the load of a screwed fastening. Additionally, a plain washer may be used when the hole is a larger diameter than the fixing nut. Plain washers, which spread a load, and prevent damage to the surface being fixed, or provide some sort of insulation such as electrical. Washers are usually metal High quality bolted joints require hardened steel washers to prevent the loss of preload after the torque is applied. A cotter pin, as a split pin or cotter key is a metal fastener with two tines that are bent during installation, similar to a staple or rivet. Typically made of thick wire with a half-circular cross section, split pins come in multiple sizes and types.
There are signs that manufacturers and stockists are increasingly listing both names cotter pin and split pin together to avoid confusion; this led to the term split cotter sometimes being used for a split pin. We manufacture cotter pins in 5/64” to 5/8″ & 2 to 16mm diameter. We also manufacture cotter-pins in BRASS, COPPER, BRONZE, AND STAINLESS STEEL materials as well as per standards DIN 94, ISO 1234 , BS 1574, etc.
Table of content
- Cotter Pin Specification
- Types of Metric Cotter Pins
- Cotter Pins VS Split Pins
- Split Pins Sizes
- Dimensions of Self Locking Cotter Pin
- Cotter Pin Price List
- Long Cotter Pins Chemical Composition
- Split Cotter Pin Mechanical Properties
- Weight Chart of Heavy Duty Cotter Pins
- Metric Cotter Pins Applications
Metric cotter pins are stocked in diameters 1mm to 13mm
| Cotter Pins Sizes | Split Pins Width | Heavy Duty Cotter Pins Length |
|---|---|---|
|
|
|
| Long Cotter Pins Shape | R Cotter Pin Material | Metric Cotter Pins Standard |
|
|
|
| Small Cotter Pins Specifications | Origin of Cotter Pin Temperature Range | Purpose of Cotter Pin Packaging |
|
|
|
| Cotter Pin Types | Self Locking Cotter Pin Head Type | Split Cotter Pin Benefits |
|
|
|
| Origin of Cotter Pin Finishes | ||
|

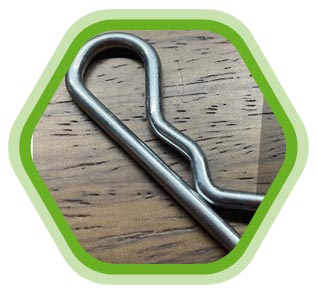

Cotter Pin
Split Pins
Locking Cotter Pin

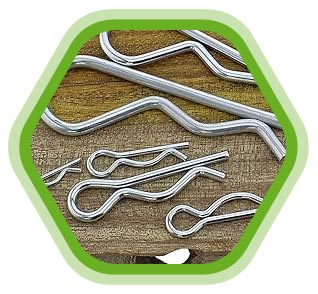

Small Cotter Pins

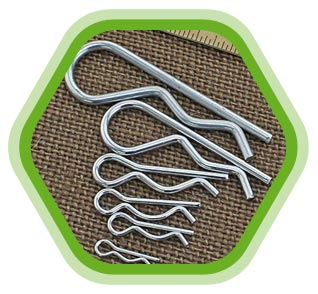

Large Cotter Pin

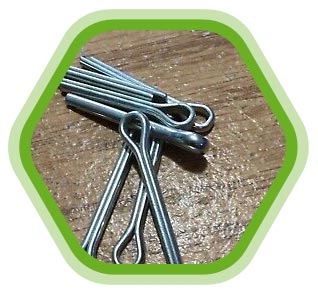

Metric Cotter Pins

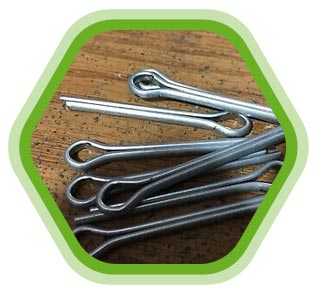

Heavy Duty Cotter Pins
Long Cotter Pins
Self Locking Cotter Pin
Self locking cotter pin are inserted in components to be secured
| Feature | Cotter Pins | Split Pins |
|---|---|---|
| known | they are called as cotter keys | they are known as split cotter pins |
| Design | Cotter Pins are Straight | Split pins have split ends for bending |
| Variations | Available in all materials and sizes | accessible in different sizes and shapes |
| Material | stainless steel and brass | steel and aluminum |
| Applications | construction , automotive and machinery | electronics, and mechanical applications, more.. |
Check Heavy duty cotter pins dimensions and sizes
| Sizes (nom.) | b ≈ | d1 (min.) | d1 (max.) | a (max.) | c (max.) | c (min.) |
|---|---|---|---|---|---|---|
| 13.0mm | 26.0mm | 12.1mm | 12.4mm | 6.3mm | 24.8mm | 21.7mm |
| 1.0mm | 3.0mm | 0.8mm | 0.9mm | 1.7mm | 1.8mm | 1.6mm |
| 6.3mm | 12.6mm | 5.7mm | 5.9mm | 4.0mm | 11.8mm | 10.3mm |
| 1.2mm | 3.0m | 0.9mm | 1.0mm | 2.5mm | 2.0mm | 1.7mm |
| 8.0mm | 16.0mm | 7.3mm | 7.5mm | 4.0mm | 15.0mm | 13.1mm |
| 1.6mm | 3.2mm | 1.3mm | 1.4mm | 2.5mm | 2.8mm | 2.4mm |
| 4.0mm | 8.0mm | 3.5mm | 3.7mm | 4.0mm | 7.4mm | 6.5mm |
| 2.0mm | 4.0mm | 1.7mm | 1.8mm | 2.5mm | 3.6mm | 3.2mm |
| 5.0mm | 10.0mm | 4.4m | 4.6mm | 4.0mm | 9.2mm | 8.0mm |
| 2.5mm | 5.0mm | 2.1mm | 2.3mm | 2.5mm | 4.6mm | 4.0mm |
| 10.0mm | 20.0mm | 9.3mm | 9.5mm | 6.3mm | 19.0mm | 16.6mm |
| 3.2mm | 6.4mm | 2.7mm | 2.9mm | 3.2mm | 5.8mm | 5.1mm |
Dimensions of Self Locking Cotter Pin
| length (inch)A | diameter (inch)B | Net weight (LBS) |
|---|---|---|
| 6 5/16 | 5/8 | 0.35 |
| 1 13/32 | 3/16 | 0.01 |
| 25/32 | 3/32 | 0.00 |
| 2 15/32 | 5/16 | 0.06 |
| 1 1/4 | 5/32 | 0.01 |
| 3 5/32 | 5/16 | 0.10 |
| 1 25/32 | 1/4 | 0.03 |
| 3 17/32 | 13/32 | 0.13 |
| 2 25/32 | 13/32 | 0.11 |
| 4 23/32 | 13/32 | 0.10 |
| 3 15/16 | 13/32 | 0.15 |
| 6 5/16 | 15/32 | 0.15 |
| 5 1/2 | 15/32 | 0.15 |
| 4 11/32 | 1/2 | 0.27 |
| 7 3/32 | 15/32 | 0.15 |
One of the leading large cotter pin supplier in India
| Price list | Price in USD | Price in UAE Dirham |
|---|---|---|
| Cotter Pin Size: 3/64 in | USD $ 18.92 | 22.81 UAE Dirham per kg |
| Cotter Pin Size: 1/16 in dia | USD $ 3.95 | 22.15 UAE Dirham per kg |
Long Cotter Pins Chemical Composition
| Grade | USA Grade | Material designation | Material no. | Ni % |
C % |
Mo % |
Si ≤ % |
Cr % |
Mn ≤ % |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A 2 | 304 | X 2 Cr Ni 1811 | 1.4306 | 10 to 12.0 |
≤ 0.03 |
– | 1.0 | 18.0 to 20.0 |
2.0 | ||||||
| X 8 Cr Ni 19/10 | 1.4303 | 11.0 to 13.0 |
≤ 0.07 |
– | 1.0 | 17.0 to 19.0 |
2.0 | ||||||||
| X 5Cr Ni 1810 | 1.4301 | 8.0 to 10.5 |
≤ 0.07 |
– | 1.0 | 17.5 to 19.5 |
2.0 | ||||||||
| A 4 | 316 | X 5 Cr Ni Mo 1712 | 1.4401 | 10.0 to 13.0 |
≤ 0.07 |
2.0 to 2.5 |
1.0 | 16.5 to 18.5 |
2.0 | ||||||
| X 2 Cr Ni Mo 1712 | 1.4404 | 10 to 13 |
≤ 0.03 |
2.0 to 2.5 |
1.0 | 16.5 to 18.5 |
2.0 | ||||||||
Split Cotter Pin Mechanical Properties
| Steel group | Strength class | Steel grade | Pins | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Tensile strength N/mm2 | Tensile strength PSI | Nut Load N/mm2 | Dia range | ||||||
| Austenitic | 50 | A2 and A4 | 500 | 70,000 | 500 | <=M39 | |||
| 80 | 700 | 1,18,000 | 800 | <=M20 | |||||
| 70 | 800 | 1,00,000 | 700 | <=M20 | |||||
Weight Chart of Heavy Duty Cotter Pins
| Diameter | M13 | M1 | M6.3 | M1.6 | M10 | M8 | M2 | M5 | M2.5 | M4 | M3.2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | |||||||||||
| 6 | 0.03 | ||||||||||
| 8 | 0.04 | 0.10 | |||||||||
| 10 | 0.05 | 0.12 | 0.25 | ||||||||
| 12 | 0.06 | 0.14 | 0.28 | 0.51 | |||||||
| 14 | 0.07 | 0.16 | 0.31 | 0.57 | |||||||
| 16 | 0.08 | 0.18 | 0.34 | 0.63 | |||||||
| 18 | 0.10 | 0.20 | 0.37 | 0.69 | 1.00 | ||||||
| 20 | 0.22 | 0.40 | 3.49 | 0.75 | 2.16 | 1.09 | |||||
| 22 | 0.24 | 0.43 | 3.74 | 0.81 | 2.28 | 1.18 | |||||
| 25 | 0.27 | 0.47 | 4.00 | 0.90 | 2.52 | 1.31 | |||||
| 28 | 8.04 | 0.30 | 0.51 | 4.49 | 0.98 | 2.76 | 1.45 | ||||
| 32 | 8.90 | 0.34 | 0.56 | 5.00 | 1.10 | 3.07 | 1.64 | ||||
| 36 | 9.76 | 15.9 | 0.61 | 5.49 | 1.22 | 3.39 | 1.80 | ||||
| 40 | 10.60 | 17.2 | 0.66 | 6.00 | 1.34 | 3.71 | 2.00 | ||||
| 45 | 11.70 | 18.9 | 6.61 | 1.49 | 4.11 | 2.17 | |||||
| 50 | 12.80 | 20.6 | 7.24 | 1.64 | 4.51 | 2.43 | |||||
| 56 | 69.5 | 14.00 | 38.0 | 22.6 | 8.00 | 5.00 | 2.70 | ||||
| 63 | 76.0 | 15.60 | 41.8 | 25.0 | 8.67 | 5.55 | 3.02 | ||||
| 71 | 83.4 | 17.30 | 46.2 | 27.7 | 9.86 | 6.20 | 3.38 | ||||
| 80 | 91.8 | 19.20 | 51.2 | 30.7 | 11.00 | 6.91 | 3.78 | ||||
| 90 | 101.0 | 21.30 | 56.7 | 34.1 | 12.20 | 7.71 | |||||
| 100 | 111.0 | 23.50 | 62.2 | 37.5 | 13.50 | 8.51 | |||||
| 112 | 122.0 | 26.10 | 66.0 | 41.5 | 15.00 | 9.46 | |||||
| 125 | 134.0 | 28.90 | 75.9 | 45.9 | 16.60 | 10.50 | |||||
| 140 | 148.0 | 32.10 | 84.2 | 51.0 |
