Manufacturer & Supplier of DIN 934 Hex Head Nuts, ISO 4032 Metric Thread DIN 934 Hexagon Head Nuts, ISO 4032 Hex Head Nuts as per custom specification in Mumbai, India
DIN 934 Brass Head Nut, ISO 4032 Stainless Steel DIN 934 Hex Head Nuts, ISO 4032 / DIN 934 Carbon Steel Hex Head Nuts, DIN 934 Alloy Steel ISO 4032 Hex Head Nuts, Nickel Alloy Hex Head Nuts DIN 934 Exporter & Stockist
Detailed Information
Prashaant Steel & Alloys specializes in manufacturing large caliber ISO 4032 Nut. Among others, the ISO 4032 Nut we make are common thanks to their superlative quality. At Prashaant Steel & Alloys Building, we are a well-equipped manufacturing facility with state-of-the-art technologies that enable us to produce industry-appreciated ISO 4032 Nut. At Prashaant Steel & Alloys, we believe in consumer service and so we aim to fulfill our customers’ price and quantity demands and aspirations. Our massive inventory helps deliver bulk orders to our customers in no time. We market our products to various countries around the world and store our ISO 4032 Nut in appropriate wooden boxes to avoid any damage to our product while shipping. We also include all the documents you require with our packaging. Some of the documents that we provide with our ISO 4032 Nut are raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc.
ISO 4032 Nut standard specifies requirement for M 1 to M 160 hexagon nuts. Hex Nut ISO 403 with metric coarse and fine pitch thread Product class A and B. ISO 4032 DIN 934 standard specifies requirements for M1 to M160 hexagon nuts, assigned to product A grade i.e. up to M 16 size or product B grade product for size above M 16. Hexagon Nut ISO 4032 is the most common standard for metric hex nuts useful in many applications where a metric is required.
Being world’s leading fastener manufacturer and supplier, we supply metric thread DIN 934 / ISO 4032 hexagon head nuts with a diameter ranging from M1.6 to M42 which are precisely engineered, accurate dimensions and vigorous design. Also, we offer low cost, high-quality hex head nuts in various materials such as nickel alloy, stainless steel, carbon steel, alloy steel, brass, and Aluminium in accordance with various national and international standards.
Standard Specification Of ISO 4032 Nuts
|
ISO 4032 DIN 934 Nut Size Metric |
|
|
ISO 4032 Hex Nut Size Inch |
|
|
Direction of Thread |
Right hand |
|
Height of ISO 4032 Nuts |
|
|
ISO 4032 Nuts Sizes |
Manufacturing M2, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M45, M48 to M160 and Custom Metric ISO 4032 Nut |
|
Material Origin |
ISO 4032 Nut are Western European. Eastern origin possible on request. |
|
ISO 4032 Nuts Surface Finish & Coating |
All ISO 4032 DIN 934 Nuts surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE. |
ISO 4032 Nut Product Grades A And B
| Thread D | M1,6 | M2 | M2,5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
| Pᵃ | 0,35 | 0,40 | 0,45 | 0,50 | 0,70 | 0,80 | 1,00 | 1,25 | 1,50 | 1,75 | |
| c | max | 0,20 | 0,20 | 0,30 | 0,40 | 0,40 | 0,50 | 0,50 | 0,60 | 0,60 | 0,60 |
| min | 0,10 | 0,10 | 0,10 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | |
| dₐ | max | 1,84 | 2,30 | 2,90 | 3,45 | 4,60 | 5,75 | 6,75 | 8,75 | 10,80 | 13,00 |
| min | 1,60 | 2,00 | 2,50 | 3,00 | 4,00 | 5,00 | 6,00 | 8,00 | 10,00 | 12,00 | |
| dʷ | min | 2,40 | 3,10 | 4,10 | 4,60 | 5,90 | 6,90 | 8,90 | 11,60 | 14,60 | 16,60 |
| e | min | 3,41 | 4,32 | 5,45 | 6,01 | 7,66 | 8,79 | 11,05 | 14,38 | 17,77 | 20,03 |
| m | max | 1,30 | 1,60 | 2,00 | 2,40 | 3,20 | 4,70 | 5,20 | 6,80 | 8,40 | 10,80 |
| min | 1,05 | 1,35 | 1,75 | 2,15 | 2,90 | 4,40 | 4,90 | 6,44 | 8,04 | 10,37 | |
| mʷ | min | 0,80 | 1,10 | 1,40 | 1,70 | 2,30 | 3,50 | 3,90 | 5,20 | 6,40 | 8,30 |
| s | nom. = min. | 3,20 | 4,00 | 5,00 | 5,50 | 7,00 | 8,00 | 10,00 | 13,00 | 16,00 | 18,00 |
| min. | 3,02 | 3,82 | 4,82 | 5,32 | 6,78 | 7,78 | 9,78 | 12,73 | 15,73 | 17,73 | |
ISO 4032 Nuts Application
- ISO 4032 Nuts for Nuclear Energy Sector
- High Strength ISO 4032 Style 1 Hex Nuts for Automotive industry
- ISO 4032 DIN 934 Hex Nut for Offshore & Chemical Industry
- Bs En ISO 4032 Nuts Electrical & Agriculture Industry
- ISO 4032 A4 Nut for Construction
- High quality ISO 4032 A2 Petrochemical Nuts
- ISO 4032 Nut suitable for Off-Shore Oil Drilling
- Large size ISO 4032 Type 1 Nuts for Oil & Gas Industries
- Metric ISO 4032 Hex Nuts for Power Generation
- Heavy duty ISO 4032 DIN 934 Nuts for Heat Exchangers

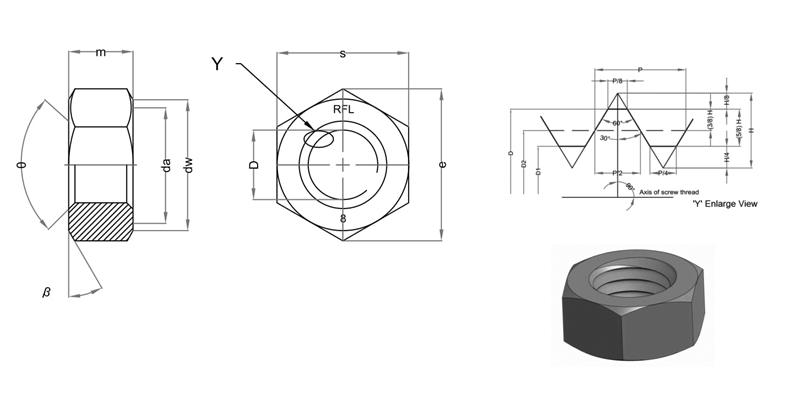

Dimensional Standard of Nut as per ISO 4032
|
S. No. |
Size |
Pitch (p) |
Width across corner (e) |
Width across Flat (s) |
Thickness (m) |
da |
dw |
Major Diameter D |
Pitch Diameter D1 |
Minor Diameter D2 |
|||||
|
|
|
mm |
Min. |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Min. |
Min. |
Max. |
Min. |
Max. |
|
1 |
M-16 |
2.0 |
26.75 |
23.67 |
24 |
14.10 |
14.80 |
16 |
17.30 |
22.50 |
16.00 |
14.70 |
14.93 |
13.84 |
14.21 |
|
2 |
M-18 |
2.5 |
29.56 |
26.16 |
27 |
15.10 |
15.80 |
18 |
19.50 |
24.90 |
18.00 |
16.38 |
16.60 |
15.60 |
15.70 |
|
3 |
M-20 |
2.5 |
32.95 |
29.16 |
30 |
16.90 |
18.00 |
20 |
21.60 |
27.70 |
20.00 |
18.38 |
18.60 |
17.60 |
17.70 |
|
4 |
M-22 |
2.5 |
37.29 |
33.00 |
34 |
18.10 |
19.40 |
22 |
23.70 |
31.40 |
22.00 |
20.38 |
20.60 |
19.60 |
19.70 |
|
5 |
M-24 |
3.0 |
39.55 |
35.00 |
36 |
20.20 |
21.50 |
24 |
25.90 |
33.30 |
24.00 |
22.05 |
22.32 |
20.70 |
20.80 |
|
6 |
M-27 |
3.0 |
45.20 |
40.00 |
41 |
22.50 |
23.80 |
27 |
29.10 |
38.00 |
27.00 |
25.05 |
25.32 |
23.80 |
23.90 |
|
7 |
M30 |
3.5 |
50.85 |
45.00 |
46 |
24.30 |
25.60 |
30 |
32.40 |
42.80 |
30.00 |
27.73 |
28.01 |
26.50 |
26.60 |
|
8 |
M-33 |
3.5 |
55.37 |
49.00 |
50 |
27.40 |
28.70 |
33 |
35.60 |
46.60 |
33.00 |
30.73 |
31.01 |
29.20 |
29.30 |
|
9 |
M-36 |
4.0 |
60.79 |
53.80 |
55 |
29.40 |
31.00 |
36 |
38.90 |
51.10 |
36.00 |
33.40 |
33.70 |
32.10 |
32.20 |
|
10 |
M-39 |
4.0 |
66.44 |
58.80 |
60 |
31.80 |
33.40 |
39 |
42.10 |
55.90 |
39.00 |
36.40 |
36.70 |
35.10 |
35.20 |
|
11 |
M-42 |
4.5 |
71.30 |
63.10 |
65 |
32.40 |
34.00 |
42 |
45.40 |
60.00 |
42.00 |
39.08 |
39.39 |
37.60 |
37.70 |
|
12 |
M-45 |
4.5 |
76.95 |
68.10 |
70 |
34.40 |
36.00 |
45 |
48.60 |
64.70 |
45.00 |
42.08 |
42.39 |
40.90 |
41.00 |
|
13 |
M-48 |
5.0 |
82.60 |
73.10 |
75 |
36.40 |
38.00 |
48 |
51.80 |
69.50 |
48.00 |
44.75 |
45.09 |
43.10 |
43.20 |
|
14 |
M-52 |
5.0 |
88.25 |
78.10 |
80 |
40.40 |
42.00 |
52 |
56.20 |
74.20 |
52.00 |
48.75 |
49.09 |
47.50 |
47.60 |
|
15 |
M-56 |
5.5 |
93.56 |
82.80 |
85 |
43.40 |
45.00 |
56 |
60.50 |
78.70 |
56.00 |
52.43 |
52.78 |
50.80 |
50.90 |
|
16 |
M-60 |
5.5 |
99.21 |
87.80 |
90 |
46.40 |
48.00 |
60 |
64.80 |
83.40 |
60.00 |
56.43 |
56.78 |
54.90 |
55.00 |
|
17 |
M-64 |
6.0 |
104.86 |
92.80 |
95 |
49.10 |
51.00 |
64 |
69.10 |
88.20 |
64.00 |
60.10 |
60.48 |
57.80 |
57.90 |
DIN 934 ISO 4032 Material
- Stainless Steel
- Duplex/ Super Duplex
- Low carbon steel
- Alloy carbon steel
- High Tensile
- Nickel Alloy
- Alloy Steel
- Mild Steel
- Copper
- Titanium
- Brass
- Aluminium
FAQ
What is the difference between ISO 4032 and DIN 934?
The ISO 4032 range is M1. 6 to M64, cutting out diameters below M1. 6 and over M64 that existed in the DIN 934 standard. The height of the nuts is the same up to M4, then begins to differ with the height of the ISO 4032 hex nuts actually being slightly taller than the DIN 934 hex nuts.
What is a hexagonal nut?
A hex nut is one of the most popular fasteners, the shape of a hexagon so has six sides. Hex nuts are made from a number of materials, from steel, and stainless steel to nylon. They can fasten a bolt or screw securely through a threaded hole, the threads tend to be right-handed.
What are hexagon nuts used for?
Used to connect both metal and wood components. Hexagon Nuts are intended to be used in conjunction with screws and bolts to provide secure fastenings into unthreaded holes.
