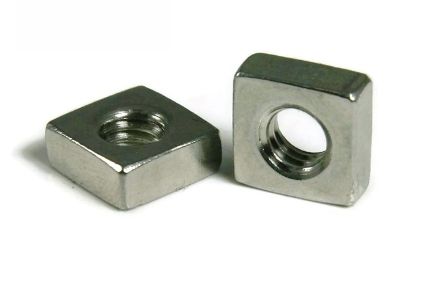

Square nut

Supplies A Full Range Of Union Square Nuts, Metric Stainless Steel Square Nuts At Factory Price In India

Carries A Complete Line Of M4 Flat Square Nuts, A2 Stainless Steel Square Nuts, Stainless Steel Square Weld Nuts In Mumbai, India

Detailed Information

What are square nuts used for?

Most of the time, square nuts are used where there is an inset or channel in the receiving surface, such as in furniture, railroad applications, or other metal assemblies. Because they have more surface area, square nuts are less likely to come loose.

Prashaant Steel & Alloys is a top Square Nut maker and a high-quality store. Square Nuts that we make are very popular in the industry because of how well they resist corrosion. People say that our Square Nut at Prashaant Steel & Alloys are of the highest quality, which is why we only use the best raw materials in the manufacturing process. The Square Nut has a high level of corrosion resistance and oxidation, which means it can be used in a lot of different ways.

Square nuts made of stainless steel are also called four-sided nuts. The sizes of these nuts range from 1 inch to 24 inches.

They are made of different types of high-tensile materials, such as 18-8 stainless steel, A2, A4, and others. There are both metric and imperial sizes. The M6 Square Nut is a metric nut that is used in hardware, car, petrochemical, oil and gas, general engineering, and construction applications. There are different standards for sizes, such as the DIN 557 Square Nut, DIN 934, DIN 982, DIN 936, and others.

The nuts could be made by cold forging, hot forging, or machining. Different ways of making the nuts led to nuts of different sizes. There are Heavy Square Nuts that are made for applications that need to hold more weight. They are also strong when pulled apart. On the metric scale, these can be any size from M2 to MI60. Different kinds of materials are used to make the different kinds of high tensile nuts. The nuts range from 3mm to 200mm in length. The M8 Square Nuts are made of austenitic stainless steel 316, which is very resistant to corrosion from chloride ions. The nuts also have a high tensile strength and can work at high temperatures, up to 870 degrees Celsius. Depending on

Depending on what the application needs are, the SS Square Nut can also come with different types of coatings.

Prashaant Steel & Alloys is a leading producer of Square Nutand a high-calibre retailer. Thanks to their excellent resistivity properties, the Square Nut That we manufacture are extremely popular in the industry. We are considered to have the excellent quality of Square Nutat Prashaant Steel & Alloys, which is why we use the highest quality of the raw materials used in the production processes. The Square Nut Provides outstanding resistance to corrosion and oxidation, which opens its doors to a wide range of applications.

Stainless Steel Square Nuts are also known as four sided nuts. These nuts range from ¼ inches to 24 inches in size. They are made up of different material grades such as 18-8 stainless steel, A2, A4 and other high tensile materials. The sizes can be metric or imperial. The M6 Square Nut is a metric nut that is used in applications such as hardware, automobile, petrochemical, oil and gas, general engineering applications and in constructions. There are different standards to cover the dimensions such as the DIN 557 Square Nut, DIN 934, DIN 982, DIN 936 and others.

The nuts could be made of cold forging, hot forging or through machining. The different production methods made different sizes of the nuts. There are Heavy Square Nuts which are meant for heavier load bearing applications. They have high tensile strengths as well. These can range from M2 through M160 sizes in the metric scale. The different material types used differ for the high tensile nuts. The length of the nuts ranges from 3mm to 200mm. The M8 Square Nuts are made up of 316 austenitic stainless steel which has high corrosion resistance against chloride ion. The nuts also have high tensile strengths and high operating temperatures up to 870 degrees Celsius. Depending on the application requirements, different types of coatings are available for the SS Square Nut as well.

Specification of Square Jam Nuts

Grade

18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Square Nuts

Stainless Steel Square Nuts Size

  • Cold Forging : M2-M24
  • Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg
  • Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg

Stainless Steel Square Nuts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes

DIN standard

DIN 934, DIN 982, DIN 985, DIN 936, DIN 929, DIN 1587, DIN 439, DIN 315

British standards

BS 57

Length

3 mm to 200 mm

Stainless Steel Threads:

Metric, Metric Fine, BSW, UNF, UNC, BA, BSF and BSCY (cycle) threads or as required

Standard:

  • ISO 4035
  • ISO 14585 C ~DIN 7981C
  • DIN 7973 C ~ISO 1483
  • DIN 7983 C ~ISO 7051
  • ANSI B18.3.1M
  • ASME B18.6.3
  • GB/T5782, GB/T5783, GB5783

DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards

ANSI – American National Standards Institute

DIN Standard

B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN 916, DIN 913, DIN 7985

UTS – Unified Thread Standard

UNC, UNF, UNEF, UNS, NPT, NPTF

Dimensions

ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.

Tolerance

+/-0.01mm to +/-0.05mm

Head drive:

Phillips, Slotted, Phillips/Slot, Six-Lobe, etc

Type

Pan/ Round/ Oval/ countersunk/ Truss head

Head

Pan head, flat head, oval head, Square head, phillips head

Finishing:

Zinc (yellow, white, blue, black), black oxide

Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated

Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET

Finish

Per ASTM A380/A380M

Production process

Wire DraSquare, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing

Surface Coating:

  • Ptfe Coated Square Nuts
  • Hot Dipped Galvanizing Square Nuts
  • Phosphate Square Nuts
  • Teflon Square Nuts
  • Xylon Square Nuts
  • Zinc Phosphate Square Nuts
  • Manganese Phosphate
  • Zinc ElectroPlating (Quadrivalent or Trivalent Chrome)
  • ZAC (Zinc Aluminium Flake Coating)
  • Cadmium Square Nuts

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.

Surface treatment

  • Polish
  • Passivation
  • Anodizing
  • Sand blasting
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
  • Black oxide coating
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)

Stainless Steel Square Nuts Packing:

IN BULK: canton, pallet, Small Boxes / carton / pallet, or customer request

Why choose us?

  • Best Price in India and compare to China
  • Professional technical team
  • High precision threads
  • Strong production line
  • Micro Metals will be your reliable partner

Test Certificate:

  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Tensile testing to ISO 898-1
  • Nut proof load testing to ISO 898-2
  • Suitability for preloading to EN 14399-2
  • Suitability test for calibrated preload to EN 14399-10
  • Charpy Impact testing in accordance with ISO 148-1
  • Hardness testing to ISO 6508-1
  • Tri-Roll Thread Comparators
  • Calibrated gauges and tools

Other available material

  • Stainless Steel Square Nuts: SUS201, SUS304, SUS316, SUS410
  • Brass Square Nuts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Square Nuts: C51000, C52100, C54400 etc
  • Aluminum Square Nuts: Al6061, Al6063 etc
  • Aluminum Alloy Square Nuts: Al6061, Al6063 etc
  • Titanium and Titanium Alloy Square Nuts: TAD, TA1-TA8, TB2, TC1-TC10
  • Alloy steel Square Nuts: SCM435, C10B21, C10B33

Uses & application

Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry

Dimensions of Stainless Steel Square Nuts

Nominal or

Basic Major

Diameter of

Thread

F

G

H

Width Across Flats

Width Across Corners

Length

Basic

Max

Min

Max

Min

Basic

Max

Min

1/4

0.2500

7/16

0.438

0.425

0.619

0.554

7/32

0.235

0.203

5/16

0.3125

9/16

0.562

0.547

0.795

0.721

17/64

0.283

0.249

3/8

0.3750

5/8

0.625

0.606

0.884

0.802

21/64

0.346

0.310

7/16

0.4375

3/4

0.750

0.728

1.061

0.970

3/8

0.394

0.356

1/2

0.5000

13/16

0.812

0.788

1.149

1.052

7/16

0.458

0.418

5/8

0.6250

1″

1.000

0.969

1.414

1.300

35/64

0.569

0.525

3/4

0.7500

1-1/8

1.125

1.088

1.591

1.464

21/32

0.680

0.632

7/8

0.8750

1-5/16

1.312

1.269

1.856

1.712

49/64

0.792

0.740

1″

1.0000

1-1/2

1.500

1.450

2.121

1.961

7/8

0.903

0.847

1-1/4

1.2500

1-7/8

1.875

1.812

2.652

2.458

1-3/32

1.126

1.062

1-1/2

1.5000

2-1/4

2.250

2.175

3.182

2.956

1-5/16

1.348

1.

M6 Square Nut Weight Chart

Size

Finished Hex

Heavy Hex

Finished Jam

Heavy Hex Jam

Square

Heavy Square

1/2″

3.750

6.540

2.620

4.000

5.780

7.870

5/8″

7.330

11.900

4.930

6.960

10.800

14.300

3/4″

11.900

19.300

7.700

11.000

15.400

23.500

7/8″

19.000

29.700

12.000

16.700

24.500

36.200

1″

28.300

42.500

17.600

23.500

36.300

51.500

1-1/8″

40.300

59.200

24.700

32.400

52.500

72.400

1-1/4″

54.300

78.600

36.100

45.800

70.600

95.500

1-3/8″

73.000

102.000

47.900

59.300

94.500

125.000

1-1/2″

94.300

131.000

60.900

74.800

122.000

161.000

1-5/8″

162.000

91.600

1-3/4″

151.000

204.000

100.000

114.000

1-7/8″

241.000

134.000

2″

224.000

299.000

140.000

165.000

2-1/4″

419.000

227.000

2-1/2″

564.000

332.000

2-3/4″

738.000

429.000

3″

950.000

545.000

3-1/4″

1194.000

651.000

3-1/2″

1526.000

851.000

3-3/4″

1812.000

1005.000

4″

2180.000

1200.000

FAQ
Why are square nuts used?

Most of the time, square nuts are used where there is an inset or channel in the receiving surface, such as in furniture, railroad applications, or other metal assemblies. Because they have more surface area, square nuts are less likely to come loose.

What are square bolts called?

Before hex head bolts became the norm, square head bolts (also called square bolts) were the standard. Now, they are often chosen for their looks, either to give a new building a rustic look or to match fasteners on an old building.
