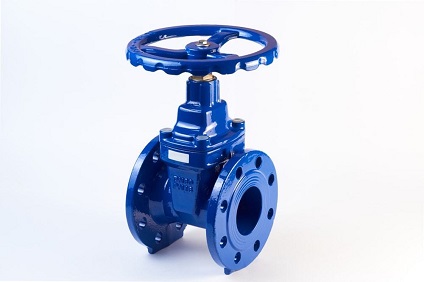

Gate Valve

Gate valve manufacturers in India, forged steel gate valve Suppliers in India, gate valve 3 inches, gate valve 40mm, gate valve 4 inch, gate valve 50mm, 150 mm gate valve price, 50mm gate valve price, flanged gate valve, flanged gate valve Price.

Stainless Steel Gate Valves, SS Gate Valves, Carbon Steel Gate Valves, Alloy Steel Gate Valves, Super Duplex Steel Gate Valves Manufacturer, Steel Gate Valves, Alloy 20 Gate Valves, SMO 254 Gate Valves, Industrial Gate Valves Supplier in Mumbai India.

Detailed Information

Gate Valves is a leading producer and retailer of Prashaant Steel & Alloys. We manufacture Gate Valves at our gigantic factory using modern machinery and the latest technologies. Only high quality gate Valves are obtained from Prashaant Steel & Alloys. Therefore, our diverse inventory utilizes the highest quality of raw materials available. The Gate Valves we make have a strong foundation and exhibit outstanding characteristics. We produce the Gate Valves in a variety of styles and sizes suitable for use in many industries. We also take custom orders from our customers that produce the  Gate Valves, according to their demand and needs. At Prashaant Steel & Alloys, we are focused on offering our best to our customers, and we use the highest quality raw materials to manufacture Gate Valves. Thanks to the incredible resistant properties we have, these Gate Valves are commonly used in various applications.

Gate Valves are widely used in fluid-handling systems for flow control, Typical gate valves are designed to be fully opened or closed. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low friction loss.

A Gate Valve, also known as a sluice valve, is a valve which opens by lifting a round or rectangular gate/wedge out of the path of the fluid. Gate Valves are mainly designed to start or stop flow, and when minimum flow restrictions are needed. In working, these Valves generally are either fully opened or fully closed.

Gate Valves are widely used for all types of applications and are suitable for both above ground and underground installation. not least for underground installations it is paramount to choose the right type of Valves to avoid high replacement costs.

Specification of Gate Valve:

Specifications : ASTM, ASME

Standard : Generally conforming to BS 5352 End Connection

Range: ½” to 24”

Trims: stellited, 316, 304, Monel, Ali bronze, duplex

Pressure Rating : ANSI – 150#, 300#, 400#, 600#, 900#, 1500#, 2500#

End Connections :Screwed Ends to BSP / BSPT/ NPT (F) Socket Weld Ends to ANSI B 16.11 Inspection

Type : OS & Y, Bolted/ Pressure Seal

Gasket& Packing : Optional PTFE/ Graphite/ Asbestos/ Spiral wound/ Ring joint

Wedge: Solid/ Flexible/ Dual Disc

Seat : Integral/ Renewable/ Seal welded

Quality : Highest standard in Visual, Materials, Dimensional Accuracy, Operation, Leak-tightness,

Operation : Hand wheel/ Manual gear/ Electric motor Actuator – Smooth, Easy, Low-Torque, Long life

Testing: Each valve is 100% tested on Nitrogen medium to ensure leak-tightness at Shell, Seat and Gland

Advantages

Disadvantages

Available in large sizes

Low pressure limitations

Can be used with slurries and viscous liquids

Slow open and close time

Used as a shut off valve

Erosion of the seat and disk can occur

Easy to maintain and disassemble

Poor throttling characteristics

Inexpensive

Difficult to repair

Inherently fire-safe (when used with a metal sheet)

Should not be used in sanitary applications

Bidirectional



Types of Valves:

  • Slab Gate Valves
  • Parallel Slide Gate Valves
  • Knife Gate Valves
  • Parallel Expanding Gate Valves
