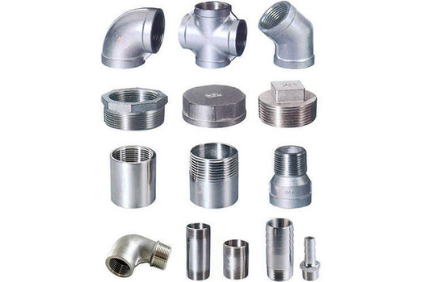

Screwed Fittings Manufacturer
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
Stainless Steel Screwed 90° & 45° Elbows, Screwed Threaded Fittings, Alloy Steel Threaded Coupling, Duplex Steel Forged Screwed Cross Manufacturer.
Screwed Fittings Stockists, Carbon Steel Forged Screwed Tee Supplier, Nickel Alloy Forged Screwed Cap Stockiest, Copper Alloy Steel Threaded Bushing, SS Screwed Plug Exporter.
Detailed Information
Screwed Fittings are a type of pipe fitting that is used to connect and install the bores of two or more tubes or pipe fittings. As a result, these fittings are screwed together to connect or combine piping systems. These fittings aid in the regulation, modification, and measurement of fluid flow. Furthermore, these close or seal the pipes to prevent leaking. These fittings are tapering groves carved into the ends of the run pipe that may be readily stacked without the use of any other permanent attachments or welding. The fittings are available in male and female versions. External threads on male fittings are screwed into the pipe end. Female fittings, on the other hand, ensure internal thread and are either screwed inside or outside the pipe end.
The fittings are made of a variety of materials that provide outstanding resistance. It also has exceptional formability, durability, and workability. These fittings have a high tensile strength and are anti-corrosive. It also exhibits high resistance to pitting, crevice corrosion, and stress corrosion cracking in a hostile environment. These fittings are known for their exceptional dimensional precision and low maintenance requirements.
Screwed Fittings are available from top and reputable manufacturing businesses all around the world. As a result, they supply a high-quality standard product to their valued customers in a variety of sizes, shapes, lengths, and thicknesses to meet their needs. The makers obtain top-notch quality raw material from certified vendors for the production procedure. In the manufacturing unit, on the other hand, cutting-edge technology and equipment are installed to ensure that the product meets worldwide standards. Several stringent tests and quality checks are required at various stages of manufacture to assure the quality and strength of the fittings. Flaring test, hardness test, micro/macro test, PMI test, chemical analysis, IGC test, pitting resistance test, and many others are examples of such tests.
Standard specifications of Screwed-Threaded Fittings:
Dimensions : MSS SP-95, BS 3799, ASME 16.11, 83, MSS SP-79, 97, 95
Pressure class : 4500 LBS, 6000 LBS, and 3000 LBS
Forms: Union female/male, union
Size : 1/8”NB-4” NB
Reducer Pipe Fittings Material & Grades:
|
Stainless Steel Reducer : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L |
|
Alloy Steel Reducer : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91 |
|
Carbon Steel Reducer : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 |
|
Duplex & Super Duplex Steel Reducer : ASTM A815, ASME SA815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
|
Nickel Alloy Reducer : ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 ( Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276) |
|
Copper Nickel Reducer : CuNi10Fe1Mn, CuNi30Mn1Fe. |
Screwed Fittings Weight Chart
| SIZE | A | B | QTY | WEIGHT |
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Types of Screwed Fittings :
|
» |
Forged 90 Deg Screwed Elbow |
|
» |
Forged 45 Deg Screwed Elbow |
|
» |
Forged Screwed Equal Tee |
|
» |
Forged Screwed Unequal Tee |
|
» |
Forged Screwed Equal Cross |
|
» |
Forged Screwed Unequal Cross |
|
» |
Forged Screwed Half coupling |
|
» |
Forged Screwed Full coupling |
|
» |
Forged Screwed Cap |
|
» |
Forged Screwed Plug |
|
» |
Forged Screwed Bushing |
|
» |
Forged Screwed Hex Nipples |
|
» |
Street Elbows |
|
» |
Welding Boss |
|
» |
Union BS 3799 |
|
» |
Swage Nipple |
