Inconel Products

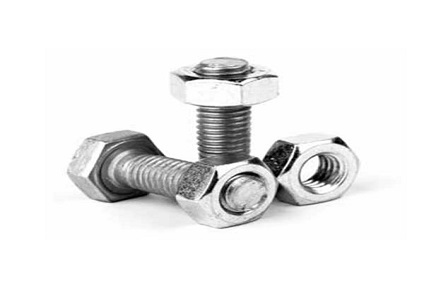

ASTM B166 Inconel 601 Fasteners/ UNS N06601 Fasteners
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Inconel Alloy 601 Fasteners, Inconel 601 Grub Screw, Inconel Alloy 601 Heavy Hex Nuts, Nickel Alloy 601 Fasteners, Inconel 601 Threaded Rod, Inconel 601 Cup Point, Inconel N06601 Fastener in Best Price, Inconel Alloy 601 Round Head Bolts Manufacturer & Stockist.
ASTM B166 Inconel Fasteners, Inconel 601 Screws, Inconel Alloy 601 Nuts, Inconel 601 Cone Point, Inconel Alloy High Tensile Fasteners, Inconel 601 Dog Point, 601 Inconel Fasteners Exporter, Inconel Alloy 601 Flat Washer Supplier & Exporter.
Detailed Information
Prashaant Steel & Alloys is used in the manufacture of Inconel 601 Fasteners in various industries that have found applications. At Prashaant Steel & Alloys, we manufacture ASTM B166 Inconel 601 Fasteners in a variety of sizes and dimensions that are suitable for the applications needed. The Inconel UNS N06601 Fasteners that we manufacture are made from our huge inventory using the highest quality of raw materials. Inconel UNS N06601 Fasteners are available in sizes ranging in thickness. At Prashaant Steel & Alloys, we aim to offer full customer satisfaction. Therefore, we also manufacture the Inconel 601 Fasteners in custom size orders that suit our clients’ specifications and requirements. Prashaant Steel & Alloys has a clientele of many companies from all over the world and caters to both large and small sectors. Prashaant Steel & Alloys houses all the machinery and technology required for the development of high caliber ASTM B166 Inconel 601 Fasteners at its state-of-the-art plant. At Prashaant Steel & Alloys, the customer service team ensures that all customers are helped with all their needs and demands. Due to the high strength they give, the ASTM B166 Inconel 601 Fasteners from Prashaant Steel & Alloys are widely common.
We also offer the same in different types such as Inconel 601 Nuts, Inconel 601 Bolts, Inconel 601 Washers, and Inconel 601 Stud Bolt. Also known as UNS N06601 Fasteners, it is highly resistant to oxidation through 2200 Degree F even under severe thermal cycling. Common applications of the properties of Inconel 601 can be found in such fields as thermal processing, chemical processing, pollution control, aerospace, and power generation. Nickel alloys are commonly used for high temperature applications and highly corrosive environments or a combination of the two. These Inconel Din 2.4851 Fasteners is a nickel-chromium alloy with an addition of aluminium for outstanding resistance to oxidation and other forms of high-temperature corrosion. The 601 Alloy Fasteners are used in Hardware, Petro-Chemical Industry, Oil and Gas Industry, Nuclear Industry, Pulp & Paper Industry, Research & Development, Mega Projects & Defence & Development Industries.
Applications of the ASTM B166 Inconel 601 Fasteners
Because of the excellent resisting properties it possesses, the ASTM B166 Inconel 601 Fasteners have many applications in a wide range of industrial sectors. Because of the excellent corrosion resistance that they provide in a wide variety of aggressive media, they are used in different industries. The ASTM B166 Inconel 601 Fasteners are used in various industries, such as the aerospace and aircraft ducting industries. They are commonly used in the manufacture of advanced seawater machinery and piping systems for seawater. They are also used in the manufacture of equipment for chemical processes.
Tests and Certifications of the ASTM B166 Inconel 601 Fasteners
We also provide certain documents with ASTM B166 Inconel 601 Fasteners such as Raw Materials Certificate, Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Material Traceability Records, Fumigation Certificates. In order to remove all defaulted products, we at Prashaant Steel & Alloys also conduct many quality tests on our products. Some of the experiments that our goods undergo include Mechanical Testing Such as Tensile of Area, Positive Material Identification – PMI Testing, Intergranular Corrosion (IGC) Test, Micro, and Macro Test, Flattening Test, Pitting Resistance Test, Flaring Test, etc.
Standard Specification For Inconel 601 Fasteners:
Specifications | ASTM B166 / ASME SB166 |
Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
Fasteners Length | 3 mm to 200 mm |
Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
Standard of High Nickel Alloy Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Surface Coating | Ptfe Coated High Nickel Alloy Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
Fasteners Finishing | High Nickel Alloy : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), High Nickel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
Inconel 601 Bolts Chemical Composition:
Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
601 | min. | – | – | – | Bal | – | 21.0 | – | 58.0 |
max. | 0.10 | 1.0 | 0.5 | Bal | 0.015 | 25.0 | 1.0 | 63.0 |
Alloy 601 Fasteners, Bolt/ Nut Mechanical Properties:
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
601 | Psi – 95,000 , MPa -655 | Psi – 45,000 , MPa – 310 | 40 | – | – |
Equivalent Grades for 601 Inconel Bolt / Nut:
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
BS | En | No | AFNOR | ||||
Inconel 601 | N06601 | NA 49 | NiCr23Fe | 2.4851 | NC23FeA | XH60BT | NCF 601 |
Prices of Grades 601 Inconel Bolt / Nut:
Inconel 601 Fasteners Price List | Price Per Pcs. |
---|---|
Inconel 601 Hex head bolt price | USD $6.25 |
Inconel 601 Machine bolt price | USD $5.50 |
Inconel 601 Screws price | USD $3.40 |
Inconel 601 Socket Head Cap Screw price | USD $3.40 |
Inconel 601 Allen bolt price | USD $5.00 |
Inconel 601 Dowel Pins price | USD $1.40 |
Inconel 601 Nuts price | USD $1.40 |
Inconel 601 Washer price | USD $1.40 |
Types of Inconel 601 Fasteners:
Inconel Fasteners | Inconel Alloy Fasteners |
Inconel 601 Nuts | Inconel Alloy Bolts Supplier |
Inconel 601 Washers Exporter | Inconel 601 Stud Bolt |
Inconel 601 Fender Washer | Inconel Alloy Bolts Manufacturer |
ASTM B166 Cap Screw | Inconel 601 Foundation Bolts |
Inconel 601 Dog Point |
Inconel 601 Grub Screw |
Inconel 601 Square Nut Exporter | Inconel Alloy Pan Head Screw Stockist |
DIN 2.4851 Inconel Bolts Manufacturer | Inconel Pan Head Screw |
Inconel 601 Double Ended Stud | Inconel 601 Tie Bar Exporter |
UNS N06601 Square Bolts Supplier | Inconel Alloy Punched Washer Distributor |
Inconel 601 Cup Point |
Inconel 601 Cone Point |
Inconel Alloy Lock Nut Supplier | Inconel 601 Coupler Nuts |
Inconel Flat Washer | Inconel Locking Nuts Manufacturer |
Inconel Alloy Studbolt | ISO Certified Inconel 601 Countersunk Slotted Screw |
