Detailed Information
Prashaant Steel & Alloys manufactures and supplies Galvanized Grating Clamps. With the experience of several years, Prashaant Steel & Alloys produces Galvanized Grating Clamps of high caliber that are reliable for several industries. The Galvanized Grating Clamps are made from the highest quality of raw materials. We at Prashaant Steel & Alloys have a team of experienced workers who are responsible for the manufacturing of Galvanized Grating Clamps. The team ensures that all the products manufactured meet the requirements and necessities of the customers. Prashaant Steel & Alloys houses a highly equipped manufacturing facility. It allows us to produce these Galvanized Grating Clamps in different sizes and dimensions. We manufacture the SS UNS S34700 Forged Fittings as per the specifications that are globally acknowledged. Prashaant Steel & Alloys also provides the Galvanized Grating Clamps in custom sizes according to the needs of customers. Our Products meet all the national and international quality standards. The Galvanized Grating Clamps are made by using the latest technology and machinery. We also offer these Galvanized Grating Clamps in customized form with respect to its sizes and shapes to our clients. We at Prashaant Steel & Alloys also conduct some tests on all the products before delivering them to our customers.
The galvanized grating clamp is used to fasten the open steel floor to an existing structural member while facilitating a quick, easy and cost effective way of fastening. The galvanized grating clips are suitable for mounting gratings while working on top of the grating floor, so access under the grating is not required.

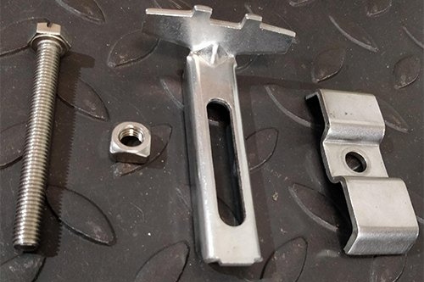

Galvanized grating clamps consist of standard top clamp, bottom clamp, bolt and nut. It can be supplied as a complete kit or as individual elements. The assembled grating clip is lowered above the grating surface so that the upper clip is on top of the grating, press the lower clip towards the beam flange of the existing steel structure and fasten the bolt from above with simple hand tools. The square nut locks tightly into the slot of the lower clamp, allowing easy top-mounting of the galvanized grate clamp. G Clip, U Type Clip, Disk Type Clip and M Type Saddle clip are some of the clip gratings by Ferrotech provided in both Mild Steel and Hot Dip Galvanised finish. We at Prashaant Steel & Alloys manufacture Standard as well as customized drawing based Grating Clamps at best price.

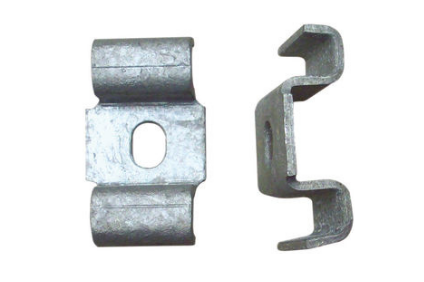

Saddle Clips
Technical Specifications Galvanized Grating Clamps
- Item/Type: Grating clip / Galvanized grating clip
- Material Grade: Mild Steel, Carbon Steel, Stainless Steel AISI 304/316
- Finish: Mill finish, Hot Dip Galvanized, Painted, Polished
- Fits Bar Grating Type: Welded, Press-locked, Swaged, Riveted (Carbon Steel, Stainless Steel & Aluminium)
- Fits Bearing Bar Surface: Serrated & Non-Serrated(Smooth/Plain)
- Fits Bearing Bar Spacing/C2C: Various
- Fits Grating Thickness/Depth/Height: Upto 2″ (50mm)
- Drilling: Not required
- Includes: M8 Hex Bolt with a hex nut
- Package quantity: 100 sets of Galvanized grating clip
- Recommended quantity: 4 Galvanized grating clips / sq.meter of grating
Types of Galvanized Grating Clamps
- G Clip Manufacturer
- U Type Clip Exporter
- Disk Type Clip Suppliers
- M Type Saddle clip Stockist
