PVC Rungs
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
ASTM AA720 Mild Steel Access ladders are designed for access to platforms and structures where the use of a stair is not suitable.
Detailed Information

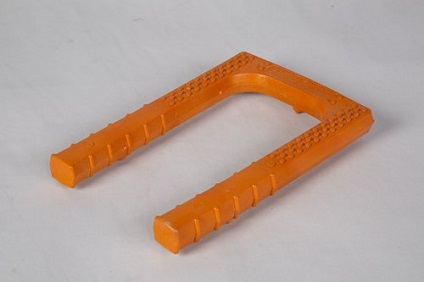

Prashaant Steel & Alloys is a leading producer of PVC Rungs and a high-caliber retailer. We are a uniquely designed copolymer polypropylene plastic encapsulated steel reinforced manhole safety step (also known as Foot rest). It is a superior alternative to conventional Mild Steel/Cast Iron steps in manholes. It offers unmatched resistance to all types of corrosive environments often characteristic of sanitary sewers. The unique design and colour provides added safety to the cleaning personnel.
In some projects and mostly in Swimming pool areas Footsteps in SS is required, we provide best-in-class footsteps in various grades SS304, SS 316, SS 202 etc.
Specification of PVC Rungs:
- Minimum 3 mm thick Polypropylene copolymer is injection moulded around a 12 mm dia tor-steel bar
- Orange Color
- Minimum overall length of 260 mm and width of 165 mm
- Protruding legs have a 2 mm tread on top surface by dots for providing an anti skid surface
- Designed to withstand the bend test and chemical resistance test as per specification
- 12 mm dia Fe-415 Steel reinforcement conforming to IS – 1786
APVC FOOT STEPS- Technical Specs & Sizes
S No | Length | Breath | Thickne ss | Steel Reinforcement | Steel STD | PP Material |
1 | 263 | 164 | 25*23 | 8 mm TMT | As per IS 1786 | Colour black |
2 | 263 | 164 | 25*23 | 10mm TMT | As per IS 1786 | Colour black |
3 | 263 | 164 | 25*23 | 12 mm TMT | As per IS 1786 | Colour black |
4 | 263 | 164 | 25*23 | 10 mm TMT | As per IS 1786 | Colour orange |
5 | 263 | 164 | 25*23 | 12 mm TMT | As per IS 1786 | Colour orange |
6 | 375 | 165 | 25*25 | 10 mm TMT | As per IS 1786 | Colour black |
