P250GH Carbon Steel Flanges
Detailed Information

Prashaant Steel & Alloys is one of the most prominent manufacturers and suppliers of Carbon Steel P250GH Flange. In the manufacture and production of Superlative Carbon Steel P250GH Flange, Prashaant Steel & Alloys is experienced. We manufacture the Carbon steel P250GH Flange at Prashaant Steel & Alloys in a range of sizes and diameters for our clients to choose from. In terms of the production of the internationally renowned Carbon Steel P250GH Flange, Prashaant Steel & Alloys is a popular company. In Carbon Steel, we manufacture the Carbon Steel P250GH Flange, which gives different corrosive media high resistivity. The Carbon Steel P250GH Flange is also designed in compliance with our customers’ needs and specifications. We supply the wrapped product with Carbon Steel P250GH Flange packed in suitable wooden boxes to ensure minimal product deterioration for customers of Prashaant Steel & Alloys suppliers from all over the world and to ensure that the product is manufactured according to schedule. We also supply some documentation to our customers which guarantee the quality of our products. Some of the documents that we provide with our Carbon Steel P250GH Flange Are Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc.

P250GH steel flange is used in the piping industry and is suitable for many other sectors like chemical, mechanical and lot more. The material used is of high quality and is thus manufactured accordingly. Low carbon steel p250gh pipe flanges have low carbon content and are used in applications like hydraulic systems. Many other types of flanges are used and it is thus widely used in the market. Blind Flange P250gh main intention is used to block one end of the pipe and is not used. It has a solid disk and just like any other flange it has mounting holes. This flange has no openings for fluid to pass through. P250gh En 10222-2 Flange has various dimensions and factors like material, testing requirements and the delivery condition. This information helps to manufacture the product on time and is then dispatched to the desired location.

ANSI B16.5 carbon steel p250g orifice flange has various classes like class 150 to class 1500. This measures the flow rate of liquids or gases from the particular pipeline. This is available in raised face, ring type joint facings. Carbon steel P250gh slip on flange price list is available and it is affordable as compared to any other steel companies. Prashaant Steel & Alloys is one of the leading and trust-worthy one which has years of experience in steel industries and delivers the best product to the client.

P250GH Flanges Material Specification:

Size Chart 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051,

JISB2220, BS1560-3.1, EN1092

Pressure Rating ANSI 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
Pressure Calculation in DIN 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent
Most common types Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B

Raw Materials Certificate

100% Radiography Test Report

Third Party Inspection Report, etc

Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove

Chemical Composition of Carbon Steel P250GH Flange:

C Si Mn Ni P S Cr V Nb Ti Al
0.18 – 0.23 max 0.4 0.3 – 0.9 max 0.3 max 0.025 max 0.015 max 0.3 max 0.02 max 0.01 max 0.03 0.015 – 0.05 Cr+Cu+Mo+Ni < 0.7

Material Properties of Carbon Steel P250gh Flanges:

Nominal thickness (mm): to 150
Rm – Tensile strength (MPa) (+N) 410-540
Nominal thickness (mm): to 50 50 – 100 100 – 150
ReH – Minimum yield strength (MPa) (+N) 250 240 230
KV – Impact energy (J) longitud., +20°

47

Nominal thickness (mm): to 150
A – Min. elongation at fracture (%) (+N) 25
Low Carbon Steel P250gh Flange Manufacturing Standard
ASME/ANSI B 16.5 Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36 Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100
Carbon Steel P250GH Pipe Flange Dimensions –
AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
  • ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)
P250GH Carbon Steel Flange Weights
Standard
Class
Diameter
Bolt Circle Diameter
Number of Bolts
Bolt Size
Diameter of Bolt Hole
AS4087
PN14
95
67
4
M12
14
AS 2129 Flange
Table C
95
67
4
13
14
Table D
95
67
4
13
14
Table E
95
67
4
13
14
Table F
95
67
4
13
14
Table H
114
83
4
16
17
Table J
114
83
4
16
17
ASTM B16.5
ASTM 150
89
60
4
13
16
ASTM 300
95
67
4
13
16
ASTM 600
95
67
4
13
16
ASTM 900
121
83
4
19
22
ASTM 1500
121
83
4
19
22
ISO 7005 (DIN) Flange
PN6
80
55
4
M10
11
PN10
95
65
4
M12
14
PN16
95
65
4
M12
14
PN20
90
60.5
4
M14
16
PN25
95
65
4
M12
14
PN40
95
65
4
M12
14

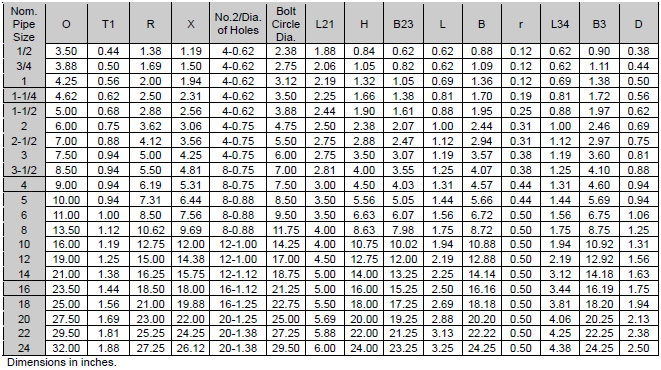

Size Chart Of Carbon Steel P250GH Flange

Types of Carbon Steel P250GH Flanges Type

P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Spade Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Threaded  Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Lap Joint Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Long Weld Neck Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Spectacle Blind Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Slip On Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Orifice Flanges



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Square Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Nipo Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Socket Weld Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Blind Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Weld Neck Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel High Hub Blind Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Ring Type Joint Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Tongue & Groove Flanges



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Weldoflange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Ring Spacer



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Plate Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Male & Female Flanges



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Bleed Ring Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Raised Face Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Forged Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Reducing Flange



P250GH Carbon Steel Spade Flange
P250GH Carbon Steel Puddle Flanges



Types of Carbon Steel P250GH Flange:

CS P250GH Flanges Carbon Steel P250GH Forged Flanges
Carbon Steel P250GH Flanges Carbon Steel P250GH Weld Neck Flanges
Carbon Steel Long Weld Neck Flanges CS P250GH Threaded Flanges
Carbon Steel P250GH Reducing Flanges Carbon Steel Ring Type Joint Flanges
Carbon Steel P250GH Orifice Flange P250GH Carbon Steel Spectacle Blind Flanges
ASME SP250GH Carbon Steel WNRF Flange Carbon P250GH SORF Flanges
P250GH Carbon Steel Lap Joint Flanges ASME SP250GH Carbon Steel BLRF Flange
Carbon Steel Raised Face Flanges P250GH Carbon Steel Nipoflange
P250GH Carbon Steel Square Flanges ASME SP250GH Carbon Steel SWRF Flange
