Incoloy Products

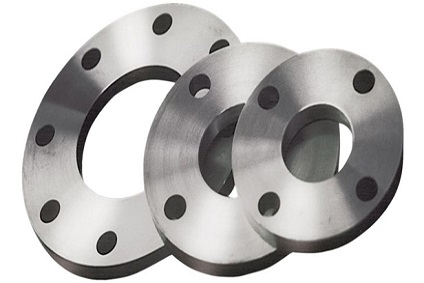

ASTM B564 Incoloy 800/800H Flange/ UNS N08800/UNS N08810 Flange
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Incoloy 800 Flanges Manufacturers in India, Incoloy 800H Flanges, WERKSTOFF NR. 1.4876 Flanges, UNS N08810 Flanges, ASTM B564 Incoloy 800H Flanges, ANSI B16.5 Incoloy Alloy 800 Flanges, UNS N08800 Flanges, Alloy 800 Flanges, DIN 1.4958 Flange, UNS N08811 Flanges, Incoloy Alloy 800 Flanges Supplier in Mumbai, India.
Incoloy DIN 1.4876 Socket Weld Flanges, Inconel 800 Nippo Flanges, Incoloy UNS N08800, N08810, Inconel 800 Long weld neck, N08811 Pipe Flanges, Incoloy 800 Slip-On Flanges, ASTM B564 Alloy 800H RTJ Flange Supplier in Mumbai, ASTM B564 Incoloy 800/800H Flange Price in India.
Detailed Information
In the industry, Prashaant Steel & Alloys is a popular name for the manufacture and supply of Incoloy 800 Flanges. To provide ASTM B409 Incoloy 800 Flanges that are suitable for use in many industries, we at Prashaant Steel & Alloys use the best available raw materials. We manufacture the Incoloy UNS N08800 Flanges to ensure that they are compliant with global and national quality requirements. In our well-equipped facility that houses all modern machinery and state-of-the-art technology, we produce the Incoloy 800 Flanges, which allows us to produce the ASTM B409 Incoloy 800 Flanges in various shapes and sizes. We also take custom orders from our customers and, according to their needs and demands, manufacture the Incoloy UNS N08800 Flanges. In the production and supply of Incoloy 800 Flanges, Prashaant Steel & Alloys is a brand known by the industry. At Prashaant Steel & Alloys, we aim to provide ASTM B409 Incoloy 800 Flanges with only the finest standard. From our huge inventory, we use the best quality of raw materials and generate Incoloy UNS N08800 Flanges that give great resistivity to oxidation.
Incoloy 800 Threaded Flanges (UNS N08810) has added carbon and annealing treatment that allows for higher creep and rupture properties above 1100 Degree F (800 Degree C). Incoloy 800 Weld Neck Flanges (UNS N08811) is nickel-iron-chromium alloy, which has many of the same characteristics of other members of the 800 alloy grouping. Meanwhile, these Incoloy 800 Blind Flanges are also being offered in different sizes and shapes to our customers. We also offer these Incoloy 800H Socket Weld Flanges at market leading prices. As with standard austenitic stainless steels, Incoloy 800 Lap Joint Flanges may be welded using techniques such as MIG, TIG, and shield metal arc welding. Incoloy 800 Ring Joint Type Flanges is resistant to chloride ion stress corrosion cracking.
Incoloy 800 Spacer Flanges is often used in electric range heating – element sheathing; steam methane reforming furnaces and extruded tubing for ethylene; ammonia effluent coolers; etc. Incoloy 800H Weld Neck Flanges is also used in Chemical & Petrochemical processing.
We at Prashaant Steel & Alloys also conduct several quality tests on our products before deliveries. Some of the tests that our ASTM B409 Incoloy 800 Flanges undergo are Mechanical Testing Such as Tensile of Area, Chemical Analysis – Spectra Analysis, Positive Material Identification – PMI Testing, Flattening Test, Intergranular Corrosion (IGC) Test, etc.
WNR 2.4858 Incoloy 800/800H Flanges Specification:
Specification: ASTM B564/ ASME SB564, ASTM B637/ ASME SB637, ASTM B462/ ASME SB462, ASTM B865/ ASME SB865
Grade: Incoloy 800/800H (UNS N08800/UNS N08810, Alloy 800/800H, 2.4816)
Connect Type/ Flange Face Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove
Size Range: 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Facings: Raised Face, RTJ etc.
To ANSI, DIN, EN, JIS, etc. or according to drawing
Incoloy Alloy 800 / 800H Flanges Chemical Composition:
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800 / 800H Flanges Mechanical Properties:
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
800 / 800H | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Equivalent Grades for 800 / 800H Incoloy Flanges:
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
WNR 2.4858 Incoloy 800/800H Flange Types:
- Incoloy 800/800H Socket Weld Flanges
- Incoloy DIN 2.4858 Reducing Flanges Distributors at India
- Alloy 800/800H Plate Flanges Suppliers
- Incoloy UNS N08800/UNS N08810 Forged Flanges
- ASTM B564 Incoloy 800/800H Slip-On Flanges Suppliers at Morocco
- Incoloy Alloy 800/800H Weld Neck Flanges
- Alloy 800/800H SORF Flanges
- Incoloy 800/800H BLRF Flange Exporter
- Incoloy EN 1092-1 Flanges
- Incoloy 800/800H Forged Flanges
- Incoloy Alloy Blind Flange Exporter
- ANSI B 16.47 Incoloy Flange
- Incoloy 800/800H Flanges Exporter
- ASME B16.5 Incoloy Flanges
- ASME SB564M Alloy 800/800H SWRF Flange Stockist
- Incoloy 800/800H Nipoflange
- ASME SB564 Alloy 800/800H BLRF Flange
- Incoloy 800/800H Flanges
- Incoloy 800/800H Tongue & Groove Flanges
- Incoloy 800/800H Square Flanges Supplier at Jordan
- Incoloy 800/800H Raised Face Flanges
- Alloy 800/800H Blind Flanges Manufacturer at Tunisia
- Incoloy 800/800H Lap Joint Flanges Dealers
- Incoloy 800/800H Orifice Flanges
- Incoloy 800/800H Ring Type Joint Flanges
- Alloy 800/800H Threaded Flanges
- Incoloy 800/800H Long Weld Neck Flanges
- Incoloy 800/800H Short Weld Neck Flange
- Inconly Flat Face 800/800H Flange
- Incoloy 800/800H WNRF FLANGE
