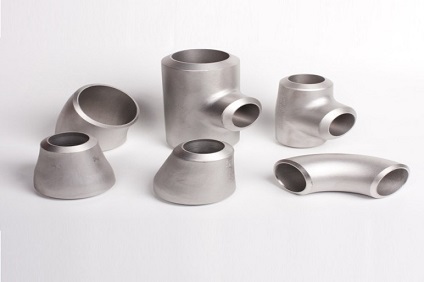

ASME B16.9 3D Bend Fittings Stockist & Suppliers
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



High Quality 3D Pipe Bends, ASTM A403 SS 3D Pipe Bends, Buttweld 3D Pipe Bends, Steel 3D Pipe Bend Wholesaler, Monel 3D Pipe Bend, Nickel Alloy 200 3D Pipe Bends, Alloy Steel Buttweld 3D Pipe Bend Manufacturer in Mumbai, India.
ASME B16.9 3D Pipe Bends, Butt Weld 3D Pipe Bends, Global Supplier of ANSI B16.9 Buttweld 3D Pipe Bends, 3D Bends Pipe, Stockist of Stainless Steel 3D Pipe Bend, Buttweld 3D Pipe Bend, 3D Pipe Bends Dealer in India.
Detailed Information
Prashaant Steel & Alloys is an industry-leading producer and supplier of bends for 3D Bend Pipe. Pipe bends, the width of which is three times that of the outer thread, are 3D bends. In many ways and angels, a wire may be bent. Nevertheless, some of the most normal and simple bends are the shape of an elbow that varies from two degrees to 90 degrees. Others are U-bends that have a curve of 180 degrees. We produce these 3D bends at Prashaant Steel & Alloys using the finest quality raw materials and the latest manufacturing processes.
The process of production of the 3D Bend involves the operation of machinery and hydraulic power. Hydraulically supported, or even pneumatically driven, pipe or tube bending devices are generally operated by humans. At Prashaant Steel & Alloys, we produce these high-performance 3D bends using one of many common techniques, including ram bending, rotary draw bending, compression bending, and three-roll bending. With presses or more complicated devices, the pipe can be custom-bent. Separate dies are typically needed for each pipe size and each specific bend radius, except on more complex machines.
A turn is a 3D bend, where the length of the curve is equal to 3 times the diameter of the pipe. It’s a thinner bend than a 1.5D bend that looks almost like a normal right angle of 90 degrees, but it’s a stronger bend than a 5D bend that looks like two perpendicular parts of a straight curve. Industries such as automotive exhaust systems, structural frames, furniture manufacturing, plumbing and gas and oil pipelines are generally used.
The replacement of elbows with 3D bends offers certain benefits. The 3D bends can be custom built, meaning an organisation wouldn’t have to procure an identical elbow fitting. Instead, the 3D bend can be shaped to the exact necessary requirements. A 3D bend also removes the welds that are synonymous with an elbow fitting, reducing failure points. This would also eliminate the need for testing welds that would be linked to elbow fittings. Choosing a 3D bend over an elbow fitting also turns out to be the most cost-effective, reliable, fastest solution that also provides high structural integrity.
Applications of the 3D Pipe Bends
In order to ensure the best piping methods, industries that need steady flows of chemicals and extracts to produce their petroleum products, such as the petro-chemical industry, often turn to 3D bends. Another common application of 3D pipe bends in the oil field industry is that the oil field industry depends on precise pipe bending of both travelling and stationary pipes to remove petroleum from the earth. There would be a lot of damages without the use of correct pipe bending in the oil field market. Custom pipe bends are relied on in the aerospace industry, too. Pipes have to be bent with great accuracy and precision when it comes to space travel. The pipe bends used in the aerospace industry often have to withstand the extreme environments faced in outer space.
3D Bends Specifications:
Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size: 2″NB TO 18″ NB
Type: Seamless / ERW / Welded / Fabricated
Bend Radii: 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R): R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°
Material & Grades of 3D Pipe Bend:
Stainless Steel 3D Pipe Bend | : | ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Duplex & Super Duplex Steel 3D Pipe Bend | : | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
Carbon Steel 3D Pipe Bend | : | ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
Low Temperature Carbon Steel 3D Pipe Bend | : | ASTM A420 WPL3, A420 WPL6 |
Alloy Steel 3D Pipe Bend | : | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
Nickel Alloy 3D Pipe Bend | : | ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
