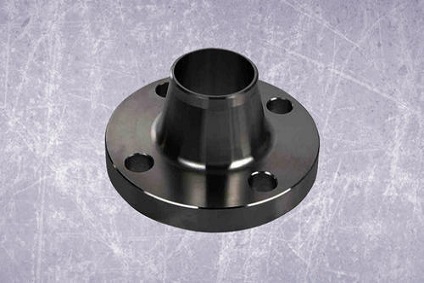

Sf440 Carbon Steel Flange
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Carbon Steel Sf440 Flanges At Affordable Price, Sf440 Material, Sf440 Jis Flange Suppliers, sf440 carbon steel flange sf440a material sf440 jis pipe in India.
Check Sf440 Weld Neck Flange Price List, Available Stock Of 150# Ansi Carbon Steel Sf440 Flanges, Carbon Steel Sf440 Blind Flanges, Ansi B16.5 Carbon Steel Sf440 Orifice Flanges in India
Detailed Information
Prashaant Steel & Alloys is a major producer and supplier of the Sf440 Carbon Steel Flange. The Sf440 Carbon Steel Flange that we produce for applications in appropriate environments are crafted with absolute accuracy and dimensional quality. We at Prashaant Steel & Alloys are active in the manufacturing of Sf440 Carbon Steel Flange superlative material, which has high resistivity against corrosion and oxidation under different conditions. Prashaant Steel & Alloys houses a production plant capable of processing Sf440 Carbon Steel Flange bulk orders of different sizes and lengths. We also take custom orders from our customers and manufacture the Sf440 Carbon Steel Flange according to their specifications and requirements. Because of their excellent formability properties, the Sf440 Carbon Steel Flange that we produce is known to have diverse applications in various industrial sectors. We customers from all over the globe at Prashaant Steel & Alloys cater to both small and large industries. Thanks to the consistency of the Sf440 Carbon Steel Flange we have established a reputation in the industry.
SF440 Flange is used for various applications like mechanical, chemical industries, oil, and gas extraction, and many other sectors. This is available in sizes, shapes and is available in various dimensions and specifications. It has various other types and the material used is of high quality. Carbon steel Sf440 high hub flanges are the ones where various types of grades are available. It is the one where classes such as class 150, class 400, class 600, and class 1500, and many others.
These are used in close ends of the piping system. It consists of a round plate with no center hold but with all proper bolt holes. Sf440 material is used by using carbon steel and also many other materials are used in many other industries like chemical, mechanical, and many others. Sf440 Jis Flange is used to connect two pipes, pumps, and valves. This also has its own dimensions and specifications. The size ranges from 10A-1500A. It is used in industries like oil fields, offshore, water systems, shipbuilding, natural gas, electric power, pipe, and many other industries. There are numerous Sf440 carbon steel flange manufacturers in India, but the one which is ISO certified is a Prashaant Steels & Alloys. It is the oldest steel organization and each and every product manufactured by us is of high quality.
Specification of Sf440 Carbon Steel Flange:
Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051,
JISB2220, BS1560-3.1, EN1092 |
Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
Most common types | Forged / Threaded / Screwed / Plate |
SF440 Carbon Steel Flange Chemical Composition Table:
Grade | Fe | Si | C | S | P | |
SF440 | min. | 99.25 | – | – | – | – |
max. | 100 | 0.4 | 0.26 | 0.050 | 0.040 |
Carbon Steel ASTM SF440 Flange Mechanical Strength:
Grade | Yield Strength
min. (Mpa) |
Tensile Strength
(Mpa) |
Elongation min. % | ImpactResistancemin.[J] | |||
Thickness
<16 mm |
Thickness
≥16mm |
Thickness | Thickness | Thickness | |||
<5mm | 5-16mm | ≥16mm | |||||
SF440 | 245 | 235 | 400-510 | 21 | 17 | 21 | – |
Technical Information – Specifications, Dimensions Threaded Flanges
- ANSI ASME B16.5 Class 150 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 300 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 400 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 600 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 900 Threaded Flanges Dimensions
- ANSI ASME B16.5 Class 1500 Threaded Flanges Dimensions
CARBON STEEL SF440 FLANGE WEIGHT CHART
ANSI B16.5 – ½” – 24” Forged Flanges Weight Chart:
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
---|---|---|---|---|---|---|---|
150 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
1 | 2 | 2 | 2 | 2 | 2 | 3 | |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
2 | 5 | 5 | 5 | 5 | 5 | 6 | |
2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
5 | 15 | 15 | 15 | 15 | 20 | 21 | |
6 | 19 | 19 | 19 | 19 | 27 | 26 | |
8 | 30 | 30 | 30 | 30 | 47 | 42 | |
10 | 43 | 43 | 43 | 43 | 70 | 54 | |
12 | 64 | 64 | 64 | 64 | 123 | 88 | |
14 | 90 | 90 | 90 | 105 | 140 | 114 | |
16 | 106 | 98 | 98 | 140 | 180 | 140 | |
18 | 130 | 130 | 130 | 160 | 220 | 165 | |
20 | 165 | 165 | 165 | 195 | 285 | 197 | |
22 | 185 | 185 | 185 | 245 | 355 | 225 | |
24 | 220 | 220 | 220 | 275 | 430 | 268 | |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
300 lb | ½ | 2 | 2 | 3 | 2 | 2 | 2 |
¾ | 3 | 3 | 3 | 3 | 3 | 3 | |
1 | 3 | 3 | 3 | 3 | 4 | 4 | |
1¼ | 4.5 | 4.5 | 4 | 4.5 | 6 | 5 | |
1½ | 6.5 | 6.5 | 6 | 6.5 | 7 | 7 | |
2 | 7 | 7 | 7 | 7 | 8 | 9 | |
2½ | 10 | 10 | 10 | 10 | 12 | 12 | |
3 | 13 | 14 | 13 | 14.5 | 16 | 18 | |
3½ | 17 | 17 | 17 | 17 | 21 | 20 | |
4 | 23.5 | 24 | 22 | 24 | 28 | 26.5 | |
5 | 29 | 31 | 28 | 28 | 37 | 36 | |
6 | 39 | 39 | 39 | 39 | 50 | 45 | |
8 | 58 | 58 | 58 | 58 | 81 | 69 | |
10 | 81 | 81 | 81 | 91 | 124 | 100 | |
12 | 115 | 115 | 115 | 140 | 185 | 142 | |
14 | 165 | 165 | 165 | 190 | 250 | 206 | |
16 | 210 | 220 | 190 | 234 | 315 | 250 | |
18 | 253 | 280 | 250 | 305 | 414 | 320 | |
20 | 315 | 325 | 315 | 375 | 515 | 400 | |
22 | 370 | 370 | 370 | 435 | 640 | 465 | |
24 | 490 | 490 | 475 | 550 | 800 | 580 | |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
400 lb | ½ | 2 | 2 | 2 | 2 | 2 | 3 |
¾ | 3 | 3 | 3 | 3 | 3 | 3.5 | |
1 | 3.5 | 3.5 | 3.5 | 3.5 | 4 | 4 | |
1¼ | 4.5 | 4.5 | 4.5 | 4.5 | 6 | 4.5 | |
1½ | 6.5 | 6.5 | 6.5 | 6.5 | 8 | 8 | |
2 | 8 | 8 | 8 | 8 | 10 | 10 | |
2½ | 12 | 12 | 12 | 11 | 15 | 14 | |
3 | 15 | 15 | 15 | 14 | 20 | 18 | |
3½ | 21 | 21 | 21 | 20 | 29 | 26 | |
4 | 26 | 26 | 26 | 25 | 33 | 35 | |
5 | 31 | 31 | 31 | 29 | 44 | 43 | |
6 | 44 | 44 | 44 | 42 | 61 | 57 | |
8 | 67 | 67 | 67 | 64 | 100 | 89 | |
10 | 91 | 91 | 91 | 110 | 155 | 125 | |
12 | 130 | 130 | 130 | 152 | 226 | 175 | |
14 | 191 | 191 | 191 | 210 | 310 | 233 | |
16 | 253 | 253 | 253 | 280 | 398 | 295 | |
18 | 310 | 310 | 310 | 345 | 502 | 360 | |
20 | 378 | 378 | 378 | 420 | 621 | 445 | |
22 | 405 | 405 | 405 | 455 | 720 | 505 | |
24 | 539 | 539 | 539 | 615 | 936 | 640 | |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
600 lb | ½ | 2 | 2 | 2 | 2 | 3 | 3 |
¾ | 3 | 3 | 3 | 3 | 4 | 4 | |
1 | 4 | 4 | 4 | 4 | 4 | 4 | |
1¼ | 5 | 5 | 5 | 5 | 6 | 6 | |
1½ | 7 | 7 | 7 | 7 | 8 | 8 | |
2 | 9 | 9 | 9 | 9 | 10 | 12 | |
2½ | 13 | 13 | 13 | 12 | 15 | 18 | |
3 | 16 | 16 | 16 | 15 | 20 | 23 | |
3½ | 21 | 21 | 21 | 20 | 29 | 26 | |
4 | 37 | 37 | 37 | 36 | 41 | 42 | |
5 | 63 | 63 | 63 | 63 | 68 | 68 | |
6 | 80 | 80 | 80 | 78 | 86 | 81 | |
8 | 115 | 115 | 115 | 112 | 140 | 120 | |
10 | 177 | 177 | 177 | 195 | 231 | 190 | |
12 | 215 | 215 | 215 | 240 | 295 | 226 | |
14 | 259 | 259 | 259 | 290 | 378 | 347 | |
16 | 366 | 366 | 366 | 400 | 527 | 481 | |
18 | 476 | 476 | 476 | 469 | 665 | 555 | |
20 | 612 | 612 | 612 | 604 | 855 | 690 | |
22 | 590 | 590 | 590 | 670 | 1000 | 720 | |
24 | 876 | 876 | 876 | 866 | 1250 | 977 | |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
900 lb | ½ | 6 | 6 | 6 | 6 | 4 | 7 |
¾ | 6 | 6 | 6 | 6 | 6 | 7 | |
1 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 8.5 | |
1¼ | 10 | 10 | 10 | 10 | 10 | 10 | |
1½ | 14 | 14 | 14 | 14 | 14 | 14 | |
2 | 22 | 22 | 22 | 21 | 25 | 24 | |
2½ | 31 | 31 | 31 | 25 | 32 | 31 | |
3 | 36 | 36 | 36 | 29 | 35 | 36 | |
4 | 53 | 53 | 53 | 51 | 54 | 53 | |
5 | 83 | 83 | 83 | 81 | 87 | 86 | |
6 | 110 | 110 | 110 | 105 | 115 | 110 | |
8 | 172 | 172 | 172 | 190 | 200 | 187 | |
10 | 245 | 245 | 245 | 277 | 290 | 268 | |
12 | 326 | 326 | 326 | 371 | 415 | 372 | |
14 | 400 | 400 | 400 | 415 | 520 | 562 | |
16 | 459 | 459 | 459 | 488 | 619 | 685 | |
18 | 647 | 647 | 647 | 670 | 880 | 924 | |
20 | 792 | 792 | 792 | 868 | 1107 | 1164 | |
24 | 1480 | 1480 | 1480 | 1659 | 2099 | 2107 | |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
1500 lb | ½ | 6 | 6 | 6 | 6 | 4 | 7 |
¾ | 6 | 6 | 6 | 6 | 6 | 7 | |
1 | 8 | 8 | 8 | 8 | 9 | 9 | |
1¼ | 10 | 10 | 10 | 10 | 10 | 10 | |
1½ | 14 | 14 | 14 | 14 | 14 | 14 | |
2 | 25 | 25 | 25 | 25 | 25 | 25 | |
2½ | 36 | 36 | 36 | 35 | 35 | 36 | |
3 | 48 | 48 | 48 | 47 | 48 | 48 | |
4 | 73 | 73 | 73 | 75 | 73 | 73 | |
5 | 132 | 132 | 132 | 140 | 140 | 132 | |
6 | 165 | 165 | 165 | 170 | 160 | 165 | |
8 | 260 | 260 | 260 | 286 | 302 | 275 | |
10 | 436 | 436 | 436 | 485 | 510 | 455 | |
12 | 667 | 667 | 667 | 749 | 775 | 690 | |
14 | 940 | 940 | 940 | 890 | 975 | 940 | |
16 | 1250 | 1250 | 1250 | 1250 | 1300 | 1250 | |
18 | 1625 | 1625 | 1625 | 1475 | 1750 | 1625 | |
20 | 2050 | 2050 | 2050 | 1775 | 2225 | 2050 | |
24 | 2825 | 2825 | 2825 | 2825 | 3625 | 3325 | |
CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
2500 lb | ½ | …. | 7 | …. | 7 | 7 | 8 |
¾ | …. | 9 | …. | 8 | 10 | 9 | |
1 | …. | 12 | …. | 12 | 12 | 13 | |
1¼ | …. | 18 | …. | 17 | 18 | 20 | |
1½ | …. | 25 | …. | 24 | 25 | 28 | |
2 | …. | 38 | …. | 37 | 39 | 42 | |
2½ | …. | 55 | …. | 53 | 56 | 52 | |
3 | …. | 83 | …. | 80 | 86 | 94 | |
4 | …. | 127 | …. | 122 | 133 | 146 | |
5 | …. | 210 | …. | 204 | 223 | 244 | |
6 | …. | 323 | …. | 314 | 345 | 378 | |
8 | …. | 485 | …. | 471 | 533 | 576 | |
10 | …. | 925 | …. | 897 | 1025 | 1068 | |
12 | …. | 1300 | …. | 1262 | 1464 | 1608 |
