Carbon Steel Products

S235JRG2 Carbon Steel Flanges

Home » Carbon Steel S235jrg2 Flanges

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

Carbon Steel S235jrg2 Flanges

S235jrg2 For Flanges, Carbon Steel S235jrg2 Blind Flanges At Reasonable Price, View Low Carbon Steel S235jrg2 Pipe Flanges Price List,  Ansi Carbon Steel S235jrg2 Flanges, ANSI B16.5 Carbon Steel S235jrg2 Orifice Flange, Check S235jrg2 Wnrf Flanges Price List

EN 1092-1 Flange Suppliers Exporters Manufacturers Stockist India, EN 1092-1 steel flanges 235JR, S235JRG2 steel flange MSZ EN 10025 steel flange.

Detailed Information

Prashaant Steel & Alloys is a leading producer of S235JRG2 Carbon Steel Flanges and a high-calibre retailer. Thanks to their excellent resistivity properties, the S235JRG2 Carbon Steel Flanges that we manufacture are extremely popular in the industry. We are considered to have the excellent quality of S235JRG2 Carbon Steel Flanges at Prashaant Steel & Alloys, which is why we use the highest quality of the raw materials used in the production processes. The S235JRG2 Carbon Steel Flanges provide outstanding resistance to corrosion and oxidation, which opens its doors to a wide range of applications.

Carbon steel S235jrg2 blind flanges are used in many other applications where the main intention of this flange is to block one section of the pipe and is used in applications like the piping industry and in many other sectors. The melting point is 1420-1460 degree C. The price of this flange is affordable as compared to any other steel industry. S235jrg for flanges are made of carbon steel and other elements are used. Based on the product is manufactured and is then exported to any other countries. The dimensions, specifications, as well as weight chart, is also provided and all this information helps to manufacture the product.

Low carbon steel S235jrg2 pipe flanges are the flanges where low carbon is applied and also many other elements are included in this product. This is available in various sizes, shapes, and forms. This is in high demand in the market and it is being tested by using advanced techniques. S235jrg2 Wnrf Flanges are manufactured by various steel industries, but the one which is reputed and trustworthy is regal sales corporation. We deliver the best product and our quality speaks everything.

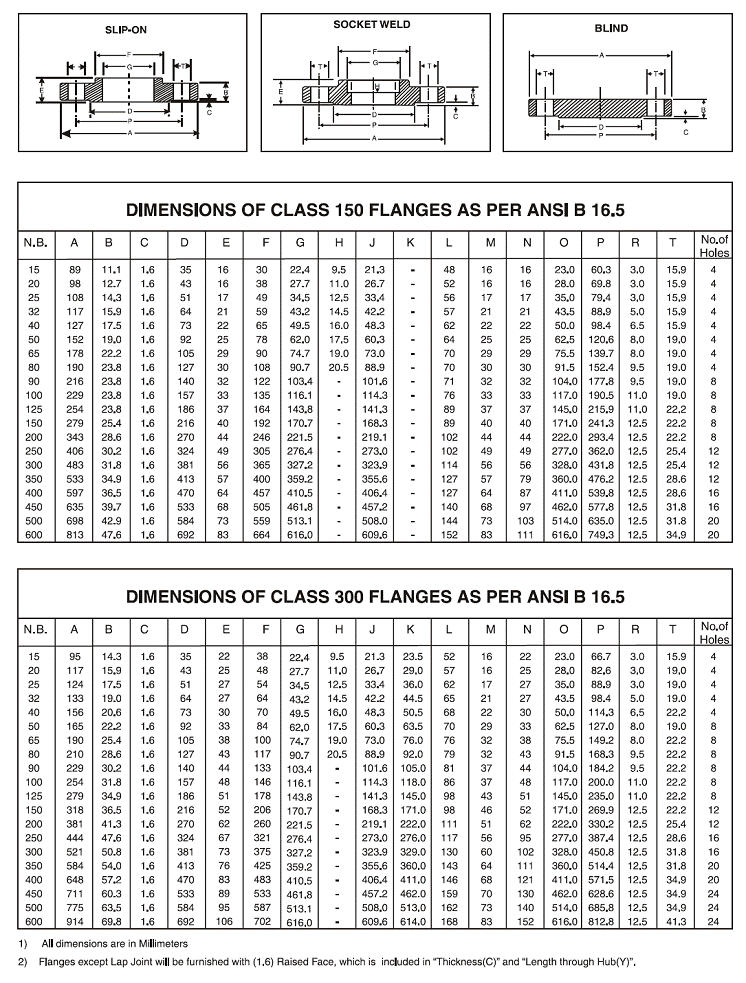

S235jrg2 Blind Flanges Standard size & Specification:

Size Chart 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051,

JISB2220, BS1560-3.1, EN1092

Pressure Rating ANSI 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
Pressure Calculation in DIN 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent

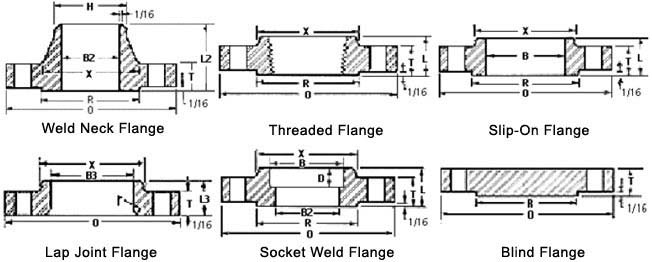

Most common types Forged / Threaded / Screwed / Plate

Chemical Properties of s235jrg2 steel:

C Si Mn Ni P S Cr Mo Al
max 0.2 max 0.55 max 1.4 max 0.3 max 0.045 max 0.045 max 0.3 max 0.08 min 0.02 Cr+Mo+Ni < 0.48

EN 10025 s235jrg2 Mechanical And Physical Properties:

Minimum yield strength Reh

MPa

Tensile strength Rm

MPa

Minimum elongation – A

Lo = 5,65 * √So (%)

Notch impact test
Steel grade Nominal thickness

mm

Nominal thickness

mm

Nominal thickness

mm

Temperature Min. absorbed energy
≤16 >16

≤40

>40

≤63

>63

≤80

>80

≤100

>100

≤125

>3

≤100

>100

≤125

>3

≤40

>40

≤63

>63

≤100

>100

≤125

°C J
S235JR 235 225 215 195 360-510 350-500 26 25 24 22 +20 27

Low Carbon Steel S235jrg2 material equivalent grade:

USA Germany

DIN,WNr

Japan

JIS

France

AFNOR

England

BS

Canada

HG

European old

EN

Belgium

NBN

Spain

UNE

1015 RSt37-2 SM400A

SS400

E24-2 40B 230G Fe360BFN

S235JRG2

AE235B AE235B-FN

ASTM S235JrG2 Carbon Steel Flanges Stock List:

Carbon Steel S235JrG2 Flanges Carbon Steel S235JrG2 Forged Flanges
Carbon Steel S235JrG2 Weld Neck Flanges Carbon Steel Socket weld Flanges
Carbon Steel Long Weld Neck Flanges CS S235JrG2 Threaded Flanges
Carbon Steel S235JrG2 Orifice Flange S235JrG2 Carbon Steel Spectacle Blind Flanges
ASME SS235JrG2 Carbon Steel WNRF Flange Carbon S235JrG2 SORF Flanges
S235JrG2 Carbon Steel Lap Joint Flanges ASME SS235JrG2 Carbon Steel BLRF Flange
S235JrG2 Carbon Steel Nipoflange Carbon Steel S235JrG2 Reducing Flanges
S235JrG2 Carbon Steel Square Flanges ASME SS235JrG2 Carbon Steel SWRF Flange
Steel Tongue & Groove Flanges Chrome Moly Carbon Steel Male & Female Flanges
