Carbon Steel ASTM A420 Buttweld Fittings

ANSI B16.9 Low Temperature Steel Reducer, LTCS A420 Buttweld Fitting, Low Temperature A420 WPL6 Buttweld Pipe Fittings, Low Temperature Carbon Steel ASTM A420 WPL6 Fittings, ANSI B16.9, ANSI B16.28, MSS SP-43, or MSS SP-79 LTCS WPL6 Butt weld Pipe Fitting, Low Temperature Carbon Steel Welded Fittings, Manufacturer Of ASTM A420 WPL6 LTCS Buttweld Fittings in Mumbai, India.

LTCS ASTM A420 Weldable Butt weld Fittings, WPL6 Butt weld Pipe Fittings, ASTM A420 WPL6 Pipe Fittings, LTCS WPL6 Pipe Fittings, Low-Temperature Carbon Steel WPL6 Pipe Fitting, WPL6 Low-Temperature Carbon Steel Buttweld Fittings, LTCS A420 WPL6 Butt weld Fittings Manufacturer in Mumbai, India.

Detailed Information

Prashaant Steel & Alloys is one of the most prominent manufacturers and suppliers of Carbon Steel ASTM A420 Buttweld Fittings. In the manufacture and production of Superlative Carbon Steel ASTM A420 Buttweld Fittings, Prashaant Steel & Alloys is experienced. We manufacture the Alloy Steel WP1 Buttweld Fittings at Prashaant Steel & Alloys in a range of sizes and diameters for our clients to choose from. In terms of the production of the internationally renowned Carbon Steel ASTM A420 Buttweld Fittings, Prashaant Steel & Alloys is a popular company. In Carbon Steel, we manufacture the Carbon Steel ASTM A420 Buttweld Fittings, which gives different corrosive media high resistivity. The Carbon Steel ASTM A420 Buttweld Fittings is also designed in compliance with our customers’ needs and specifications. We supply the wrapped product with Carbon Steel ASTM A420 Buttweld Fittings packed in suitable wooden boxes to ensure minimal product deterioration for customers of Prashaant Steel & Alloys suppliers from all over the world and to ensure that the product is manufactured according to schedule. We also supply some documentation to our customers which guarantee the quality of our products. Some of the documents that we provide with our Carbon Steel ASTM A420 Buttweld Fittings Are Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc.

We are manufacturers, suppliers and exporters of LTCS A420 WPL6 Buttweld Fittings that are compliant with ASTM A420 specifications, which demand wrought carbon steel and alloy steel pipe fittings, which are seamless as well as welded, and are amenable in the pressure piping services but at low temperatures. Thereby, our LTCS A420 WPL6 Buttweld Concentric Reducers are the preferred choice in the oil and crude petroleum wells as they can progress effortlessly between pipes, having different diameters, under low pressure. They readily allow the passage of slurries and toxic liquids.

We supply LTCS A420 WPL6 Buttweld Pipe Elbow to the beverage and compressed gas industrial units as they are capable of clamping to a pipe to shield it against wear and tear. Also We offer wide range of Low Temperature Carbon Steel ASTM A420 WPL6 pipe fittings such as LTCS tee, WPL6 LTCS End Pipe Cap, ASTM A420 WPL6 LTCS reducer, A420 WPL6 Low-Temperature Carbon Steel cross, Low-Temperature Carbon Steel A420 WPL6 elbow, LTCS WPL6 stub ends etc.

Low-Temperature Carbon steel A420 wpl6 fittings that Prashaant Steel & Alloys provides, contain a small amount of carbon which increases its weldability and reduces the possibility of abridged corrosion confrontation over the weld. Prashaant Steel & Alloys. Co has made a name by offering Low-Temperature Carbon steel A420 wpl6 fittings with good weldability and high strength along with outstanding resistance to all forms of corrosion. Our Fittings also carry qualities and features like Impeccable hole alignment; they are Chemical resistant and are easy to erect. These Fittings are suitable for getting operated at high-pressure conditions. We provide these Fittings with lightweight, high efficiency, and high performing ability.

Standard Specification For Carbon Steel ASTM A420 Pipe Fittings:

Specifications : ASTM A420 / ASME SA420

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type : Seamless / Welded / Fabricated

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Grades : A420 WPL3 / A420 WPL6

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Most Commonly Used A420 Grade WPL6 Fitting Types

Inconel Products

ASTM A420 WPL6 Cross Tee

Inconel Products

A420 Grade WPL6
Return Bends

A182 AS F9 Weldoflange
Inconel Products

SA 420 WPL6 Equal Tee

Inconel Products

LTCS A420 WPL6 Cross
fitting

A182 AS F9 Weldoflange
Inconel Products

Carbon Steel LTCS A420
WPL6 Eccentric Reducer

Inconel Products

Material A420 WPL6
Concentric Reducer

A182 AS F9 Weldoflange
LTCS A420 WPL6 Equivalent
Material Pipes Fttg Flg Valves Bolts and Nuts
Carbon Steel
Alloy
Low-Temp
A333 Gr 6 A420 Gr WPL6 A350 Gr LF2 A352 Gr LCB A320 Gr L7
A194 Gr 7
A333 Gr 3 A420 Gr WPL3 A350 Gr LF3 A352 Gr LC3
ASTM A420 WPL6 Chemical Composition
Grade C Mn P S Si
WPL6(1)(2) 0.3 0.60-1.35 0.035 0.04 0.15-0.30
WPL9 0.2 0.40-1.06 0.03 0.03
ASTM A420 WPL6 Mechanical Properties
Tensile Requirements WPL6 Fittings WPL9 Fittings
Tensile Strength
min, ksi [MPa]
60-85[415-585] 63-88[435-610]
Yield Strength
min, ksi [MPa]
35[240] 46[315]

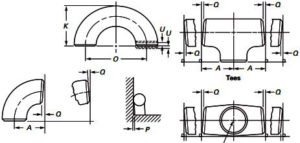

A420 WPL6 Fittings Dimensionsroperties

NPS (Normal Pipe Size) O.D. (Outside Daimeter) Elbow 90 Deg Elbow 45 Deg Return Elbow 180 Deg
(inch) Long Radius Elbow Short Radius Long Radius Elbow Long Radius Elbow
(millimeter/ MM) (inch./ Inches) Center to Face
(Inches)
Center to Face
(Inches)
Center to Face
(Inches)
Radius
(Inches)
Center to Center
(Inches)
Back to face
(Inches)
1/2 21.3 0.840 1 1/2 5/8 2 1 7/8
3/4 26.7 1.050 1 1/8 7/16 2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8 3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1 3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8
ASTM A420 WPL6 Pipe Fittings Size Chart
O.D. or I.D. Diameter Equivalent Decimal Nominal Diameter Typical Threads In Inch
5/16 0.313 1/16 27
13/32 0.405 1/8 27
35/64

0.540

1/4 18
43/64 0.675 3/8 18
27/32 0.840 1/2 14
1-3/64 1.050 3/4 14
1-5/16 1.315 1 11-1/2

1-21/32

1.660 1-1/4 11-1/2
1-29/32 1.900 1-1/2 11-1/2
2-3/8 2.375 2 11-1/2
2-7/8 2.875 2-1/2 8
3-1/2 3.500 3 8
4 4.000 3-1/2 8
4-1/2 4.500 4 8
Low Temperature Buttweld Fittings Pressure Rating
Pressure-Temperature ratings for ASTM A420 WPL6 Buttweld Pipe Fittings (psig)
Temperature Ratings Pressure Class
150 300
1/4 – 1 inch. 1 1/4 – 2 inch. 2 1/2 – 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 935 750 560
450 232 725 600 475
500 260 510 450 385
550 288 300 300 300
