Hastelloy Valves B3 | Hastelloy Valve Manufacturer

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

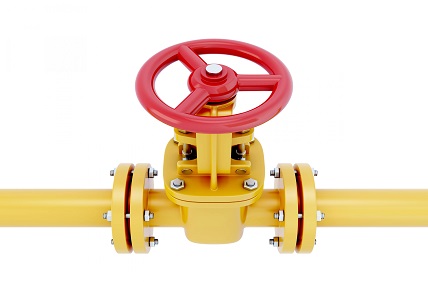

ASTM A494 Hastelloy B3 Gate Valves Exporter

Hastelloy Valves  B, B2, B3, C, C22 and C276, ASTM B435 Hastelloy B3 Ball Valves, Hastelloy ASME B16.5, B16.10, B16.25, B16.34 Valves, UNS N10665 Hastelloy B3 Double Block And Bleed Valves, Low-cost Range of ASTM A494 Hastelloy B3 Manifold Valves in Mumbai India.

Detailed Information

Hastelloy B3 Valves are Valves of excellent corrosion resistance that are suitable for use in a variety of acidic conditions. These vessels are more structurally stable than most comparable alloy vessels, and they’re simple to assemble and weld. Hastelloy B3 Valves are ductile and withstand stress corrosion cracking in liquids with high chloride levels. They can tolerate a variety of fluoride media as well as bearings containing concentrated sulfuric acid. Furthermore, Hastelloy B3 Valves have excellent thermal stability as well as pitting and corrosion resistance. Also after exposure to intermediate temperatures, they are known to maintain their ductility. Hastelloy B3 Valves are ideal for applications including pure hydrochloric, hydrobromic, and sulfuric acids in a variety of reduction conditions. They are also resistant to phosphoric, acetic, and formic acids, as well as non-oxidizing media. Hastelloy B3 Valves are typically found in non-oxidant piping systems.

The ASME SA494 UNS N10276 Hastelloy B3 Valves are made of copper, chromium, molybdenum, and tungsten. The ASTM A494 Hastelloy B3 Valves have better pitting and stress corrosion resistance. Such fittings also have optimum resistance in conditions where temperatures are considered to be reducing and oxidizing. The chromium content of Hastelloy B3 Valves contributes to improved oxidation resistance. Nickel allows the fittings to tolerate wet chlorine and nitric acid mixtures with greater resistance. Due to hardening work during manufacturing, the ASTM A494 Hastelloy B3 Valves can require intermediate annealing instead of adequate ductility. The fittings should be made at temperatures between 1750 and 2050 degrees Fahrenheit, and rapid cooling may be needed.

ASME SA494 Hastelloy B3 Valves have a wide range of applications and can be found in a number of industries. The ASME SA494 Hastelloy B3 Valves are used in pharmaceutical and food processing equipment. Pulp and paper processing, as well as sour gas fields, are two of the ASME SA494 Hastelloy B3 Valves applications. Rack liners, ducts, and dampers for pollution control are also made from ASME SA494 Hastelloy B3 Valves. Chemical manufacturing, specialist chemical companies, and gas processing businesses are among the industries that use Hastelloy B3 Valves in their applications. They’re also used in the insecticide and herbicide manufacturing industries. Many of the other uses are in the manufacture of high-octane oil, ethylene glycol, and ethylbenzene. Hastelloy B3 Valves and Fittings have used in the manufacturing of cellophane, fertilizers, incineration scrubber systems, and industrial plants in equipment like flue gas scrubbers and chlorination systems.

Before selling to customers, we conduct several quality tests on our products. Such tests are conducted to determine our final results for every possible query. Some of the tests that we conduct are Mechanical Testing Such as Tensile of Area, Positive Material Identification – PMI Testing, Chemical Analysis – Spectra Analysis, Micro and Macro Test, Intergranular Corrosion (IGC) Test. We at Prashaant Steel & Alloys also supply our goods with other documents and certificates. The certificates guarantee the price we have of Hastelloy ASME SA494 UNS N10276 Fittings. Some of the documents that we provide include Fumigation Certificates, Raw Material Test Reports, Material Traceability Records, Certificate of Origin legalized/attested by Chamber of Commerce or Embassy, etc. are some of the certificates we provide.

Specification of Hastelloy B3 Valve:

Manufacturer of WAO-LOC

STANDARDS : API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34

SIZE: 1/8” to 16”

PRESSURE RATING : 150#,300#,600#,800#,1500#.

END CONNECTION: Screwed [NPT], Socket Weld, Flanged End, Screwed Parallel, Screwed Taper

ASME SB564 Hastelloy B3 Valves Chemical Composition:

Grade Ni Mo Cr Fe W Mn C Al Ti Si
Hastelloy B3 65.0 min 28.5 1.5 1.5 3.0 max 3.0 max 0.01 max 0.50 max 0.2 max 10 max
Hastelloy B3 Valves Mechanical Properties:
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
9.2 g/cm3 1370 °C (2550 °F) Psi – 1,15,000 , MPa –760 Psi – 52,000 , MPa – 350 40%

Equivalent Grades for B3 Hastelloy Valves:

STANDARD WERKSTOFF NR. UNS
Hastelloy B3 2.4600 N010675
Types of Hastelloy B3 Ball Valve material:

  • Largest Supplier of Hastelloy B3 Manual Valves
  • Nickel Alloy B3 Lined Valves
  • A494 Hastelloy B3 Balancing valves
  • Type B3 Hastelloy Alloy Class 300 Pressure Seal Valves Vendors
  • Alloy B3 Nuclear Valves
  • ASME SA494 Hastelloy Alloy B3 Dual Plate Check Valves
  • ASME SA494 Hastelloy B3 Instrumentation Valves Wholesalers
  • B3 Hastelloy 600# Pressure Class Gate Valve
  • Hastelloy B3 Globe Valve
  • Get a Discounted offer on Alloy B3 Bellows Sealed Valve
  • Alloy B3 Stop Check Valves
