ASTM A694 Carbon Steel Forged Fittings

High Yield CS A694 Forged Fittings, Socket Weld High Yield Carbon Steel Forged Fittings, Carbon Steel A694 Forged Fittings, ASTM A694 F60 Fittings, ASTM A694 F60 Forged Pipe Fittings, ASTM A694 F65 Forged Fittings

Detailed Information

Prashaant Steel & Alloys is one of the most prominent manufacturers and suppliers of ASTM A694 Carbon Steel Forged Fitting. In the manufacture and production of Superlative ASTM A694 Carbon Steel Forged Fitting, Prashaant Steel & Alloys is experienced. We manufacture the Alloy Steel WP1 Buttweld Fittings at Prashaant Steel & Alloys in a range of sizes and diameters for our clients to choose from. In terms of the production of the internationally renowned ASTM A694 Carbon Steel Forged Fitting, Prashaant Steel & Alloys is a popular company. In Carbon Steel, we manufacture the ASTM A694 Carbon Steel Forged Fitting, which gives different corrosive media high resistivity. The ASTM A694 Carbon Steel Forged Fitting is also designed in compliance with our customers’ needs and specifications. We supply the wrapped product with ASTM A694 Carbon Steel Forged Fitting packed in suitable wooden boxes to ensure minimal product deterioration for customers of Prashaant Steel & Alloys suppliers from all over the world and to ensure that the product is manufactured according to schedule. We also supply some documentation to our customers which guarantee the quality of our products. Some of the documents that we provide with our ASTM A694 Carbon Steel Forged Fitting Are Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc.

ASTM A694 / A694M – 08 specification covers forged or rolled steel pipe flanges, forged fittings, valves, and parts suitable for use with high-strength transmission-service pipe. ASTM A694 Forged Fittings material is often selected for its high yield capabilities combined with its excellent low temperature toughness and weldability. Forgings are designed in accordance with the applicable standards to maximize material strength which ensures high performance in some of the most demanding industries.

We are a manufacturer, supplier and exporter of High Yield CS A694 Forged Fittings which are light-weight yet contain the capacity to hold high pressures, are easy to assemble and dismantle and are durable. Our range of High Yield Carbon Steel A694 Forged Fittings include all types of conventional as well as customised Forged Fittings compliant to ASTM A694 specification in grades F42/F46/F52/F56/F60/F65/F70. Our High Yield CS A694 F65 Socket Weld Forged Tees are durable, economically viable, are high temperature and high pressure resistant and are available in both seamless and welded types, making them commercially useful in the textile automotive, marine and chemical processing industry.

We supply High Yield CS A694 F46 Screwed-Threaded Reducers to the pneumatic and hydraulic systems, which have a minimum yield strength of 46 ksi and are available in both concentric and eccentric reducer types. Also We offer wide range of High Yield ASTM A694 Forged Fittings such as High Yield A694 Forged Elbow, A694 High Yield Equal Tee, ASTM A694 F42 High Yield Coupling, High Yield F46 Pipe Cap, High Yield Union, High Yield F52 ASTM A694 Bushing, High Yield F56 Plug, High Yield F60 A694 Pipe Nipple, High Yield F70 A694 Street Elbow.

ASTM A694 Carbon Steel Forged Fittings Specification:

ASME SA694 High Yield CS Forged Fittings Specifications

ASTM A182 & ASME SA182

High Yield Carbon Steel Fittings Dimension Specification

ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

High Yield CS Socket Weld Forged Fittings Thread

NPT, BSPT, BSPP

High Yield CS ASME B16.5 Forged FittingsType

DN15-DN1200

End

Threaded, Welding, JIC

ASTM A694 Threaded Forged Fittings Pressure Rating

Threaded end-2000lb/ 3000lb/ 6000lbs Pipe Fittings

Socket-weld end-3000/ 6000/ 9000lbs Pipe Fittings

Connection

Welding

ANSI B16.5 High Yield Fittings Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings

Carbon Steel ASTM A694 Forged Fitting Size Range

½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)

ANSI High Yield CS Threaded Forged Fitting Manufacturing process

Push, Press, Forge, Cast, etc.

ASTM A694 High Yield Forged Fittings Manufacturing Standards :

ASTM A694 – ASME SA694 Standard Specification for Wrought Austenitic High Yield Piping Fittings
ASME B16.11 Socket Welding and Threaded Forged Fittings
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry



High Yield Carbon Steel A694 F42 Threaded and Socket Weld Pipe Fittings
Forged ASTM A694 High Yield Fittings Types Size
ASTM A694 High Yield 90° Elbows High Yield Carbon Steel ASTM A694 Unions Sizes 1/8″– 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
ASTM A694 High Yield Forged Tees ASTM A694 High Yield Carbon Steel 45° Elbows
ASTM A694 High Yield Forged Caps ASTM A694 High Yield Couplings
High Yield Carbon Steel ASTM A694 F42 Forged Cross ASTM A694 High Yield Carbon Steel Forged Plug
ASTM A694 High Yield Bushings ASTM A694 High Yield Carbon Steel Street Elbows
ASTM A694 High Yield CS Inserts ASTM A694 High Yield Carbon Steel Pipe Nipple



Types Of High Yield Forged Fittings
Inconel Products

ASTM A694 High Yield Forged 90 Degree Elbow

Inconel Products

ASTM A694 High Yield Forged 45 Degree Elbow

A182 AS F9 Weldoflange
Inconel Products

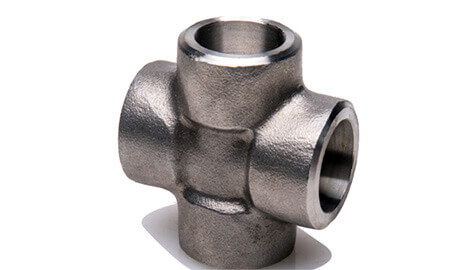

ASTM A694 High Yield Forged Socket Weld Cross

Inconel Products

ASTM A694 High Yield Socket Weld Half Coupling

A182 AS F9 Weldoflange
Inconel Products

ASTM A694 High Yield Socket Weld Cap

Inconel Products

ASTM A694 High Yield Threaded / Screwed Union

A182 AS F9 Weldoflange
Inconel Products

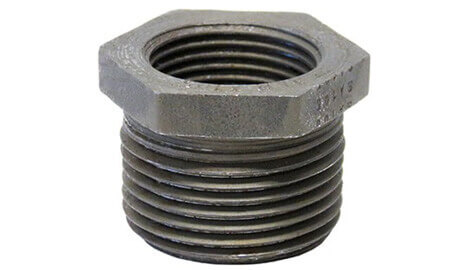

ASTM A694 High Yield Threaded / Screwed Bushing

Inconel Products

ASTM A694 High Yield Threaded Street Elbow

A182 AS F9 Weldoflange
ASTM A694 High Yield Fitting Chemical Composition
Chemical Composition of ASTM A694, Heat Analysis, %
Carbon [C] ≤0.30
Manganese [Mn] ≤1.60
Phosphorus [P] ≤0.025
Sulfur [S] ≤0.025
Silicon [Si] 0.15-0.35
High Yield ASTM A694 Fitting Mechanical properties
ASTM A694 Grade Yield Strength min. Tensile Strength min. Elongation min.
MPa ksi MPa ksi %
F42 290 42 415 65 20
F46 315 46 415 60 20
F48 330 48 425 62 20
F50 345 50 440 64 20
F52 360 52 455 66 20
F56 385 56 470 68 20
F60 415 60 515 75 20
F65 450 65 530 77 20
F70 485 70 565 82 18



ASME SA694 High Yield CS Threaded Cross Pipe Fitting:

ASTM A694 Threaded Cross Fitting

High Yield Carbon Steel NPT Cross Fitting

ANSI B16.5 High Yield Threaded Cross Pipe Fitting

High Yield CS A694 Screwed Cross Fitting

ASME SA694 Forged Threaded Cross

ASTM A694 High Yield CS Threaded Fittings Cross

High Yield CS ASME B16.5 Screwed Equal Cross

ASME B16.5 High Yield NPT Cross Fitting

Carbon Steel ASTM A694 Threaded Cross Pipe Fitting

ASME SA694 High Yield CS NPT Cross

CS ASTM A694 Screwed Cross Fitting

High Yield CS Threaded Cross
