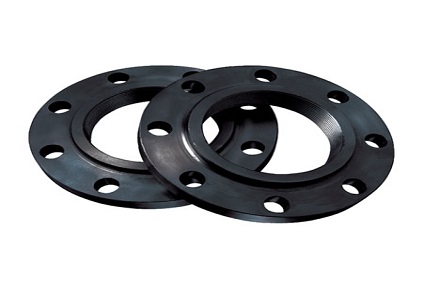

ASTM A694 Gr F65 Flange

SA694 F42 Slip-on Flanges, Low-Temperature Carbon Steel A694 F70 Weld neck flange manufacturer in India, ASME B16.5 SA 694 Grade F60 Blind Flange in Mumbai.

ASME SA694 High Yield CS F52 Slip On Flange, ASTM A694 F65 Blind Flange suppliers in India, ASME SA694 High Yield CS F52 Slip On Flange, ASTM A694 F65 Blind Flange suppliers in India

Detailed Information

Prashaant Steel & Alloys is a major retailer and producer of ASTM A694 Gr F65 Flange. The ASTM A694 Gr F65 Flange is among the most common grades of stainless steel circles and is commonly used in different industries. At Prashaant Steel & Alloys, we make sure that the ASTM A694 Gr F65 Flange is manufactured utilizing the highest standard of raw materials and cutting-edge technology. Prashaant Steel & Alloys’s ASTM A694 Gr F65 Flange has built a niche in the market thanks to the superlative power and dimensional precision that these ASTM A694 Gr F65 Flange give. We also produce these ASTM A694 Gr F65 Flange according to our client’s requirements and demands. All Prashaant Steel & Alloys goods undergo multiple checks before distribution. Some of the tests that our ASTM A694 Gr F65 Flange go through are the Intergranular corrosion (IGC) Test, Pitting Resistance Test, Flattening Test, Micro, and Macro Test.

The standards vary as ANSI, ASME, DIN, and EN flange standards. The ASTM A694 f65 flanges have a yield strength of 65ksi and the sizes of the flanges range from ½ inches to 48 inches. There are also different pressure classes ranging from #150 to #2500. The pressure capacities of the ASTM A694 f42 flanges can also be expressed in pressure numbers ranging from PN6 through PN64. There are different types of flanges such as the flat face, raised face, and ring type joint based on the face type. The ASTM A694 f60 flanges also come in different functional types such as blind flanges, reducing flanges, welded neck flanges, and so on. Each different type of flanges is used in different application types. The ASTM A694 f70 flange has the most minimum yield strength of ksi. The material used to make these flanges have carbon, manganese, phosphorus, sulfur, and silicon. These are carbon steel flanges. Prashaant Steel & Alloys is a leading manufacturer and supplier of the different types of flanges in this specification.

There are different types of flanges and Navstar Steel is a leading supplier of all types of flanges in this specification. The ASTM A694 F65 Blind Flange is used to terminate a pipe connection. The flanges, fittings, valves, and other components in the A694 specification are meant for high-pressure transmission service. So the Carbon Steel ASTM A694 F70 Flange can be seen in the petrochemical, oil, and gas, and in nuclear power industrial applications. The different types of flanges are used for different connection types.

ASME SA694 CS F52 Slip On Flange Specification Schedule:

Specifications ASTM A694 / ASME SA694
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI, ASME, BS, DIN, EN etc.
Grades F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60
Size 1/2″ to 48″
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

ASTM A694 F65 Blind Flange Composition Standard:

Element F42 Content, % F52 Content, % F60 Content, % F65 Content, % F70 Content, %
Carbon (C) 0.13~0.20 0.16~0.22 0.17~0.23 0.17~0.23 0.06~0.10
Silicon (Si) 0.20~0.40 0.15~0.40 0.15~0.40 0.15~0.40 0.20~0.40
Manganese (Mn) 1.20~1.60 1.10~1.40 1.20~1.50 1.30~1.60 1.10~1.40
Phosphorous (P) ≤ 0.030 ≤ 0.025 ≤ 0.020 ≤ 0.025 ≤ 0.020
Sulfur (S) ≤ 0.020 ≤ 0.012 ≤ 0.012 ≤ 0.015 ≤ 0.010
Molybdenum (Mo)   0.20~0.35 0.45~0.60 0.45~0.65 1.20~1.70
Nickel (Ni) ≤ 0.30 ≤ 0.50 0.40~1.00 ≤ 0.30 0.20~0.40
Chromium (Cr) ≤ 0.30 ≤ 0.30 ≤ 0.25 ≤ 0.30 ≤ 0.30
Copper (Cu) ≤ 0.25 ≤ 0.25 ≤ 0.25 ≤ 0.25 ≤ 0.25
Vanadium (V)     ≤ 0.050   0.02~0.06
Niobium (Nb)       0.025~0.050
Pcm         ≤ 0.25
Carbon Equivalent ≤ 0.48 ≤ 0.48 ≤ 0.48 ≤ 0.43 ≤ 0.48



Carbon Steel ASTM A694 F70 Flange Mechanical Characteristics:

ASTM A694 Grade Yield Strength min. Tensile Strength min. Elongation min.
MPa ksi MPa ksi %
A694 F42 FLANGES 290 42 415 65 20
A694 F46 FLANGES 315 46 415 60 20
A694 F48 FLANGES 330 48 425 62 20
A694 F50 FLANGES 345 50 440 64 20
A694 F52 FLANGES 360 52 455 66 20
A694 F56 FLANGES 385 56 470 68 20
A694 F60 FLANGES 415 60 515 75 20
A694 F65 FLANGES 450 65 530 77 20
A694 F70 FLANGES 485 70 565 82 18

Types of Carbon Steel A694 Flange:

  • Astm A694 F65 Flanges
  • Carbon Steel F65 Flanges
  • Carbon Steel F65 Loose Flanges
  • CS ASTM A649 Screwed Flanges Exporter
  • CS A694 BLRF Flanges
  • ASTM A694 F65 Plate Flanges Exporter
  • CS A694 F65 Threaded Flanges Stockist
  • CS A694 F65 Industrial Flanges Manufacturer
  • ASTM A694 F65 Socket Weld Flanges
  • ASTM A694 F65 Flanges Supplier
  • Carbon Steel Pipe Fittings
  • Carbon Steel A694 Buttweld Fittings
  • ASTM A694 F65 Slip On Flanges
  • ASTM A694 F65 Weld Neck Flanges
  • CS Long Weld Neck Flanges
  • Grade F65 CS Awwa Flanges
  • Carbon Steel High Yield F65 Body Flanges
  • ASTM F694 Blind Flanges
  • CS A694 F65 Threaded Flanges
  • Carbon Steel Paddle Blank Flanges
  • A694 CS Paddle Spacer Flanges Manufacturer
  • ASTM A694 F60 Flanges
  • ASTM A694 F65 Ring Joint Flanges
  • ASTM, ASME Flanges
  • Carbon Steel RTJ Flanges Stock Holder
  • CS Forged Flanges
