Hastelloy Products

Hastelloy C276 Flanges/ Hastelloy UNS N10276 Flanges

[wpseo_breadcrumb]

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

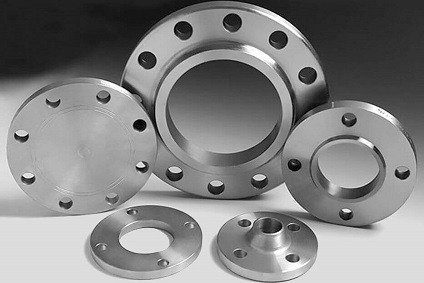

Hastelloy C276 Flanges/ Hastelloy UNS N10276 Flanges

Hastelloy UNS N10276 Orifice Flanges, Hastelloy C276 Ring Type Joint Flange, ASTM A/ASME SB564 Alloy C276 Blind RTJ Flanges, Hastelloy Screwed Flanges, ASTM B564 C276 Hastelloy Threaded Flanges Exporters and Suppliers in Mumbai, India.

Hastelloy Lap Joint Flanges, ANSI B16.9 Hastelloy C276 Welded Flanges, C276 Socket Weld Flange, Hastelloy C276 SORF Flanges, Supplier of Alloy C276 Ring Joint Type Flanges, Hastelloy DIN 2.4819 Weld Neck Flanges Exporter in India.

Detailed Information

Hastelloy C276 Flanges are made and supplied by Prashaant Steel & Alloys. Prashaant Steel & Alloys uses only the best quality raw materials to make ASTM B564 Hastelloy C276 Flanges. All international and national requirements are met by the Flanges we manufacture from Hastelloy C276. We intend to sell Hastelloy UNS N10276 Flanges that are ideal for a range of applications and satisfy our customers’ needs. The ASTM B564 Hastelloy C276 Flanges are available in a range of sizes and dimensions. We also accept custom orders and manufacture Hastelloy C276 Flanges in compliance with our customers’ preferences. Prashaant Steel & Alloys is an industry-leading designer and manufacturer of Hastelloy C276 Flanges. The ASTM B574 Hastelloy C276 Flanges that we produce have gained a reputation in the industry for their longer service life and improved reliability. Prashaant Steel & Alloys produces UNS N10276 Hastelloy Flanges from the finest quality raw materials present in the industry. To ensure that the Hastelloy C276 Flanges have high strength and stability, the Prashaant Steel & Alloys manufacturing process uses modern manufacturing methods.

Hastelloy C276 Flanges can be cold worked by all conventional methods. These Hastelloy C276 Flanges withstands the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide. Hastelloy C276 Flanges should be considered for use in environments where resistance to hot contaminated mineral acids, organic and inorganic chloride – contaminated media, chlorine, formic and acetic acids, acetic, acetic anhydride, sea water and brine solutions is desired. Meanwhile, these Hastelloy C276 Lap Joint Flanges are also being offered in customized sizes and shapes to our customers. Similar properties of Hastelloy C276 Flanges are found in silicon – chromium steels, in chromium steels of high nickel – content, in chromium – tungsten steels, and in the high – chromium steels, the last mentioned being called stainless steel. When liquid quenching is impractical (because of the danger of cracking or distortion, or because of cost), various low – carbon nickel or nickel – molybdenum steels such as these Hastelloy C276 Flanges in the normalized – and – tempered condition can be used for low – temperature service.

ASTM B564 Hastelloy C276 Flanges have a wide range of applications and are used in a number of industries. Pharmaceuticals and food processing machines are made with Hastelloy C276 Flanges. Pulp and paper manufacturing, as well as sour gas wells, are some of the uses for Hastelloy UNS N10276 Flanges. Pollution protection rack liners, ducts, and dampers are also made of Hastelloy C276 Flanges.

We at Prashaant Steel & Alloys conduct several tests on our products before delivering them to our customers. The tests help us to fix any manufacturer errors and assure complete customer satisfaction. Some of the tests that our products go through are Mechanical Testing Such as Tensile of Area, Positive Material Identification – PMI Testing, Chemical Analysis – Spectra Analysis, Micro and Macro Test.

We also provide certain documents with our Hastelloy C276 Flanges, which are an assurance of the quality of our deliveries. 100% Radiography Test Report, Third Party Inspection Report, Raw Materials Certificate, Fumigation Certificates, Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, and Certificate of Origin legalized/attested by Chamber of Commerce or Embassy.

Hastelloy C276 Flanges Specification:

Specifications: ASTM B564 / ASME SB564

Dimensions: ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799

Size: 1/8″ NB to 4″ NB (Socket weld & Screwed-Threaded)

Type: Socket weld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure: Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS

Hastelloy C276 Flanges Chemical Properties:



Grade

C

Mn

Si

S

Co

Ni

Cr

Fe

Mo

P

C276

0.01 max

1.00 max

0.08 max

0.03 max

2.50 max

50.99 min*

14.50 – 16.50

4.00 – 7.00

15.0 – 17.0

0.04 max

Hastelloy C276 Flanges Mechanical Properties:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52000 , MPa – 355 40 %

Equivalent Grades of ASME SB564 Hastelloy C276 Flanges:

STANDARD C276
WERKSTOFF NR. 2.4819
UNS N10276
JIS NW 0276
GOST ХН65МВУ
EN NiMo16Cr15W
OR ЭП760

Types of  Hastelloy C276 Flanges:

  • ANSI B16.5 Hastelloy Flanges
  • Hastelloy C276 Reducing Flanges
  • ASTM B160 Hastelloy Weld Neck Flanges
  • Hastelloy Alloy Blind Flanges
  • Hastelloy ASTM B564 Weld Neck Flanges
  • ASTM B472 Screwed Threaded Flanges
  • ASME SB 160 Hastelloy Loose Flanges
  • Hastelloy Lap Joint Flanges Exporter
  • ANSI 16.47 Hastelloy BLRF Flanges
  • Hastelloy C22 WNRF Flanges
  • Hastelloy Nipo Flanges Exporter
  • Hastelloy slip-on flanges Supplier,
  • ASME SB 564 Hastelloy blind flanges
  • Hastelloy Alloy Lap Joint Flanges
  • Hastelloy Ring Type Joint Flanges Exporter
  • Hastelloy Long Weld Neck Flanges
  • Hastelloy C276 Socket Weld Flanges
  • ASME Hastelloy Reducing Flanges
  • Hastelloy Lap-Joint Flanges Suppliers
  • ASME SB 564 Threaded Flanges Suppliers
  • Hastelloy ASME SB 472 Slip-On Flanges
  • AISI B16.48 Hastelloy Flanges
  • Hastelloy Alloy Flanges Exporter
