Incoloy Products

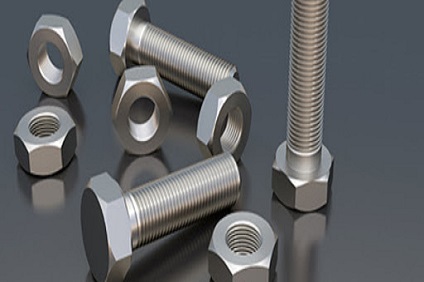

ASTM B408 Incoloy 800H/ 800HT Fasteners/ UNS N08800 Incoloy Fasteners
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Alloy 800/800H/800HT Nuts, Low-cost Range of Incoloy 800HT Bolts, Incoloy 800 Grub Screw, ASTM B408 Incoloy Nut, Worldwide Suppliers of DIN 1.4959 Incoloy Hex Cap Screws, Incoloy 800 Cup Point, Austenitic Incoloy 800/800H/800HT Bolt/Nut Suppliers and Exporters in Mumbai, India.
UNS N08800/ N08810 / N08811 Split Lock Washers Manufacturers, Incoloy 800 Cone Point, Incoloy 800 wing Nut, B408 Alloy 800H U Bolt, Global Exporters of Grade 800 Incoloy Alloy Cap Nuts, Incoloy 800 Dog Point, ASME SB408 Incoloy 800HT Square Washers Stockists in India.
Detailed Information
Prashaant Steel & Alloys is a well-known name in the industry for manufacturing and distributing Incoloy 800 Fasteners. Prashaant Steel & Alloys uses the best available raw materials to produce ASTM A408 Incoloy 800 Fasteners that are suitable for use in a number of industries. We produce the Incoloy UNS N08800 Fasteners in compliance with international and national quality standards. We manufacture the Incoloy 800 Fasteners in our well-equipped factory, which houses both new equipment and state-of-the-art technologies, enabling us to produce the ASTM A408 Incoloy 800 Fasteners in a range of shapes and sizes. We also welcome custom orders from customers and produce Incoloy UNS N08800 Fasteners according to their requirements. Prashaant Steel & Alloys is a well-known brand in the industry for manufacturing and distributing Incoloy 800 Fasteners. Prashaant Steel & Alloys aims to have only the best performing ASTM A408 Incoloy 800 Fasteners. We use the finest quality raw materials from our vast inventory to produce Incoloy UNS N08800 Fasteners with outstanding oxidation resistance.
Incoloy 800 Fasteners are nickel-chromium-iron alloy fasteners that exhibit resistance to carburization and oxidation in soaring temperature circumstances. These fasteners maintain their austenitic structure and remain stable after long-term exposure. These possess good resistance to aqueous, oxidizing, and reducing environments. These fasteners are mainly applicable in temperatures up to 1100 degrees.
Incoloy 800 Bolts resist oxidation and carburization at high temperatures. The chemical balance allows the Incoloy 800H Square Nuts to exhibit excellent resistance to carburization, oxidation, and nitriding atmospheres. For the first time, aluminum and titanium were listed as purposeful additions, and annealed Incoloy 800HT U-Bolts were differentiated from solution – annealed material. Incoloy 800 Lock Nuts will not become embrittled even after long periods of usage in the 1200 Degree F – 1600 Degree F range where many stainless steels become brittle. The restricted chemical compositions, combined with the high temperature anneal, assure these materials have greater creep and rupture strength when compared to Incoloy 800H Bolts.
Applications for ASTM A408 Incoloy 800 Fasteners can be used in a number of industries. Fasteners Incoloy 800 are used in a number of sectors, including chemical and petrochemical processing. Heat-treating machines and heat exchangers are also made with the aid of Incoloy UNS N08800 Fasteners. Superheaters and reheaters in power plants and commercial furnaces are some of the other uses for Incoloy 800 Fasteners. They’re used in the manufacturing of carburizing machines. Ammonia effluent coolers and process piping systems also use Incoloy Fasteners. Other uses for Incoloy 800 Fasteners include steam methane recirculation.
These records act as evidence of our goods’ good quality. With our Incoloy 800 Fasteners, we even include a few papers. These records act as evidence of the good quality of our goods. Some of the documents that we provide include Raw Materials Certificate, 100% Radiography Test Report, Fumigation Certificates, Material Traceability Records, and Test Certificates certifying NACE MR0103, NACE MR0175.
We at Prashaant Steel & Alloys also conduct several quality tests on our products before deliveries. Some of the tests that our ASTM A408 Incoloy 800 Fasteners undergo are Mechanical Testing Such as Tensile of Area, Chemical Analysis – Spectra Analysis, Positive Material Identification – PMI Testing, Flattening Test, Intergranular Corrosion (IGC) Test, etc.
Alloy 800/800H/800HT Bolt/Nut Specifications:
Specifications | : | ASTM B 408 ASME SB 408 |
Standard | : | DIN, ASTM, BS and all International Standards |
Length | : | 3 mm to 200 mm |
Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Type | : | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Countersunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts |
800/ 800H/ 800HT Incoloy Alloy Bolt/Nut Chemical Composition:
Grade | C | Mn | Si | Fe | S | Cr | Al-Ti | Ni | |
800 | min. | – | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
800H | min. | 0.05 | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
800HT | min. | 0.06 | – | – | 39.5 | – | 19.0 | 0.85/0.25 | 30.0 |
max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 1.20/0.60 | 35.0 |
Incoloy Alloy 800/ 800H/ 800HT Bolt/Nut Mechanical Properties:
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
800-H-HT | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa –205 | 30 | – | – |
Equivalent Grades for 800 / 800H / 800HT Incoloy Bolt/Nut:
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Prices of 800 / 800H / 800HT Incoloy Bolt/Nut:
Description | Per Unit (INR) | Price in USD | Price in EURO |
---|---|---|---|
Incoloy 800ht Stud Bolt To Astm B 564 Gr. Uns No.8811, Nace Mr-0175. Size: M 30x 3.5 Pitch X 343 Mm Long | 7,690 | 104.24 | 87.40 |
Incoloy 800ht Stud Bolts In Gr. Uns No.8811 Nace Mr-0175., Sz. M 30 X 3.5mm Pitch X 270mm Long | 5,202 | 70.51 | 59.12 |
Incoloy 800ht Stud Bolts In Gr. Uns No.8811 Nace Mr-0175., Sz. M30 X 3.5 Mm Pitch X 343 Mm Long | 6,440 | 87.29 | 73.19 |
66a-nuts/bolts/screws/washer Made Of Alloysteel Including Stainless Steel-incoloy 800h Studbolt 1 1/4 Inch X 235 Mm Long | 3,207 | 43.47 | 36.45 |
66a-nuts/bolts/screws/washer Made Of Alloysteel Including Stainless Steel-incoloy 800h Heavy Hex Nut 1-1/4 Inch -8 Un (2 | 1,685 | 22.84 | 19.15 |
66a-nuts/bolts/screws/washer Made Of Alloysteel Including Stainless Steel-incoloy 800h Studbolt 1 1/4 Inch X 265 Mm Long | 3,478 | 47.14 | 39.53 |
Types of Incoloy 800/800H/800HT Bolt/Nut:
- Alloy 800/800H/800HT Hex Head Bolt
- 800 Alloy Hex Head Bolt
- Incoloy 800 Grub Screw
- 800H Incoloy Hex Head Bolt
- UNS N08800 Hex Head Bolt
- WERKSTOFF NR. 1.4876 Hex Head Bolt
- ASTM B408 Incoloy 800HT Hex Head Bolt
- Incoloy 800 Cup Point
- Alloy 800/800H/800HT Square Bolt
- 800 Alloy Square Bolt
- Incoloy 800H Square Bolt
- Incoloy 800 Cone Point
- 800HT Incoloy Square Bolt
- UNS No8810 Square Bolt
- WERKSTOFF NR. 1.4958 Square Bolt
- Incoloy 800 Dog Point
- ASTM B408 800HT Incoloy Square Bolt
