DIN 11850 Pipe Fittings, Supplier of DIN 1185o 45 degree Elbow, SS DIN 11852 Pipe Bend, DIN 11864 Short Radius Elbow Supplier, DIN 11850 Pipe Elbow, DIN 11852 Cross Exporter in India.
DIN 11850 Pipe Bend, DIN 11852 Long Stub, Stainless Steel DIN 11864 Seamless Pipe Fittings, DIN 11850 90 degree Elbow Exporters and Suppliers in Mumbai, India.
Detailed Information
Prashaant Steel & Alloys is a major producer and supplier of Stainless Steel DIN 11850 Fittings. The SS DIN 11850 Fittings that we produce at Prashaant Steel & Alloysare commonly used in the industry due to their superior consistency and dimensional accuracy. Prashaant Steel & Alloys manufactures and sells Stainless Steel DIN 11850 Fittings in different sizes and dimensions per our customers’ requirements. We believe in total customer loyalty, which is why we produce the DIN 11850 Fittings, which are incredibly tough even at cryogenic temperatures. The DIN 11850 Fittings have non-reactive properties, allowing them to be used in a wide variety of applications, including the manufacturing of medical and surgical instruments. For the development of DIN 11850 Fittings at Prashaant Steel & Alloys, we use some of the best raw materials available, resulting in superior DIN 11850 Fittings.
Out of all the tube connection methods, the welded connection is the cheapest and the most reliable one. There is a complete range of hygienic weld fittings and valves available for use with EN 10357 B tubes; this range is standardized as DIN 11852.
The range contains tees, reduced tees, bends (45°, 90°, 180°), y-pieces and reducers. With these parts you can design every welded process line you need.
DIN 11852 fittings are readily available in almost every country, usually in diameters up to DN150 and in both materials: AISI 304L and AISI 316L.

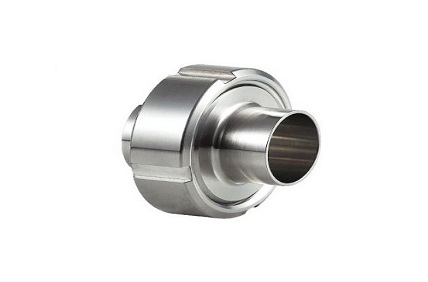

DIN 11864 is a stainless steel fitting series for the aseptic, chemical and pharmaceutical industry, it includes sanitary unions, flanges and clamps. DIN 11864-1 is the specification of aseptic unions, it has three different sizes and lengths.
Specification of DIN 11850 / DIN 11852 / DIN 11864 Fittings :
|
Name |
Sanitary stainless steel elbow/ bend /curve |
|
Material |
SUS304, SUS316L |
|
Type |
45 degree, 90 degree, 180 degree |
|
Standard |
3A, ISO, DIN, SMS, IDF, BPE, BS |
|
Size |
1/2″-12″, DN15-DN300 |
|
Thickness |
1.5-4mm |
|
Connection |
weld, clamp, thread, union |
|
Surface treatment |
180/240/320/400 grit |
|
Finish |
Inside and outside mirror finish Ra≤0.8μmm, The lining of mechanical polishing and electrolytic polishing Ra≤0.8μmm |
|
Features |
Nice appearance, Surface smoothness, Acid and alkali resistant, Resistance to corrosion, Quality performance is good |
|
Suitable medium |
Water, oil, air or some corrosive liquid |
|
Application |
Food, beverage, chemical, pharmacy, biotechnology, cosmetic and other industry in the field of stainless steel piping system |
Chemical Compositions of DIN 11850 / DIN 11852 / DIN 11864 Fittings :
|
Elements |
316L (wt%) |
|
C / Max. |
0.035 |
|
Mn / Max |
2.00 |
|
P / Max |
0.045 |
|
S / Max |
0.005 – 0.017 |
|
Si / Max |
1.00 |
|
Ni |
10.00 – 14.00 |
|
Cr |
16.00 – 18.00 |
|
Mo |
N/A |
|
Fe |
Bal. |
|
Cu |
N/A |
|
N |
N/A |
Mechanical Properties DIN 11850 / DIN 11852 / DIN 11864 Fittings :
|
Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Hardness (HRB) |
|
316L
|
≥485 |
≥170 |
≥35 |
≤90 |
DIN 11850 FITTINGS
DIN 11850 Range 1 / 304L – 316L:
|
OUTSIDE DIAMETER (MM) |
WALL- THICKNESS (MM) |
NOMINAL OUTSIDE DIAMETER |
NOMINAL WALL THICKNESS |
DIMENSIONAL STANDARD |
|
12,00 |
1,00 |
DN 10 |
Range 1 |
DIN 11850 Reihe 1 |
|
18,00 |
1,00 |
DN 15 |
Range 1 |
DIN 11850 Reihe 1 |
|
22,00 |
1,00 |
DN 20 |
Range 1 |
DIN 11850 Reihe 1 |
|
28,00 |
1,00 |
DN 25 |
Range 1 |
DIN 11850 Reihe 1 |
|
34,00 |
1,00 |
DN 32 |
Range 1 |
DIN 11850 Reihe 1 |
|
40,00 |
1,00 |
DN 40 |
Range 1 |
DIN 11850 Reihe 1 |
|
52,00 |
1,00 |
DN 50 |
Range 1 |
DIN 11850 Reihe 1 |
DIN 11850 Range 2 / 304L – 316L
|
OUTSIDE DIAMETER (MM) |
WALL- THICKNESS (MM) |
NOMINAL OUTSIDE DIAMETER |
NOMINAL WALL THICKNESS |
DIMENSIONAL STANDARD |
|
13,00 |
1,50 |
DN 10 |
Range 2 |
DIN 11850 Reihe 2 |
|
19,00 |
1,50 |
DN 15 |
Range 2 |
DIN 11850 Reihe 2 |
|
23,00 |
1,50 |
DN 20 |
Range 2 |
DIN 11850 Reihe 2 |
|
29,00 |
1,50 |
DN 25 |
Range 2 |
DIN 11850 Reihe 2 |
|
35,00 |
1,50 |
DN 32 |
Range 2 |
DIN 11850 Reihe 2 |
|
41,00 |
1,50 |
DN 40 |
Range 2 |
DIN 11850 Reihe 2 |
|
53,00 |
1,50 |
DN 50 |
Range 2 |
DIN 11850 Reihe 2 |
|
70,00 |
2,00 |
DN 65 |
Range 2 |
DIN 11850 Reihe 2 |
|
85,00 |
2,00 |
DN 80 |
Range 2 |
DIN 11850 Reihe 2 |
|
104,00 |
2,00 |
DN 100 |
Range 2 |
DIN 11850 Reihe 2 |
|
129,00 |
2,00 |
DN 125 |
Range 2 |
DIN 11850 Reihe 2 |
|
154,00 |
2,00 |
DN 150 |
Range 2 |
DIN 11850 Reihe 2 |
|
204,00 |
2,00 |
DN 200 |
Range 2 |
DIN 11850 Reihe 2 |
DIN 11850 Practise based sizes
|
OUTSIDE DIAMETER (MM) |
WALL- THICKNESS (MM) |
NOMINAL OUTSIDE DIAMETER |
NOMINAL WALL THICKNESS |
DIMENSIONAL STANDARD |
|
12,00 |
1,50 |
DN 10 |
Range 1 |
DIN11850 Practise based size |
|
18,00 |
1,50 |
DN 15 |
Range 1 |
DIN11850 Practise based size |
|
22,00 |
1,50 |
DN 20 |
Range 1 |
DIN11850 Practise based size |
|
28,00 |
1,50 |
DN 25 |
Range 1 |
DIN11850 Practise based size |
|
34,00 |
1,50 |
DN 32 |
Range 1 |
DIN11850 Practise based size |
|
40,00 |
1,50 |
DN 40 |
Range 1 |
DIN11850 Practise based size |
|
52,00 |
1,50 |
DN 50 |
Range 1 |
DIN11850 Practise based size |
ISO 2037 FITTINGS
|
OUTSIDE DIAMETER (MM) |
WALL- THICKNESS (MM) |
NOMINAL OUTSIDE DIAMETER |
NOMINAL WALL THICKNESS |
DIMENSIONAL STANDARD |
|
12,00 |
1,00 |
|
|
ISO 2037 |
|
17,20 |
1,00 |
|
|
ISO 2037 |
|
21,30 |
1,00 |
|
|
ISO 2037 |
|
25,00 |
1,20 |
|
|
ISO 2037 |
|
25,00 |
1,60 |
|
|
ISO 2037 |
|
33,70 |
1,20 |
|
|
ISO 2037 |
|
33,70 |
1,60 |
|
|
ISO 2037 |
|
38,00 |
1,20 |
|
|
ISO 2037 |
|
38,00 |
1,60 |
|
|
ISO 2037 |
|
40,00 |
1,20 |
|
|
ISO 2037 |
|
40,00 |
1,60 |
|
|
ISO 2037 |
|
51,00 |
1,20 |
|
|
ISO 2037 |
|
51,00 |
1,60 |
|
|
ISO 2037 |
|
63,50 |
1,60 |
|
|
ISO 2037 |
|
70,00 |
1,60 |
|
|
ISO 2037 |
|
76,10 |
1,60 |
|
|
ISO 2037 |
|
88,90 |
2,00 |
|
|
ISO 2037 |
|
101,60 |
2,00 |
|
|
ISO 2037 |
|
114,30 |
2,00 |
|
|
ISO 2037 |
|
139,70 |
2,00 |
|
|
ISO 2037 |
|
168,30 |
2,60 |
|
|
ISO 2037 |
|
219,10 |
2,60 |
|
|
ISO 2037 |
BS 4825, PART 1
|
OUTSIDE DIAMETER (MM) |
WALL- THICKNESS (MM) |
NOMINAL OUTSIDE DIAMETER |
NOMINAL WALL THICKNESS |
DIMENSIONAL STANDARD |
|
12,70 |
1,20 |
1/2″ |
|
BS 4825-1 |
|
15,88 |
1,20 |
5/8″ |
|
BS 4825-1 |
|
19,05 |
1,20 |
3/4″ |
|
BS 4825-1 |
|
25,40 |
1,20 |
1″ |
|
BS 4825-1 |
|
25,40 |
1,60 |
1″ |
|
BS 4825-1 |
|
38,10 |
1,20 |
1 1/2″ |
|
BS 4825-1 |
|
38,10 |
1,60 |
1 1/2″ |
|
BS 4825-1 |
|
50,80 |
1,20 |
2″ |
|
BS 4825-1 |
|
50,80 |
1,60 |
2″ |
|
BS 4825-1 |
|
63,50 |
1,60 |
2 1/2″ |
|
BS 4825-1 |
|
76,20 |
1,60 |
3″ |
|
BS 4825-1 |
|
101,60 |
2,00 |
4″ |
|
BS 4825-1 |
|
114,30 |
2,00 |
4 1/2″ |
|
BS 4825-1 |
|
139,70 |
2,00 |
5 1/2″ |
|
BS 4825-1 |
|
168,30 |
2,60 |
6 5/8″ |
|
BS 4825-1 |
|
219,10 |
2,60 |
8 5/8″ |
|
BS 4825-1 |
