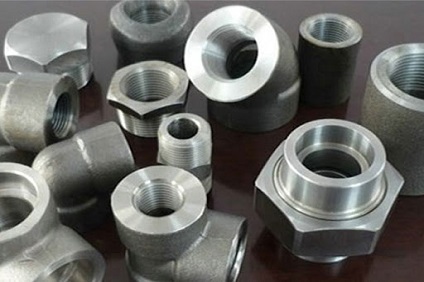

ASTM A182 Duplex Steel UNS S31803 Forged Fitting/ DIN 1.4462 Forged Fitting
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
ASTM A182 Duplex Stainless Steel Forged Fittings, Ferritic / Austenitic Duplex Steel UNS S31803 High Pressure Forged Socket Weld Fittings, DIN 1.4462 Threaded / Screwed Union Suppliers, UNS S31803 Duplex 45°/90° Socket weld Elbow, Duplex Steel 2205 ASME 16.11 Forged Full Coupling, SAF 2205 Socket weld Equal, Unequal, Reducing Tee, UNS S31803 Cross Wholesaler, Class 2000 LBS Duplex Steel UNS S31803 Half Coupling Exporters.
Duplex Steel Forged Fittings, Duplex Stainless Steel UNS S31803 Forged Pipe Fittings Suppliers in Mumbai, Duplex 2205 High Pressure Forged Fittings, Ferritic Duplex Steel UNS S31803 Threaded Fitting Manufacturers, Duplex Steel UNS S31803 Socket Weld Fittings Exporters in India.
Detailed Information
Prashaant Steel & Alloys is a leading producer of Duplex Steel UNS S31803 Forged Fittings and a high-caliber retailer. Thanks to their excellent resistivity properties, the Duplex Steel UNS S31803 Forged Fittings that we manufacture are extremely popular in the industry. We are considered to have the excellent quality of Duplex Steel UNS S31803 Forged Fittings at Prashaant Steel & Alloys, which is why we use the highest quality of the raw materials used in the production processes. The Duplex Steel UNS S31803 Forged Fittings provide outstanding resistance to corrosion and oxidation, which opens its doors to a wide range of applications.
Duplex UNS S31803 Forged Elbows are extremely corrosion resistant and work hardenable alloys. Duplex UNS S31803 Forged Tee has high general corrosion resistance. Duplex UNS S31803 Threaded Cross has good weldability in thick plates. Duplex UNS S31803 Reducing Tee Fittings is a duplex stainless steel with a 50 / 50 austenite, ferrite microstructure. Duplex UNS S31803 Forged Equal Tee is two-phase, ferritic, austenitic 22 % chromium, 3 % molybdenum, 5 to 6 % nickel alloyed stainless steel. Duplex UNS S31803 Forged Threaded Fittings are formed based on the crystalline structure of stainless steels.
Duplex Steel UNS S31803 Forged Fittings are used in various industries, such as the pulp and paper industries, in applications for pulp and paper processing equipment. In Evaporators, Heat Exchangers, and Boilers for use, such Forged Fittings are also used. Also used in the gas and oil refining industries are the Duplex Steel UNS S31803 Forged Fitting.
Before shipping them to our customers, we now run several tests on our products at Prashaant Steel & Alloys. These tests allow us to ensure that the products we have are of standard quality. Some of the tests that our Duplex Steel UNS S31803 Forged Fittings go through are Mechanical Testing Such as Tensile of Area, Flattening Test, Micro, and Macro Test, Pitting Resistance Test, Intergranular Corrosion (IGC) Test, etc.
Duplex Steel UNS S31803 Forged Fittings Specification:
Specifications ASTM A182 / ASME SA182
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Forged Fittings, ASME Forged Fittings, BS Forged Fittings, DIN Forged Fittings, EN Forged Fittings, etc.
Size 1/8″ NB TO 24″ NB
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Forged Fitting Face Type Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grade S31803 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
ASTM A182 Duplex Steel UNS S31803 Forged Fittings Chemical Composition:
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Fe |
|
S31803 |
0.030 max |
2.00 max |
1.00 max |
0.030 max |
0.020 max |
22.0 – 23.0 |
3.0 – 3.5 |
4.50 – 6.50 |
0.14 – 0.20 |
63.72 min |
ASME SA182 Duplex Steel UNS S31803 Threaded / Screwed Forged Fittings Mechanical Properties:
|
Grade |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
S31803 |
7.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 116000 , MPa – 800 |
Psi – 80000 , MPa – 550 |
15 % |
Duplex Steel UNS S31803 Forged Fittings Equivalent Indian Standard:
|
STANDARD |
UNS |
WERKSTOFF NR. |
|
Duplex 2205 |
S31803 |
1.4462 |
Types of ASME SA182 Duplex Steel UNS S31803 Forged Fittings material:
- Duplex Steel UNS S31803 Equal Tee
- Duplex Steel UNS S31803 45 LR Elbows
- Duplex Steel UNS S31803 90 LR Elbows
- Duplex Steel UNS S31803 90 SR Elbows
- Duplex Steel UNS S31803 End Caps
- Duplex Steel UNS S31803 Reducing Tees
- Duplex Steel UNS S31803 Concentric Reducers
- Duplex Steel UNS S31803 Eccentric Reducers
- Duplex Steel UNS S31803 Equal Cross
- Duplex Steel UNS S31803 Stub End
- Duplex Steel UNS S31803 Swedge Nipple
- Duplex Steel UNS S31803 Long Radius Bend
- Duplex Steel UNS S31803 180° LR Elbow
- Duplex Steel UNS S31803 Reducing Nipple
- Duplex Steel UNS S31803 Lateral Tee
- Duplex Steel UNS S31803 1D Elbow
