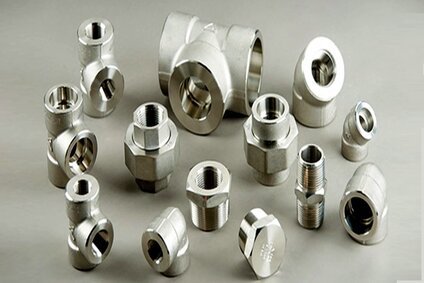

Stainless Steel 347H Forged Fittings

SS 347H Threaded Fittings, SS 347H Screwed Fittings Supplier in India,  SS UNS S30409 Threaded Bushing, Elbow, Stainless Steel 347H Threaded Cap, SS 347H Lateral Tee, SS 347H Threaded Pipe Elbow, Stainless Steel 347H Threaded Fitting.

SS 347H Threaded Plug, Stainless Steel 347H Threaded Forged Fittings, ASTM A182 Stainless Steel 347H Threaded Elbow, SS 347H Hex Plug, SS WERKSTOFF NR. 1.4961 Threaded Cross, 347H SS Full Couplings Exporter in India, 347H Stainless Steel Forged Threaded 90deg.

Detailed Information

Prashaant Steel & Alloys is involved in the manufacture of 347H Forged Fittings of high caliber Stainless Steel. Due to their superlative quality, the SS UNS S30409 Forged Fittings that we produce are widely popular. At Prashaant Steel & Alloys, we have a manufacturing facility that is well equipped with cutting-edge technologies that allow us to produce ASTM A182 SS 347H Forged Fittings that are appreciated by the industry. At Prashaant Steel & Alloys, we believe in customer satisfaction and thus try to meet our customers’ needs and demands in terms of both quality and quantity. Our enormous inventory helps to provide our customers with bulk orders in no time. We supply our products to different countries around the globe and we pack our UNS S30409 SS Forged Fittings in proper wooden boxes to avoid any damage to our product during shipment. With our packaging, we also include all the documents required. Some of the documents that we provide with our SS 347H Forged Fittings are Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc. Some of the relevant tests conducted on Stainless Steel 347H Forged Fittings are mechanical tests, pitting resistance tests, flaring tests, flattening tests, bend tests, positive material identification tests, intergranular corrosion tests, and micro and macro tests. They’re reliable and maintenance is not expensive. The linking of two or three pipes together is commonly used. For sealing the end of a pipe, the SS UNS S30409 Forged Fittings are used. They have a great finish and edges that are smooth. Their size is small and acceptable. Customers will buy these Stainless Steel 347H Forged Fittings at market-leading prices and in customizable shapes, sizes, and thicknesses.

In order to connect the straight or tube section pipes, forged fittings are widely used in different pipe systems. This is done so that different size and shapes can be adapted, which can then be used to measure the pressure flow. The material used in the production of these forged fittings is, therefore, more likely to be taken into account as the fitting has to be used under harsh environmental conditions. The SS 347H is a widely used grade on the market that gives the formed tube fittings great and unmatched properties. It is recognized that the grade delivers high mechanical properties and other good general characteristics. The 347H is a high carbon version of the 304 that, in high-temperature applications, offers great resistive properties. It is recognized that this austenitic chromium-nickel steel alloy delivers high strength and other good properties. This high carbon version also helps to provide excellent heat-resistant properties such as oxidation resistance, chloride ion solution pitting resistance, corrosion resistance to crevices and corrosion resistance to stress cracking. The good mechanical property of the grade is known to supply the formed tube fittings with great strength and elongation.

Applications of 347H Forged Stainless Steel Fittings are used in industries such as food processing equipment, especially in the production of wine and brewing beer. The Stainless Steel 347H Forged Fittings are used to produce chemical containers, including those for transport. In the manufacture of kitchen equipment and appliances, the Stainless Steel 347H Forged Fittings are also used. Threaded fasteners are also made using 347H Forged Fittings of Stainless Steel.

We at Prashaant Steel & Alloys provide documents such as fumigation certificates, raw materials certificates, material traceability records, etc., in order to ensure the quality standards of UNS S30409 SS Forged Fittings. With regard to the needs of the customers, all orders are delivered. To ensure only high-quality outputs, we at Prashaant Steel & Alloys perform extreme quality tests. Hardness test, flattening test, mechanical testing such as area tensile, etc. are some of the tests we perform on SS 347H forged fittings.

Stainless Steel 347H Forged Fitting Specifications:

SS 347/347H Socket Weld Forged Fittings are available in different grades and standards. Some of the standard features these are made available in include

Specifications : ASTM A182 / ASME SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/8” NB to 4” NB

Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socket Weld Fittings, Screwed-Threaded Fittings

Stainless Steel 347 & 347H Forged Fittings Chemical Properties:

Grade C Mn Si P S Cr Cb Ni Fe
SS 347H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 8xC – 1.10 9.0 -13.0 63.72 min

SS 347H Forged Pipe Fittings Mechanical Properties:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1454 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Equivalent Grades of A182 Stainless Steel 347 / 347H Forged Fittings:

STANDARD WERKSTOFF NR. UNS JIS GOST EN
SS 347H 1.4961 S34709 SUS 347H X6CrNiNb18-12

Types of SS 347H Socket Weld Fittings by Class, Size, and Wall Thickness:

Stainless Steel 1.4550 Forged Fittings ASTM A182 F347H Stainless Steel Socket Weld Forged Fittings
Stainless Steel S34700 Threaded Forged Fittings Dealer Stainless Steel 1.4961 Screwed Forged Fittings Stockist
A182 SS S34709 Street Elbow Exporter Stainless Steel S34700 High Pressure Forged Fittings
Stainless Steel 347H Forged Fittings Exporter in India F347H SS Socket Weld Fittings Manufacturer in India
ASME B16.11 Stainless Steel 347 Equal / Unequal Tee MSS SP-79 347 Stainless Steel Barrel Nipple Stockholder
Stainless Steel S34709 Hex Head Plug 347H Stainless Steel Screwed Bushing Supplier
Stainless Steel 1.4961 Swaged Nipple Stainless Steel S34700 Half Coupling
Stainless Steel SUS 347, 347H Full Coupling ASME SA182 F347H Stainless Steel End Cap
SS 1.4550 Forged Fittings Manufacturer in India S34709 Stainless Steel Forged Fittings Supplier in India
