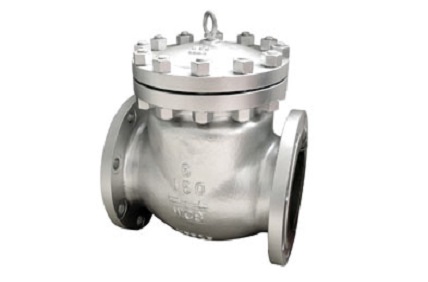

ASTM A351 SS 321 Valves

ASME SA351 SS 321H Needle Valves Manufacturers, Grade 321H Stainless Steel Instrument Ball Valve Suppliers, SS 321 Globe Valve, Forged Stainless Steel 321 Valve Suppliers in India, Stainless Steel 321H Instrumentation Ball Valves, Grade 321 Stainless Steel Valves Exporter in India.

UNS S32100 / S32109 SS Plug Valve, Stainless Steel 321 / 321H High-Pressure Instrumentation Ball Valves, AISI 321 Stainless Steel Safety Relief Valves Stockists in India, SS 321 Trunnion Ball Valve Exporters in India.

Detailed Information

Prashaant Steel & Alloys is a well-known maker and retailer of Valves for Stainless Steel 321 in the market. We produce ASME SA182 SS 321H Valves that follow global and national quality requirements by using the best quality raw materials. The ASTM A182 SS 321 Valves have a high corrosion and oxidation resistance thanks to the right mix of nickel, chromium, and titanium. Except at high temperatures, the ASME SA182 SS 321H Valves are produced to have improved performance at low temperatures. Valves of this kind can tolerate temperatures of up to 870 degrees Celsius. The ASTM A182 SS 321 Valves have excellent machinability and production characteristics. Prashaant Steel & Alloys is known for manufacturing high-quality goods that match or exceed our customers’ needs. Prashaant Steel & Alloys is known for its stainless steel 321 Valves. We manufacture and sell a wide range of ASTM A182 SS 321 Valves. ASME SA182 SS 321H Valves preserve strength and corrosion resistance even when exposed to high temperatures. Valves of this kind can tolerate temperatures of up to 870 degrees Celsius. ASTM A182 SS 321 Valves can be welded using any conventional process, including submerged arc. Welding fillers such as AWS ER347 bare wire and E347 coated electrodes can be used. Valves ASTM A182 SS 321 are easy to make and have reasonable machinability.

These instrumentation ball valves are formed with Stainless Steel 321 / 321H alloy that is a stabilized austenitic steel alloy combined with 18% of chromium and 8 % of nickel content. In addition to it includes titanium content that offers good resistance to general corrosion. These valves resist good oxidation up to 1500 degree F whereas offers good stress rupture and creep properties as compared to other alloys. Furthermore, it possesses good low-temperature toughness also. These valves also consider high carbon content that enhances excellent tensile strength and creeps resistance at a temperature range of 1000 degrees F.

The valves are stabilized against chromium carbide formation due to the titanium content. Furthermore, in hydrocarbon services, these resists polythionic acid stress corrosion cracking and also utilized in fluoride-free caustic or chlorides solutions at moderate temperatures. These ball valves are easily formed and possess good ductility. The hardness of these valves are not achieved by heat treatment, therefore, these are only cold worked. By means of standard shop fabrication practices, these are easily welded and fabricated.

The development of exhaust manifolds and expansion joints for aircraft are among the applications for ASME SA182 SS 321H Valves. Heating system tubing, heat exchangers, and thermal oxidizers are made with ASTM A182 SS 321 Valves because they have a high heat resistivity. Valves are used in the production of medicinal and chemical equipment, as well as in the pulp and paper industry. Stainless steel SS 321H Valves are used in a number of industries, including food preparation equipment, especially in chloride environments. ASTM A182 SS 321H Valves are also used in pharmaceuticals, maritime applications, and architectural applications. They are widely used in a number of medical applications.

321/321H Stainless Steel Valves Specification:

Specifications ASTM A276, A351, A494, A961 / ASME SA276, SA351, SA494, SA961
Temperature Rating PTFE 450F,(232C)/ Grafoil 700 F(371C)
End Connection Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female
Working Pressure Up to 6000 PSIG, valves are also available that can handle higher pressure
Pressure rating 150#,300#,600#,800#,1500#

SS 321/321H Valves Chemical Composition:

Grade C Mn Si P S Cr N Ni Ti
SS 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 5(C+N) – 0.70 max
SS 321H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 4(C+N) – 0.70 max

SS 321/321H Needle Valves Physical Properties:

Standard Tensile Strength (MPa) min Elongation (% in 50mm) min Yield Strength 0.2% Proof (MPa) min Rockwell B (HR B) max Brinell (HB) max
SS 321/321H Psi – 75000 , MPa – 515 35 % Psi – 30000 , MPa – 205 95 217

Stainless Steel 321/321H Valve Equivalent Grades:

STANDARD WERKSTOFF NR. UNS JIS EN
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9

Types of Stainless Steel 321/321H Valves:

  • 321 Stainless Steel Bleed and Purge Valves
  • SS 321 Toggle Valve, SS 321 Valve Lockouts
  • Stainless Steel DIN 1.4541 Non Return Valve
  • SS 321H Multipurpose Ball Valve Traders
  • SS 321H Spring loaded Check Valves
  • SS 321H Medium Pressure Valves stockholders
  • UNS S32109 Sanitary Valves
  • SS 321/321H Integral-Bonnet Needle Valves
  • SS 321 Manual / Mechanical Valves
  • Stainless Steel 321 Flanged Ball Valve
  • Grade 321H High-Pressure Stainless Steel Valves
