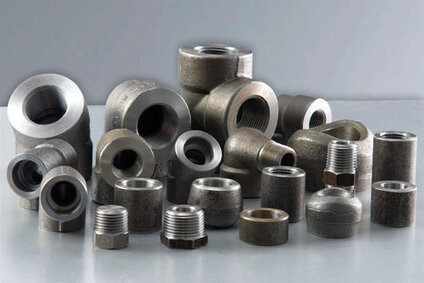

Hastelloy B3 Forged Fittings

Hastelloy B3 Threaded Cross, B3 Hastelloy Threaded Bushing, Alloy B3 Threaded Pipe Elbow, Hastelloy UNS N010675 Threaded Coupling Exporter, Hastelloy B3 Hex Plug, B3 Alloy Threaded Forged 90deg. Elbow, Alloy DIN NR. 2.4600 Screwed Fittings Exporter in India.

ASTM B564 Hastelloy B3 Threaded Elbow, Hastelloy B3 Threaded Tee, Hastelloy B3 Threaded Forged Fittings, Hastelloy B3 Threaded Union, Hastelloy B3 Threaded Cap Manufacturer and Suppliers In Mumbai, India, Hastelloy B3 Forged Fittings Price in India

Detailed Information

The Hastelloy B3 Forged Fittings are forged fittings with very high corrosion resistance designed for applications in different acidic environments. These vessels have greater structural strength compared to other similar alloy vessels, and are both easy to assemble and weld. The Forged Fittings of Hastelloy B3 are ductile and resist the cracking of stress corrosion in liquids containing high chloride levels. they can withstand various fluoride media and condensed sulfuric acid bearings as well. In addition, the Hastelloy B3 Forged Fittings give superior thermal stability with excellent pitting and corrosion resistance. They are known to retain their ductility even after exposure to intermediate temperatures. The Hastelloy B3 Forged Fittings are reliable in multiple reduction environments for applications containing pure hydrochloric, hydro-bromic, and sulfuric acids. They also demonstrate excellent tolerance to phosphoric, acetic, and formic acids, such as non-oxidizing media. In non-oxidant piping regimes, the Hastelloy B3 Forged Fittings are widely used.
The mixture of copper, chromium, molybdenum, and tungsten includes the ASME SB366 UNS N10276 Hastelloy B3 Forged Fittings. Improved pitting and stress corrosion protection is provided by the ASTM B366 Hastelloy B3 Forged Fittings. In situations where temperatures are known to be decreasing and oxidizing, such fittings often give maximum tolerance. In the Hastelloy B3 Forged Fittings, the chromium content leads to greater oxidation resistance. The nickel allows the fittings to have greater tolerance against mixtures containing damp chlorine and nitric acid. The ASTM B366 Hastelloy B3 Forged Fittings may require intermediate annealing instead of sufficient ductility due to hardening work during manufacture. The fittings should be manufactured at temperatures between 1750-2050 ° F and rapid cooling can then be required.
The applications for ASME SB366 Hastelloy B3 Forged Fittings are wide-ranging and can be used in many industries. To suit pharmaceutical and food processing machines, the ASME SB366 Hastelloy B3 Forged Fittings are used. Two of the ASME SB366 Hastelloy B3 Forged Fittings applications are both pulp and paper making and Sour gas fields. ASME SB366 Hastelloy B3 Forged Fittings are also used to build rack liners, ducts, and dampers for emissions control. Some of the sectors that use Hastelloy B3 Forged Fittings in their applications are the chemical engineering industries, specialty chemical firms, and gas processing industries. They are also used in sectors that process insecticides and herbicides. Many of the other applications are in the high octane petrol, ethylene glycol and ethyl benzene production industries. The applications of Hastelloy B3 Forged Fittings and Fittings can be used in the manufacture of cellophane, the manufacture of fertilizers, incineration scrubber systems, and the manufacture of industrial plants in devices such as flue gas scrubbers and chlorination systems.
Before selling to customers, we conduct several quality tests on our products. Such tests are conducted to determine our final results for every possible query. Some of the tests that we conduct are Mechanical Testing Such as Tensile of Area, Positive Material Identification – PMI Testing, Chemical Analysis – Spectra Analysis, Micro and Macro Test, Inter-granular Corrosion (IGC) Test. We at Prashaant Steel & Alloys also supply our goods with other documents and certificates. The certificates guarantee the price we have of Hastelloy ASME SB366 UNS N10276 Fittings. Some of the documents that we provide include Fumigation Certificates, Raw Material Test Reports, Material Traceability Records, Certificate of Origin legalized/attested by Chamber of Commerce or Embassy, etc. are some of the certificates we provide.

Product Specifications of Hastelloy B3 Forged Fittings

Specifications : ASTM B564 & ASME B564
Size : 1/8” NB to 4” NB (Socket weld & Screwed-Threaded)
Standards : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket weld Fittings, Screwed-Threaded Fittings
Hastelloy B3 Forged Fittings Items : 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.

ASME SB564 Alloy B3 Forged Fittings Chemical Composition



Grade

Ni

Mo

Cr

Fe

W

Mn

C

Al

Ti

Si

Hastelloy B3

65.0 min

28.5

1.5

1.5

3.0 max

3.0 max

0.01 max

0.50 max

0.2 max

10 max



Hastelloy B3 Forged Steel Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
9.2 g/cm3 1370 °C (2550 °F) Psi – 1,15,000 , MPa –760 Psi – 52,000 , MPa – 350 40%



Equivalent Grades for B3 Hastelloy Forged Threaded Fittings

STANDARD WERKSTOFF NR. UNS
Hastelloy B3 2.4600 N010675



Types of B3 Hastelloy Forged Threaded Fittings

  • Hastelloy B3 Equal Cross
  • Alloy B3 Buttweld Pipe Fitting
  • Hastelloy N010675 Pipe Tee
  • B3 Alloy Pipe Bend
  • Hastelloy B3 U Bend
  • Alloy B3 Butt weld Fittings B3
  • Hastelloy Butt weld Pipe Fittings
  • Alloy B3 Reducing Tee
  • Hastelloy Alloy B3 90 Deg bend
  • WNR. 2.4600 Hastelloy B3 Equal Tee
  • Hastelloy B3 Lateral Tee
  • Alloy B3 Unequal Tee
  • Hastelloy N010675 Stub End
  • Alloy B3 45Deg Elbow
  • Hastelloy Alloy B3 Pipe Cap
  • Alloy B3 Stub End
  • Hastelloy Buttweld Fitting
  • B3 Hastelloy Pipe End Cap
  • Alloy B3 Dish Cap
  • B3 Alloy Seamless Fitting
  • UNS N010675 Alloy B3 Pipe Bends
  • Hastelloy B3 Welded Fitting
  • Alloy B3 Short Radius Elbow
  • Hastelloy B3 Concentric Reducer B3
  • N010675 Hastelloy Short Stub end
  • Hastelloy B3 Cross
  • B3 Alloy Long Radius Elbow
  • Hastelloy B3 Pipe Fitting
  • Alloy WNR. 2.4600 Eccentric Reducer
  • N010675 Alloy B3 90Deg Elbow
