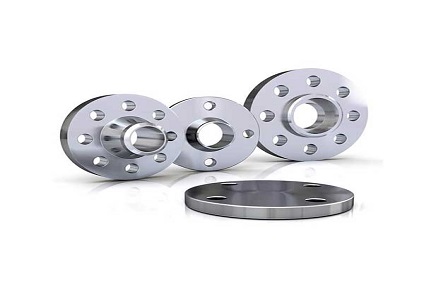

Inconel 600 Flanges | ASTM B564 UNS N06600 Flange
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Alloy 600 Blind Flange, UNS N06600 Weld Neck Flange manufacturer in India, UNS N06600 Blind Flange Inconel Alloy 600 SORF Flanges, Inconel 600 Slip On Flange, Inconel 600 Socket Weld Flanges, Inconel 600 WNRF Flange, Global Exporter of Inconel 600 Flanges, Inconel 600 Flanges Exporter in India.
Detailed Information
Prashaant Steel & Alloys is a well-known Inconel 600 Flanges maker and retailer. For the manufacture of Inconel UNS N06600 Flanges, we at Prashaant Steel & Alloys use the finest quality raw materials. We manufacture Inconel 600 Flanges with high corrosion and oxidation resistance. Prashaant Steel & Alloys has all of the latest equipment and cutting-edge technologies required to produce and supply Inconel UNS N06600 Flanges for use in a range of industries. Inconel 600 Flanges are available in a range of sizes and thicknesses. We also welcome custom orders from customers and manufacture these Inconel UNS N06600 Flanges to their requirements.
Our Inconel 600 Socket Weld Flanges are as well used in Gasoline stabilizer production, Phenol condensers, Soap manufacture, Titanium dioxide, Vegetable and fatty acid vessels. These Inconel 600 Ring Type Joint Flanges are highly versatile and can be used in everything from cryogenics to applications that present elevated temperatures up to 2000 Degree F (1093 Degree C). Our Inconel 600 Spectacle Blind Flanges is not suggested for use at red heat when sulfur is present due to elevated nickel quantities. Inconel 600 Ring Type Joint Flanges are certified to a variety of national and international specifications. Inconel 600 Orifice Flanges are readily fabricated (hot or cold) and can be joined using standard welding, brazing, and soldering processes.
Inconel Flanges designed for high-temperature applications, ASME SB564 Inconel 600 Flanges are available. They have outstanding corrosion resistance in a number of corrosive media. These Flanges perform admirably under heavy mechanical tension. They have a high oxidation tolerance and can operate at temperatures up to 1000 degrees Fahrenheit. They’re great for systems that need high temperatures. The Inconel 600 Flanges, ASTM B564, are highly ductile and can be formed using any conventional tool. They are incredibly heavy, necessitating the use of powerful equipment to conduct forming operations. They also have outstanding welding properties and are an excellent alternative.
We at Prashaant Steel & Alloys aim in providing only high quality of the Inconel 600 Flanges. Hence all our products undergo certain quality tests. Some of the tests that we conduct are Positive Material Identification – PMI Testing, Chemical Analysis – Spectra Analysis, Pitting Resistance Test, Intergranular Corrosion (IGC) Test, Mechanical Testing Such as Tensile of Area, Hardness Test, Micro, and Macro Test, etc.
We also provide certain documents with our Inconel UNS N06600 Flanges. Some of the documents that we provide are Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, Certificate of Origin legalized/attested by Chamber of Commerce or Embassy, Material Traceability Records, and Test Certificates certifying NACE MR0103, NACE MR0175.
Inconel 600 Flanges Specification
Specification: ASTM B564/ ASME SB564, ASTM B637/ ASME SB637, ASTM B462/ ASME SB462, ASTM B865/ ASME SB865
Grade: Inconel 600 (UNS N06600, Alloy 600, 2.4816)
Connect Type/ Flange Face Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove
Size Range: 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Facings: Raised Face, RTJ etc.
To ANSI, DIN, EN, JIS, etc. or according to drawing
Inconel Alloy 600 Pipe Flanges Chemical Composition:
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 600 Flanges Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Equivalent Grades for 600 Inconel Industrial Pipe Flanges:
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 600 (UNS N06600) Flanges Physical Properties
Typical Physical Properties of Inconel 600 Flanges | |||||||||
---|---|---|---|---|---|---|---|---|---|
Density | Melting Range | Specific Heat | Curie Temperature | Electrical Resistivity | |||||
lb/in3 | Mg/m3 | °F | °C | Btu/lb-°F | J/kg-°C | °F | °C | mil/ft | μΩ-m |
0.306 | 8.47 | 2470-2575 | 1354-1413 | 0.106 | 444.00 | -192 | -124 | 620 | 1.03 |
Inconel 600® Flanges for All Applications
Prashaant Steel & Alloys offers Inconel 600® flanges in a range of gauges to meet any application or performance requirements. Our Inconel 600® flanges is certified to a variety of national and international specifications, including:
- ASME SB-564
- BS 3072-3076 (NA14)
- DIN 17742
- DIN 17750
- DIN 17754
- and many others (see table below)
Inconel 600 Flanges Pressure Rating Chart
Inconel 600 Flanges | Pressure And Temperature Ratings | ||||||
Temperature °F | Class 150 As Per ASME B16.5 | Class 300 As Per ASME B16.5 | Class 400 As Per ASME B16.5 | Class 600 As Per ASME B16.5 | Class 900 As Per ASME B16.5 | Class 1500 As Per ASME B16.5 | Class 2500 As Per ASME B16.5 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
ASTM B166 Inconel 600 Spectacle Blind Flanges Schedule Chart
NPS (Nominal Pipe Size) | SORF (Slip On) | NPT (Threaded) | SWRF (Socket Weld) | Loose (Lap Joint) | BLRF (Blind) | WRNR (Weld Neck) |
---|---|---|---|---|---|---|
½ | 1 | 1 | 2 | 1 | 2 | 2 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 |
1 | 2 | 2 | 2 | 2 | 2 | 3 |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
1½ | 3 | 3 | 3 | 3 | 4 | 4 |
2 | 5 | 5 | 5 | 5 | 5 | 6 |
2½ | 8 | 8 | 8 | 8 | 7 | 10 |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
3½ | 11 | 12 | 11 | 11 | 13 | 12 |
4 | 13 | 13 | 13 | 13 | 17 | 16.5 |
5 | 15 | 15 | 15 | 15 | 20 | 21 |
6 | 19 | 19 | 19 | 19 | 27 | 26 |
8 | 30 | 30 | 30 | 30 | 47 | 42 |
10 | 43 | 43 | 43 | 43 | 70 | 54 |
12 | 64 | 64 | 64 | 64 | 123 | 88 |
14 | 90 | 90 | 90 | 105 | 140 | 114 |
16 | 106 | 98 | 98 | 140 | 180 | 140 |
18 | 130 | 130 | 130 | 160 | 220 | 165 |
20 | 165 | 165 | 165 | 195 | 285 | 197 |
22 | 185 | 185 | 185 | 245 | 355 | 225 |
24 | 220 | 220 | 220 | 275 | 430 | 268 |
Inconel 600® Slip On Flange Thickness
Wall Thickness Of Inconel 600 Flanges | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Normal Pipe Size (NPS) | O.D. (Outside Daimeter) | Sch 10 | Sch 20 | Sch 30 | STD Wall Outside Daimeter | Sch 40 | Sch 60 | EXT Hvy Outside Daimeter | Schedule 80 | Schedule 100 | Schedule 120 | Schedule 140 | Schedule 160 | XX Hvy |
½ | 0.84 | 0.083 | … | … | 0.109 | 0.109 | … | 0.147 | 0.147 | … | … | … | 0.188 | 0.294 |
¾ | 1.05 | 0.083 | … | … | 0.113 | 0.113 | … | 0.154 | 0.154 | … | … | … | 0.219 | 0.308 |
1 | 1.315 | 0.109 | … | … | 0.133 | 0.133 | … | 0.179 | 0.179 | … | … | … | 0.25 | 0.358 |
1 ¼ | 1.66 | 0.109 | … | … | 0.14 | 0.14 | … | 0.191 | 0.191 | … | … | … | 0.25 | 0.382 |
1 ½ | 1.9 | 0.109 | … | … | 0.145 | 0.145 | … | 0.2 | 0.2 | … | … | … | 0.281 | 0.4 |
2 | 2.375 | 0.109 | … | … | 0.154 | 0.154 | … | 0.218 | 0.218 | … | … | … | 0.344 | 0.436 |
2 ½ | 2.875 | 0.12 | … | … | 0.203 | 0.203 | … | 0.276 | 0.276 | … | … | … | 0.375 | 0.552 |
3 | 3.5 | 0.12 | … | … | 0.216 | 0.216 | … | 0.3 | 0.3 | … | … | … | 0.438 | 0.6 |
3 ½ | 4 | 0.12 | … | … | 0.226 | 0.226 | … | 0.318 | 0.318 | … | … | … | … | 0.636 |
4 | 4.5 | 0.12 | … | … | 0.237 | 0.237 | … | 0.337 | 0.337 | … | 0.438 | … | 0.531 | 0.674 |
5 | 5.563 | 0.134 | … | … | 0.258 | 0.258 | … | 0.375 | 0.375 | … | 0.5 | … | 0.625 | 0.75 |
6 | 6.625 | 0.134 | … | … | 0.28 | 0.28 | … | 0.432 | 0.432 | … | 0.562 | … | 0.719 | 0.864 |
8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | … |
16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | … |
18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | … |
20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | … |
22 | 22 | 0.25 | … | … | 0.375 | … | … | 0.5 | … | … | …. | …. | …. | …. |
24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | …. |
26 | 26 | …. | …. | …. | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
36 | 36 | 0.312 | 0.5 | 0.625 | 0.375 | 0.75 | …. | 0.5 | …. | …. | …. | …. | …. | …. |
40 | 40 | …. | …. | …. | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
42 | 42 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
48 | 48 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
Werkstoff Nr. 2.4816 Reducing Flanges Tolerance Chart
Inconel 600 Flanges | Tolerance Table | |
---|---|---|
A | O.D. (Outside Diameter) |
|
D | Inside Diameter (I.D.) |
|
B | Diameter of contact face |
|
J | Diameter of hub at base |
|
H | Diameter of hub at point of welding |
|
P | Drilling |
|
Eccentricity of bolt circle with respect to facing |
|
|
C | Thickness |
|
K | Length of hub |
|
Inconel N06600 Flat Face Flange Gasket Size Chart
Normal Pipe Size | Gasket I.D. (Inside Daimeter) | Gasket O.D. (Outside Daimeter) | ||||
---|---|---|---|---|---|---|
150 LB | 300 LB | 400 LB | 600 LB | 900 LB | ||
1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
N06600 Alloy 600 WNRF Flange Bolt Size Chart In MM
150# Flange As Per ANSI B16.5 | 300# Flange As Per ANSI B16.5 | 600# Flange As Per ANSI B16.5 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Normal Pipe Size | # Studs And Bolts | Diameter of Studs And Bolts | Length Of Studs | # Studs And Bolts | Diameter of Studs And Bolts | Stud Length | # Studs And Bolts | Diameter of Studs And Bolts | Length Of Studs | |||
1/16 RF | RTJ | 1/16 RF | RTJ | 1/4 RF | RTJ | |||||||
1/2 | 4 | 0.50 | 2-1/4 | – | 4 | 0.50 | 2-1/2 | 3 | 4 | 0.50 | 3 | 3 |
3/4 | 4 | 0.50 | 2-1/2 | – | 4 | 0.63 | 3 | 3-1/2 | 4 | 0.63 | 3-1/2 | 3-1/2 |
1 | 4 | 0.50 | 2-1/2 | 3 | 4 | 0.63 | 3 | 3-1/2 | 4 | 0.63 | 3-1/2 | 3-1/2 |
1-1/4 | 4 | 0.50 | 2-3/4 | 3-1/4 | 4 | 0.63 | 3-1/4 | 3-3/4 | 4 | 0.63 | 3-3/4 | 3-3/4 |
1-1/2 | 4 | 0.50 | 2-3/4 | 3-1/4 | 4 | 0.75 | 3-1/2 | 4 | 4 | 0.75 | 4-1/4 | 4-1/4 |
2 | 4 | 0.63 | 3-1/4 | 3-3/4 | 8 | 0.63 | 3-1/2 | 4 | 8 | 0.63 | 4-1/4 | 4-1/4 |
2-1/2 | 4 | 0.63 | 3-1/2 | 4 | 8 | 0.75 | 4 | 4-1/2 | 8 | 0.75 | 4-3/4 | 4-3/4 |
3 | 4 | 0.63 | 3-1/2 | 4 | 8 | 0.75 | 4-1/4 | 4-3/4 | 8 | 0.75 | 5 | 5 |
3-1/2 | 8 | 0.63 | 3-1/2 | 4 | 8 | 0.75 | 4-1/4 | 5 | 8 | 0.88 | 5-1/2 | 5-1/2 |
4 | 8 | 0.63 | 3-1/2 | 4 | 8 | 0.75 | 4-1/2 | 5 | 8 | 0.88 | 5-3/4 | 5-3/4 |
5 | 8 | 0.75 | 3-3/4 | 4-1/4 | 8 | 0.75 | 4-3/4 | 5-1/4 | 8 | 1.00 | 6-1/2 | 6-1/2 |
6 | 8 | 0.75 | 4 | 4-1/2 | 12 | 0.75 | 4-3/4 | 5-1/2 | 12 | 1.00 | 6-3/4 | 6-3/4 |
8 | 8 | 0.75 | 4-1/4 | 4-3/4 | 12 | 0.88 | 5-1/2 | 6 | 12 | 1.13 | 7-1/2 | 7-3/4 |
10 | 12 | 0.88 | 4-1/2 | 5 | 16 | 1.00 | 6-1/4 | 6-3/4 | 16 | 1.25 | 8-1/2 | 8-1/2 |
12 | 12 | 0.88 | 4-3/4 | 5-1/4 | 16 | 1.13 | 6-3/4 | 7-1/4 | 20 | 1.25 | 8-3/4 | 8-3/4 |
14 | 12 | 1.00 | 5-1/4 | 5-3/4 | 20 | 1.13 | 7 | 7-1/2 | 20 | 1.38 | 9-1/4 | 9-1/4 |
16 | 16 | 1.00 | 5-1/4 | 5-3/4 | 20 | 1.25 | 7-1/2 | 8 | 20 | 1.50 | 10 | 10 |
18 | 16 | 1.13 | 5-3/4 | 6-1/4 | 24 | 1.25 | 7-3/4 | 8-1/4 | 20 | 1.63 | 10-3/4 | 10-3/4 |
20 | 20 | 1.13 | 6-1/4 | 6-3/4 | 24 | 1.25 | 8 | 8-3/4 | 24 | 1.63 | 11-1/4 | 11-1/2 |
24 | 20 | 1.25 | 6-3/4 | 7-1/4 | 24 | 1.50 | 9 | 10 | 24 | 1.88 | 13 | 13-1/4 |
Inconel 600 Pipe Flanges Size Chart
Normal Sizes In inch | Dimension | Inconel Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch. | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Class 125 Class 150 |
Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 | ||||||||||
inch. | mm | inch. | millimeter | inch. | mm | inch. | mm | inch. | mm | inch. | mm | inch | mm | |||
1/2 | A | 3 1/2 | 88.9 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 4 3/4 | 121 | 4 3/4 | 121 | 5 1/4 | 133.4 | |
b | 7/16 | 11.1 | 9/16 | 14.3 | 9/16 | 14.3 | 9/16 | 14.3 | 7/8 | 22.2 | 7/8 | 22.2 | 1 3/16 | 30.2 | ||
D2 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | ||
D1 | 2 3/8 | 60.3 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 3 1/4 | 82.6 | 3 1/4 | 82.6 | 3 1/2 | 88.9 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | – | 4 | 44 | ||
d | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | ||
3/4 | A | 3 7/8 | 98.4 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 5 1/8 | 130 | 5 1/8 | 130 | 5 1/2 | 139.7 | |
b | 1/2 | 12.7 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 1 | 25.4 | 1 | 25.4 | 1 1/4 | 31.8 | ||
D2 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | ||
D1 | 2 3/4 | 69.8 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 3/4 | 95.2 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | – | 4 | 44 | ||
d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | ||
1 | A | 4 1/4 | 108 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 6 1/4 | 159 | |
b | 9/16 | 14.3 | 11/16 | 17.5 | 11/16 | 17.5 | 11/16 | 17.5 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 3/8 | 34.9 | ||
D2 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | ||
D1 | 3 1/8 | 79.4 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 4 | 102 | 4 | 102 | 4 1/4 | 108 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 | 25.4 | ||
1 1/4 | A | 4 5/8 | 117.5 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 6 1/4 | 159 | 6 1/4 | 159 | 7 1/4 | 184.2 | |
b | 5/8 | 15.9 | 3/4 | 19 | 13/16 | 20.6 | 13/16 | 20.6 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/2 | 38.1 | ||
D2 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | ||
D1 | 3 1/2 | 88.9 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 4 3/8 | 111 | 4 3/8 | 111 | 5 1/8 | 130 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 1/8 | 28.6 | ||
1 1/2 | A | 5 | 127 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 7 | 177.8 | 7 | 177.8 | 8 | 203 | |
b | 11/16 | 17.5 | 13/16 | 20.6 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/4 | 31.8 | 1 1/4 | 31.8 | 1 3/4 | 44.5 | ||
D2 | 2 7/8 | 73 98 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | ||
D1 | 3 7/8 | 4 | 4 1/2 | 114 | 4 1/2 | 114 | 4 1/2 | 114 | 4 7/8 | 124 | 4 7/8 | 124 | 5 3/4 | 146 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
d | 5/8 | . 15.9 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/4 | 31.8 | ||
2 | A | 6 | 152.4 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 8 1/2 | 215.9 | 8 1/2 | 215.9 | 9 1/4 | 234.9 | |
b | 3/4 | 19 | 7/8 | 22.2 | 1 | 25.4 | 1 | 25.4 | 1 1/2 | 38.1 | 1 1/2 | 38.1 | 2 | 50.8 | ||
D2 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | ||
D1 | 4 3/4 | 121 | 5 | 127 | 5 | 127 | 5 | 127 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 3/4 | 171 | ||
n | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
d | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 1/8 | 28.6 | ||
2 1/2 | A | 7 | 177.8 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 9 5/8 | 244 | 9 5/8 | 244 | 10 1/2 | 266.7 | |
b | 7/8 | 22.2 | 1 | 25.4 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 5/8 | 41.3 | 1 5/8 | 41.3 | 2 1/4 | 57.2 | ||
D2 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 105 | 4 1/8 | 105 | 4 1/8 | 105 | ||
D1 | 5 1/2 | 139.7 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 3/4 | 197 | ||
n | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
d | 3/4 | 19 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/4 | 31.8 |
Inconel 600 Flange Types:
- Inconel 600 Socket Weld Flanges
- Inconel DIN 2.4858 Reducing Flanges Distributors at Germany
- Alloy 600 Plate Flanges Suppliers
- Inconel UNS N06600 Forged Flanges
- ASTM B564 Inconel 600 Slip-On Flanges Suppliers at Morocco
- Inconel Alloy 600 Weld Neck Flanges
- Alloy 600 SORF Flanges
- Inconel 600 BLRF Flange Exporter
- Inconel EN 1092-1 Flanges
- Inconel 600 Forged Flanges
- Inconel Alloy Blind Flange Exporter
- ANSI B 16.47 Inconel Flange
- Inconel 600 Flanges Exporter
- ASME B16.5 Inconel Flanges
- ASME SB564M Alloy 600 SWRF Flange Stockist
- Inconel 600 Nipoflange
- ASME SB564 Alloy 600 BLRF Flange
- Inconel 600 Flanges
- Inconel 600 Tongue & Groove Flanges
- Inconel 600 Square Flanges Supplier at Jordan
- Inconel 600 Raised Face Flanges
- Alloy 600 Blind Flanges Manufacturer at Tunisia
- Inconel 600 Lap Joint Flanges Dealers
- Inconel 600 Orifice Flanges
- Inconel 600 Ring Type Joint Flanges
- Alloy 600 Threaded Flanges
- Inconel 600 Long Weld Neck Flanges
- Inconel 600 Short Weld Neck Flange
- Inconel Flat Face 600 Flange
- Inconel 600 WNRF FLANGE
Our Products
- Titanium Grades 2 Seamless Tubes, UNS R50400 Welded Tubes, Titanium Alloy DIN 3.7035 ERW Tube, Alloy Gr 2 Welded Tubing in Europe
- Titanium Grades 5 Seamless Tubes, Titanium UNS N56400 Welded Tubes,Titanium Alloy DIN 3.7165 ERW Tube, ASTM B338 Titanium Grade 5 Tube
- Titanium Grades 7 Seamless Tubes, Titanium Alloy DIN 3.7235 ERW Tube, Titanium UNS R52400 Tubes, Alloy Gr 7 Welded Tubing in Europe
- Titanium Grades 12 Seamless Tubes, Titanium Alloy DIN 3.7105 ERW Tube, Alloy Gr 12 Welded Tubing, Titanium Gr 12 ERW Tubes
- Titanium Grades 2 Pipe Fittings, ASTM B348 Titanium Nut, Titanium Alloy Grade 2 Bolt, DIN 3.7035 Titanium Gr 2 Bolt Supplier
- Titanium Grades 5 Pipe Fittings, Titanium UNS N56400 Buttweld Fittings, Gr 5 Titanium 45° Elbow, Titanium Grade 5 Reducer Stockist
- Titanium Grades 2 Forged Fittings, ASME SB381 UNS R50400 Threaded Fittings, Titanium UNS R50400 Forged Fittings, Titanium Gr2 Threaded Elbow Stockist
- Titanium Grades 5 Forged Fittings, Gr 5 Titanium 45° Elbow, Titanium UNS R50400 Cross, Titanium Alloy UNS R50400 Welded Forged Fittings Supplier
- Titanium Grades 2 Fasteners, Gr2 Titanium Forged Threaded Tee, Titanium Threaded Fittings, Titanium DIN 3.7035 Forged Threaded Plug Stockists
- Titanium Grades 5 Fasteners, Titanium Gr 5 Alloy End Cap, ASME SB363 Alloy Titanium Gr 5 Long Stub End, Titanium Gr.2 Flat washer Stockholder
- Titanium Grades 2 Flanges, UNS R50400 Flanges Exporters, DIN 3.7035 Titanium Flanges, Titanium Grade 2 Socket Weld Flanges Stockist
- Titanium Grades 5 Flanges, Titanium UNS N56400 Flanges, Titanium Gr 5 Alloy End Cap, ASTM B363 Titanium Gr 5 90 degree Elbow Exporters and Suppliers
