Alloy Steel Products

Alloy Steel F5 Flanges Supplier & Manufacturer

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

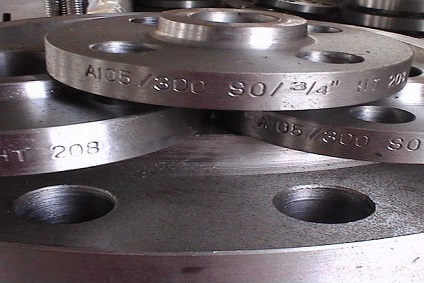

Alloy Steel F5 Flanges

Alloy Steel F5 Slip-on Flanges, Alloy Steel F5 Pipe Flange, Stockist Of Alloy Steel F5 Flanges, Chrome Moly F5 Flanges, Alloy A182 F5 Weld Neck Flanges, F5 Alloy Steel Blind Flanges Dealer, Alloy Steel F5 SWRF Flange, ANSI / ASME B16.5, B16.47, B16.36 Alloy Steel F5 Flanges Manufacturer in Mumbai, India.

Detailed Information

Prashaant Steel & Alloys is a leading producer of Alloy Steel F5 Flanges and a high-caliber retailer. Thanks to their excellent resistivity properties, the Alloy Steel F5 Flanges that we manufacture are extremely popular in the industry. We are considered to have the excellent quality of Alloy Steel F5 Flanges at Prashaant Steel & Alloys, which is why we use the highest quality of the raw materials used in the production processes. The Alloy Steel F5 Flanges provide outstanding resistance to corrosion and oxidation, which opens its doors to a wide range of applications.

As per the client’s demand, we can design. These Flanges, manufactured by us, offer outstanding quality, sturdy construction, high strength, fine finish, and excellent corrosion resistance. The Flanges can withstand extreme temperatures. It also gives superior resistance to conditions in the atmosphere, water as well as certain chemicals. In a production unit with highly automated and new machinery, equipment, and materials, Prashaant Steel & Alloys produces Alloy Steel ASTM A182 F5 Flanges. We have a splendid workforce with all the skills required to produce any product with mastery. An exceptional team of engineers and specialists in the sector directs them. Their effectiveness and dedication to making accurate Alloy Steel ASTM A182 F5 Flanges as required by the customer is commendable.

Alloy Steel F5 Flanges can be steam–cleaned and sterilized and do not need paint or other surface finishes. These Alloy Steel F5 Flanges are often applied in areas of higher temperatures than stainless steel can endure, and its low carbon allows it to be resistant against carbon precipitation. However, like many other steels, our Alloy Steel F5 Blind Flanges is susceptible to warm chlorine environments and can potentially pit and crack. These Alloy Steel F5 Flanges provide outstanding corrosion resistance in, for instance, caustic and acidic applications which include sulphuric and higher chloride environments. This is exactly because of the outstanding resistance to sulfide cracking of our Alloy Steel F5 Flanges in conditions characterized by increased levels of hydrogen sulfide (H2S), carbon dioxide (CO2) and as well chlorides (Cl). The major iron–bearing raw materials for making accessories of these Alloy Steel F5 Flanges are blast – furnace iron, steel scrap, and direct–reduced iron (DRI).

Alloy Steel F5 Flanges are used in various industries, such as the pulp and paper industries, in applications for pulp and paper processing equipment. In Evaporators, Heat Exchangers, and Boilers for use, such Flanges are also used. Also used in the gas and oil refining industries are the Alloy F5 Flanges.

Before shipping them to our customers, we now run several tests on our products at Prashaant Steel & Alloys. These tests allow us to ensure that the products we have are of standard quality. Some of the tests that our Alloy Steel F5 Flanges go through are Mechanical Testing Such as Tensile of Area, Flattening Test, Micro, and Macro Test, Pitting Resistance Test, Intergranular Corrosion (IGC) Test, etc.

Alloy Steel F5 Pipe Flanges Specifications:

Specifications : ASTM A182 / ASME SA182
Size : 1/2″ (15 NB) to 48″ (1200NB)
Standards : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Chemical Composition of Alloy Steel F5 Flanges:

Grade C Mn Si P S Cr Mo
Alloy Steel F5 0.15 max 0.3-0.6 0.5 0.03 0.03 4-6 0.44-0.65
Mechanical Properties of Alloy Steel F5 Flanges:
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min
Alloy Steel F5 275 485 20
Equivalent Grades Alloy Steel F5 Flanges:
STANDARD UNS WERKSTOFF NR. Trade Name
Alloy Steel F5 K41545 1.7362 5Cr-1/2Mo
Types Of Grade F5 Alloy Steel Flanges
Inconel Products

ASTM A182 Alloy Steel F5 Slip On Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Socket Weld Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Blind Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Weld Neck Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Threaded / Screwed Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Lap Joint Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Long Weld Neck Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Spectacle Blind Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Plate Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Ring Type Joint Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Tongue & Groove Flanges

Inconel Products

ASTM A182 Alloy Steel F5 Reducing Flanges

Alloy Steel F5 Flange Standards / Types And Pressure Class :

ASME/ANSI B 16.5

Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange

PRESSURE CLASS

150, 300, 400, 600, 900, 1500, 2500

ASME/ANSI B 16.47

Welding Neck Flange, Blind Flange [Series A & B]

PRESSURE CLASS

75, 150, 300, 400, 600, 900

ASME/ANSI B 16.36

Welding Neck Flange, Slip on Flange, Threaded Flange

PRESSURE CLASS

300, 400, 600, 900, 1500, 2500

BS 4504 SEC 3.1

Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange

PRESSURE CLASS

PN 2.5 TO PN 40

BS 4504[PART 1]

Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange

PRESSURE CLASS

PN 2.5 TO PN 400

BS 1560 BOSS

Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange

PRESSURE CLASS

150, 300, 400, 600, 900, 1500, 2500

BS10

Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange

TABLE

D, E, F, H

DIN FLANGES

DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673

PRESSURE CLASS

PN 6 TO PN 100

ASTM A182 F5 Alloy Steel Flanges Application Industries
  • Petrochemical Industry
  •   Chemical Industry
  •   Oil and Gas Industry
  •   Pulp & Paper Industry
  •   Power Plant Industry
  •   Food Processing Industry
  •   Pharmaceuticals Industry
  •   Energy Industry
  •   Aerospace Industry
Types of Alloy Steel F5 Flanges:
Alloy Steel F5 Square Flanges F5 Alloy Steel Slip on Flanges
Alloy Steel A182 F5 Weld Neck Flanges ASTM A182 Alloy Steel F5 Blind Flanges
ANSI B16.5 Alloy Steel F5 Socket Weld Flanges ASTM A182 F5 Alloy Steel Orifice Flanges
Chrome Moly F5 Ring Type Joint Flanges ASME SA182 F5 Alloy Steel Threaded Flanges
ASME SA182 F5 Lap Joint Flanges AS F5 Long Weld Neck Flanges
Alloy Steel F5 Spectacle Blind Flanges ASTM A182 Alloy Steel F5 Paddle Blind Flanges
ASME SA182 Alloy Steel F5 Ring Spacer Flanges Alloy Steel F5 Backing Ring Flanges
ANSI B16.47 Alloy Steel F5 Nipoflange ANSI B16.5 Alloy Steel F5 Weldoflange
Alloy Steel F5 Flangeolet Alloy Steel F5 Bleed, Drip & Vent Ring Flanges
Alloy Steel F5 Forged Flange Alloy Steel F5 ANSI Plate Flanges
Alloy Steel Grade F5 Raised Face Flanges ASTM A182 Alloy Steel F5 Tongue and Groove Flanges
A182 Alloy Steel F5 Male & Female Flanges A182 F5 Alloy Steel Reducing Flanges
Alloy Steel F5 ANSI/ASME B16.5 Flanges A182 F5 Alloy Steel High Hub Blind Flanges
Alloy Steel F5 ANSI/ASME B16.47 Flanges A182 F5 Alloy Steel BS 10 Flanges
