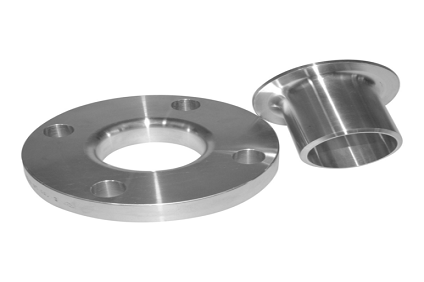

ASTM A182 Lap Joint Flanges
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Lap Joint Flanges, ASTM A182 Lap Joint Flanges, Stainless Steel Lap Joint Flanges, ANSI B16.5 Lap Joint Flanges, Steel Lap Joint Flanges Manufacturers, Carbon Steel Lap Joint Flanges, Steel Lap Joint Flanges Suppliers In India.
Lap Joint Flanges Exporter, ASTM A182 Lap Joint Flanges Dealers, Stainless Steel Lap Joint Flanges Manufacturers, ANSI B16.5 Lap Joint Flanges Stockist, Steel Lap Joint Flanges Manufacturers & Suppliers In India.
Detailed Information
What is a lap joint flange
A two-part assembly known as a lap-joint flange has a stub end that a lap-joint ring flange is put over. Following butt welding of the stub end to the pipe, the flange ring may be turned to line up with the mating flange. For large or difficult-to-adjust flanges, this form of flange connection is especially helpful.
Lap joint flange advantages and disadvantages
Lap joint flanges benefit in use from two clear benefits thanks to their composite two-piece construction. Imagine a lapped joint piping connection where all “wetted” sections must be made of a costly alloy (such as nickel, zirconium, tantalum, or titanium, etc.) to withstand corrosion. The expensive, corrosion-resistant alloy can be used to create the stub end, and ordinary carbon steels can be used to create the lap joint flange that serves as the backing flange. This is less expensive than an entire metal flange. However, because the lap joint flange is not itself welded to the pipe, it can move easily to align bolt holes, making installation and disassembly much simpler. This makes it easier to operate a piping system that must frequently be disassembled for inspection or standard upkeep.
Lap Joint flange dimensions are covered by ASME B16.5, which also includes Pipe Flanges and Flanged Fittings for sizes NPS 12″ to 24″. For sizes NPS 26″ and above, however, ASME B16.47 should be used instead.
You should look for these things when inspecting a lip flange’s dimensions:
- Body’s outer and inner diameters
- Bolt Circular and Bolt Hole Diameter
- Hub Length
- Bolt Hole Alignment and Straightness
Prashaant Steel & Alloys is known as the pinnacle in the world of metal market for the best quality Threadolets production in India. The lap joint flanges with the stub end assembly is normally used in piping systems which require regular dismantling for inspection and cleaning. These flanges slip over the pipe, and are not welded or otherwise fastened to it. Bolting pressure is transmitted to the gasket by the pressure of the flange against the back of the pipe lap (Stub End). ASTM A182 Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”.
The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable Blind Flanges. The backing flange is the other part of a Stainless Steel Lap Joint Flanges. This flange is all the same as any other flanges but has no raised face. To one side the left, has a slight shoulder in the middle or pipe opening. The front is flat with an external fillet in the middle to suit the fillet of the piece “Stub-end.” Before the sleeve is sold to the adjacent pipe or fit, the flange part of the ANSI B16.5 Lap joint flanges is slipped onto the rear end of the sleeve. The flanges are not in any manner offered or fastened. It is free to rotate with what it joins to for correct alignment. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.
ASTM A182 Lap Joint Flange Specifications
Size |
½” (15 NB) to 48″ (1200NB) |
Standard |
ANSI A182, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820 |
Dimensions |
ANSI A182, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA |
Class |
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
Specialize |
As per drawing |
Connection Type |
Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large |
Form |
SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc |
Stainless Steel |
ASTM A-479, A-182, 304, 304L,304H,304S, 316, 316L,316 Ti, 316H, 309, 310, 310S, 317L, 321, 347, 409, 410, 420, 430, 440, 446, 904L. etc. |
Duplex Steel |
2205, 31803, 32750, 32760, 2101, 2304. |
Alloy Steel |
A-182 – F5, F9, F11, F12, F21, F22 & F91 |
Special Grade |
Stainless Steel 17-4 PH, Alloy 800, Alloy 600. Hastelloy C276. |
Carbon Steel |
A 105, LF 2, Duplex Steel. |
Flanges Applications Industries:
ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :
- Flanges uses in Paper & Pulp Companies
- Stainless Steel Flanges uses in Oil and Gas Industry
- Flanges Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbows Used in Pipeline
- Buttweld Flanges Pipe Forged uses in High Temperature Application
- Flanges uses in Water Pipe Line
- ANSI B16.9 Flanges Pipe Forged can be used in Nuclear power plants
- Flanges useful for High Pressure Applications
- Flanges Long Radius Forged uses in Fabrication and welding Job
- Flanges uses in Food Processing and Dairy Industries
- Flanges Short Radius Forged uses in boiler & heat exchangers
Material & Grades of Lap Joint Flanges
Stainless Steel Lap Joint Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Lap Joint Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Lap Joint Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Lap Joint Flanges : ASTM A350, LF2, LF3
Alloy Steel Lap Joint Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Lap Joint Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Lap Joint Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Lap joint flange dimensions class 150
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | ||||||||||
1/2 | 15 | 90 | 30 | 16 | 22.9 | 60.3 | 11.2 | 3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.8 |
3/4 | 20 | 100 | 38 | 16 | 28.2 | 69.9 | 12.7 | 3 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
1 | 25 | 110 | 49 | 17 | 34.9 | 79.4 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
1 1/4 | 32 | 115 | 59 | 21 | 43.7 | 88.9 | 15.9 | 5 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
1 1/2 | 40 | 125 | 65 | 22 | 50 | 98.4 | 17.5 | 6 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.4 |
2 | 50 | 150 | 78 | 25 | 62.5 | 120.7 | 19.1 | 8 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
2 1/2 | 65 | 180 | 90 | 29 | 75.4 | 139.7 | 22.3 | 8 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
3 | 80 | 190 | 108 | 30 | 91.4 | 152.4 | 23.9 | 10 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
3 1/2 | 90 | 215 | 122 | 32 | 104.1 | 177.8 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5 |
4 | 100 | 230 | 135 | 33 | 116.8 | 190.5 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
5 | 125 | 255 | 164 | 36 | 144.4 | 215.9 | 23.9 | 11 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 6.8 |
6 | 150 | 280 | 192 | 40 | 171.4 | 241.3 | 25.4 | 13 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 8.6 |
8 | 200 | 345 | 246 | 44 | 222.2 | 298.5 | 28.6 | 13 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 13.7 |
10 | 250 | 405 | 305 | 49 | 277.4 | 362 | 30.2 | 13 | 12 | 7/8 | 100 | 115 | 1 | M24 | 19.5 |
12 | 300 | 485 | 365 | 56 | 328.2 | 431.8 | 31.8 | 13 | 12 | 7/8 | 100 | 120 | 1 | M24 | 29 |
14 | 350 | 535 | 400 | 79 | 360.2 | 476.3 | 35 | 13 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 41 |
16 | 400 | 595 | 457 | 87 | 411.2 | 539.8 | 36.6 | 13 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 54 |
18 | 450 | 635 | 505 | 97 | 462.3 | 577.9 | 39.7 | 13 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 59 |
20 | 500 | 700 | 559 | 103 | 514.4 | 635 | 42.9 | 13 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 75 |
24 | 600 | 815 | 663 | 111 | 616 | 749.3 | 47.9 | 13 | 20 | 1 1/4 | 150 | 170 | 1 3/8 | M33 | 100 |
The dimensions are in millimeters
Lap joint flange dimensions class 300
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | ||||||||||
1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 1.2 |
3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
1 1/4 | 32 | 135 | 64 | 27 | 43.7 | 98.4 | 19.1 | 5 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 1.8 |
1 1/2 | 40 | 155 | 70 | 30 | 50 | 114.3 | 20.7 | 6 | 4 | 3/4 | 75 | 90 | 7/8 | M20 | 2.7 |
2 | 50 | 165 | 84 | 33 | 62.5 | 127 | 22.3 | 8 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
2 1/2 | 65 | 190 | 100 | 38 | 75.4 | 149.2 | 25.4 | 8 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 4.6 |
3 | 80 | 210 | 117 | 43 | 91.4 | 168.3 | 28.6 | 10 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 5.9 |
3 1/2 | 90 | 230 | 133 | 44 | 104.1 | 184.2 | 30.2 | 11 | 8 | 3/4 | 95 | 110 | 7/8 | M20 | 7.7 |
4 | 100 | 255 | 146 | 48 | 116.8 | 200 | 31.8 | 11 | 8 | 3/4 | 95 | 115 | 7/8 | M20 | 10 |
5 | 125 | 280 | 178 | 51 | 144.4 | 235 | 35 | 11 | 8 | 3/4 | 110 | 120 | 7/8 | M20 | 12.7 |
6 | 150 | 320 | 206 | 52 | 171.4 | 269.9 | 36.6 | 13 | 12 | 3/4 | 110 | 120 | 7/8 | M20 | 17.7 |
8 | 200 | 380 | 260 | 62 | 222.2 | 330.2 | 41.3 | 13 | 12 | 7/8 | 120 | 140 | 1 | M24 | 26 |
10 | 250 | 445 | 321 | 95 | 277.4 | 387.4 | 47.7 | 13 | 16 | 1 | 140 | 160 | 1 1/8 | M27 | 36 |
12 | 300 | 520 | 375 | 102 | 328.2 | 450.8 | 50.8 | 13 | 16 | 1 1/8 | 145 | 170 | 1 1/4 | M30 | 52 |
14 | 350 | 585 | 425 | 111 | 360.2 | 514.4 | 54 | 13 | 20 | 1 1/8 | 160 | 180 | 1 1/4 | M30 | 75 |
16 | 400 | 650 | 483 | 121 | 411.2 | 571.5 | 57.2 | 13 | 20 | 1 1/4 | 165 | 190 | 1 3/8 | M33 | 86 |
18 | 450 | 710 | 533 | 130 | 462.3 | 628.6 | 60.4 | 13 | 24 | 1 1/4 | 170 | 195 | 1 3/8 | M33 | 113 |
20 | 500 | 775 | 587 | 140 | 514.4 | 685.8 | 63.5 | 13 | 24 | 1 1/4 | 185 | 205 | 1 3/8 | M33 | 143 |
24 | 600 | 915 | 702 | 153 | 616 | 812.8 | 69.9 | 13 | 24 | 1 1/2 | 205 | 230 | 1 5/8 | M39 | 216 |
lap joint flange dimensions class 400
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | |||||||||
1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 75 | 5/8 | M14 | 1.3 |
3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.5 |
1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
1 1/4 | 32 | 135 | 64 | 29 | 43.7 | 98.4 | 20.7 | 5 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
1 1/2 | 40 | 155 | 70 | 32 | 50 | 114.3 | 22.3 | 6 | 4 | 3/4 | 110 | 7/8 | M20 | 3.2 |
2 | 50 | 165 | 84 | 37 | 62.5 | 127 | 25.4 | 8 | 8 | 5/8 | 110 | 3/4 | M16 | 4.1 |
2 1/2 | 65 | 190 | 100 | 41 | 75.4 | 149.2 | 28.6 | 8 | 8 | 3/4 | 120 | 7/8 | M20 | 5.9 |
3 | 80 | 210 | 117 | 46 | 91.4 | 168.3 | 31.8 | 10 | 8 | 3/4 | 125 | 7/8 | M20 | 7.3 |
3 1/2 | 90 | 230 | 133 | 49 | 104.1 | 184.2 | 35 | 10 | 8 | 7/8 | 140 | 1 | M24 | 9.6 |
4 | 100 | 255 | 146 | 51 | 116.8 | 200 | 35 | 11 | 8 | 7/8 | 140 | 1 | M24 | 11.8 |
5 | 125 | 280 | 178 | 54 | 144.5 | 235 | 38.1 | 11 | 8 | 7/8 | 145 | 1 | M24 | 14.1 |
6 | 150 | 320 | 206 | 57 | 171.4 | 269.9 | 41.3 | 13 | 12 | 7/8 | 150 | 1 | M24 | 20 |
8 | 200 | 380 | 260 | 68 | 222.2 | 330 | 47.7 | 13 | 12 | 1 | 170 | 1 1/8 | M27 | 31 |
10 | 250 | 445 | 321 | 102 | 277.4 | 387.4 | 54 | 13 | 16 | 1 1/8 | 190 | 1 1/4 | M30 | 42 |
12 | 300 | 520 | 375 | 108 | 328.2 | 450.8 | 57.2 | 13 | 16 | 1 1/4 | 205 | 1 3/8 | M33 | 59 |
14 | 350 | 585 | 425 | 117 | 360.2 | 514.4 | 60.4 | 13 | 20 | 1 1/4 | 210 | 1 3/8 | M33 | 82 |
16 | 400 | 650 | 483 | 127 | 411.2 | 571.5 | 63.5 | 13 | 20 | 1 3/8 | 220 | 1 1/2 | M36 | 107 |
18 | 450 | 710 | 533 | 137 | 462.3 | 628.6 | 66.7 | 13 | 24 | 1 3/8 | 230 | 1 1/2 | M36 | 130 |
20 | 500 | 775 | 587 | 146 | 514.4 | 685.8 | 69.9 | 13 | 24 | 1 1/2 | 240 | 1 3/4 | M39 | 157 |
24 | 600 | 915 | 702 | 159 | 616 | 812.8 | 76.2 | 13 | 24 | 1 3/4 | 265 | 1 7/8 | M45 | 232 |
Lap Joint Flange Dimensions 600
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | |||||||||
1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 75 | 5/8 | M14 | 1.3 |
3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.4 |
1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
1 1/4 | 32 | 135 | 64 | 29 | 43.7 | 98.4 | 20.7 | 5 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
1 1/2 | 40 | 155 | 70 | 32 | 50 | 114.3 | 22.3 | 6 | 4 | 3/4 | 110 | 7/8 | M20 | 3.2 |
2 | 50 | 165 | 84 | 37 | 62.5 | 127 | 25.4 | 8 | 8 | 5/8 | 110 | 3/4 | M16 | 4.1 |
2 1/2 | 65 | 190 | 100 | 41 | 75.4 | 149.2 | 28.6 | 8 | 8 | 3/4 | 120 | 7/8 | M20 | 5.9 |
3 | 80 | 210 | 117 | 46 | 91.4 | 168.3 | 31.8 | 10 | 8 | 3/4 | 125 | 7/8 | M20 | 7.3 |
3 1/2 | 90 | 230 | 133 | 49 | 104.1 | 184.2 | 35 | 11 | 8 | 7/8 | 140 | 1 | M24 | 9.6 |
4 | 100 | 275 | 152 | 54 | 116.8 | 215.9 | 38.1 | 11 | 8 | 7/8 | 145 | 1 | M24 | 16.8 |
5 | 125 | 330 | 189 | 60 | 144.4 | 266.7 | 44.5 | 11 | 8 | 1 | 165 | 1 1/8 | M27 | 29 |
6 | 150 | 355 | 222 | 67 | 171.4 | 292.1 | 47.7 | 13 | 12 | 1 | 170 | 1 1/8 | M27 | 36 |
8 | 200 | 420 | 273 | 76 | 222.2 | 349.2 | 55.6 | 13 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 52 |
10 | 250 | 510 | 343 | 111 | 277.4 | 431.8 | 63.5 | 13 | 16 | 1 1/4 | 215 | 1 3/8 | M33 | 77 |
12 | 300 | 560 | 400 | 117 | 328.2 | 489 | 66.7 | 13 | 20 | 1 1/4 | 220 | 1 3/8 | M33 | 91 |
14 | 350 | 605 | 432 | 127 | 360.2 | 527 | 69.9 | 13 | 20 | 1 3/8 | 235 | 1 1/2 | M36 | 105 |
16 | 400 | 685 | 495 | 140 | 411.2 | 603.2 | 76.2 | 13 | 20 | 1 1/2 | 255 | 1 5/8 | M39 | 150 |
18 | 450 | 745 | 546 | 152 | 462.3 | 654 | 82.6 | 13 | 20 | 1 5/8 | 275 | 1 3/4 | M42 | 182 |
20 | 500 | 815 | 610 | 165 | 514.4 | 723.9 | 88.9 | 13 | 24 | 1 5/8 | 285 | 1 3/4 | M42 | 232 |
24 | 600 | 940 | 718 | 184 | 616 | 838.2 | 101.6 | 13 | 24 | 1 7/8 | 330 | 2 | M48 | 332 |
lap joint flange dimensions class 900
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | |||||||||
1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 75 | 5/8 | M14 | 1.3 |
3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.4 |
1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
1 1/4 | 32 | 135 | 64 | 29 | 43.7 | 98.4 | 20.7 | 5 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
1 1/2 | 40 | 155 | 70 | 32 | 50 | 114.3 | 22.3 | 6 | 4 | 3/4 | 110 | 7/8 | M20 | 3.2 |
2 | 50 | 165 | 84 | 37 | 62.5 | 127 | 25.4 | 8 | 8 | 5/8 | 110 | 3/4 | M16 | 4.1 |
2 1/2 | 65 | 190 | 100 | 41 | 75.4 | 149.2 | 28.6 | 8 | 8 | 3/4 | 120 | 7/8 | M20 | 5.9 |
3 | 80 | 210 | 117 | 46 | 91.4 | 168.3 | 31.8 | 10 | 8 | 3/4 | 125 | 7/8 | M20 | 7.3 |
3 1/2 | 90 | 230 | 133 | 49 | 104.1 | 184.2 | 35 | 11 | 8 | 7/8 | 140 | 1 | M24 | 9.6 |
4 | 100 | 275 | 152 | 54 | 116.8 | 215.9 | 38.1 | 11 | 8 | 7/8 | 145 | 1 | M24 | 16.8 |
5 | 125 | 330 | 189 | 60 | 144.4 | 266.7 | 44.5 | 11 | 8 | 1 | 165 | 1 1/8 | M27 | 29 |
6 | 150 | 355 | 222 | 67 | 171.4 | 292.1 | 47.7 | 13 | 12 | 1 | 170 | 1 1/8 | M27 | 36 |
8 | 200 | 420 | 273 | 76 | 222.2 | 349.2 | 55.6 | 13 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 52 |
10 | 250 | 510 | 343 | 111 | 277.4 | 431.8 | 63.5 | 13 | 16 | 1 1/4 | 215 | 1 3/8 | M33 | 77 |
12 | 300 | 560 | 400 | 117 | 328.2 | 489 | 66.7 | 13 | 20 | 1 1/4 | 220 | 1 3/8 | M33 | 91 |
14 | 350 | 605 | 432 | 127 | 360.2 | 527 | 69.9 | 13 | 20 | 1 3/8 | 235 | 1 1/2 | M36 | 105 |
16 | 400 | 685 | 495 | 140 | 411.2 | 603.2 | 76.2 | 13 | 20 | 1 1/2 | 255 | 1 5/8 | M39 | 150 |
18 | 450 | 745 | 546 | 152 | 462.3 | 654 | 82.6 | 13 | 20 | 1 5/8 | 275 | 1 3/4 | M42 | 182 |
20 | 500 | 815 | 610 | 165 | 514.4 | 723.9 | 88.9 | 13 | 24 | 1 5/8 | 285 | 1 3/4 | M42 | 232 |
24 | 600 | 940 | 718 | 184 | 616 | 838.2 | 101.6 | 13 | 24 | 1 7/8 | 330 | 2 | M48 | 332 |
Lap joint flange dimensions class 1500
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | |||||||||
1/2 | 15 | 120 | 38 | 32 | 22.9 | 82.6 | 22.3 | 3 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
3/4 | 20 | 130 | 44 | 35 | 28.2 | 88.9 | 25.4 | 3 | 4 | 3/4 | 115 | 7/8 | M20 | 2.3 |
1 | 25 | 150 | 52 | 41 | 34.9 | 101.6 | 28.6 | 3 | 4 | 7/8 | 125 | 1 | M24 | 3.7 |
1 1/4 | 32 | 160 | 64 | 41 | 43.7 | 111.1 | 28.6 | 5 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
1 1/2 | 40 | 180 | 70 | 44 | 50 | 123.8 | 31.8 | 6 | 4 | 1 | 140 | 1 1/8 | M27 | 5.5 |
2 | 50 | 215 | 105 | 57 | 62.5 | 165.1 | 38.1 | 8 | 8 | 7/8 | 145 | 1 | M24 | 9.8 |
2 1/2 | 65 | 245 | 124 | 64 | 75.4 | 190.5 | 41.3 | 8 | 8 | 1 | 160 | 1 1/8 | M27 | 16.4 |
3 | 80 | 265 | 133 | 73 | 91.4 | 203.2 | 47.7 | 10 | 8 | 1 1/8 | 180 | 1 1/4 | M30 | 21.8 |
4 | 100 | 310 | 162 | 90 | 116.8 | 241.3 | 54 | 11 | 8 | 1 1/4 | 195 | 1 3/8 | M33 | 33 |
5 | 125 | 375 | 197 | 105 | 144.4 | 292.1 | 73.1 | 11 | 8 | 1 1/2 | 250 | 1 5/8 | M39 | 59 |
6 | 150 | 395 | 229 | 119 | 171.4 | 317.5 | 82.6 | 13 | 12 | 1 3/8 | 260 | 1 1/2 | M36 | 75 |
8 | 200 | 485 | 292 | 143 | 222.2 | 393.7 | 92.1 | 13 | 12 | 1 5/8 | 290 | 1 3/4 | M42 | 118 |
10 | 250 | 585 | 368 | 178 | 277.4 | 482.6 | 108 | 13 | 12 | 1 7/8 | 335 | 2 | M48 | 198 |
12 | 300 | 675 | 451 | 219 | 328.2 | 571.5 | 123.9 | 13 | 16 | 2 | 375 | 2 1/8 | M52 | 264 |
14 | 350 | 750 | 495 | 241 | 360.2 | 635 | 133.4 | 13 | 16 | 2 1/4 | 405 | 2 3/8 | M56 | 341 |
16 | 400 | 825 | 552 | 260 | 411.2 | 704.8 | 146.1 | 13 | 16 | 2 1/2 | 445 | 2 5/8 | M64 | 454 |
18 | 450 | 915 | 597 | 276 | 462.3 | 774.7 | 162 | 13 | 16 | 2 3/4 | 495 | 2 7/8 | M72 | 590 |
20 | 500 | 985 | 641 | 292 | 514.4 | 831.8 | 177.8 | 13 | 16 | 3 | 540 | 3 1/8 | M76 | 792 |
24 | 600 | 1170 | 762 | 330 | 616 | 990.6 | 203.2 | 13 | 16 | 3 1/2 | 615 | 3 5/8 | M90 | 1248 |
Lap joint flange dimensions class 2500
Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
A | B | C | D | E | G | |||||||||
1/2 | 15 | 135 | 43 | 40 | 22.9 | 88.9 | 30.2 | 3 | 4 | 3/4 | 120 | 7/8 | M20 | 3.2 |
3/4 | 20 | 140 | 51 | 43 | 28.2 | 95.2 | 31.8 | 3 | 4 | 3/4 | 125 | 7/8 | M20 | 3.7 |
1 | 25 | 160 | 57 | 48 | 34.9 | 108 | 35 | 3 | 4 | 7/8 | 140 | 1 | M24 | 5 |
1 1/4 | 32 | 185 | 73 | 52 | 43.7 | 130.2 | 38.1 | 5 | 4 | 1 | 150 | 1 1/8 | M27 | 7.5 |
1 1/2 | 40 | 205 | 79 | 60 | 50 | 146 | 44.5 | 6 | 4 | 1 1/8 | 170 | 1 1/4 | M30 | 10 |
2 | 50 | 235 | 95 | 70 | 62.5 | 171.4 | 50.9 | 8 | 8 | 1 | 180 | 1 1/8 | M27 | 17.5 |
2 1/2 | 65 | 265 | 114 | 79 | 75.4 | 196.8 | 57.2 | 8 | 8 | 1 1/8 | 195 | 1 1/4 | M30 | 23 |
3 | 80 | 305 | 133 | 92 | 91.4 | 228.6 | 66.7 | 10 | 8 | 1 1/4 | 220 | 1 3/8 | M33 | 37.8 |
4 | 100 | 355 | 165 | 108 | 116.8 | 273 | 76.2 | 11 | 8 | 1 1/2 | 255 | 1 5/8 | M39 | 57 |
5 | 125 | 420 | 203 | 130 | 144.4 | 323.8 | 92.1 | 11 | 8 | 1 3/4 | 300 | 1 7/8 | M45 | 95 |
6 | 150 | 485 | 235 | 152 | 171.4 | 368.3 | 108 | 13 | 8 | 2 | 345 | 2 1/8 | M52 | 148 |
8 | 200 | 550 | 305 | 178 | 222.2 | 438.2 | 127 | 13 | 12 | 2 | 380 | 2 1/8 | M52 | 221 |
10 | 250 | 675 | 375 | 229 | 277.4 | 539.8 | 165.1 | 13 | 12 | 2 1/2 | 490 | 2 5/8 | M64 | 425 |
12 | 300 | 760 | 441 | 254 | 328.2 | 619.1 | 184.2 | 13 | 12 | 2 3/4 | 540 | 2 7/8 | M72 | 500 |

Types of Flanges Available:
- Blind Flanges
- Slip on Flanges
- Socket Weld Flanges
- Threaded Flanges
- Weld Neck Flange
- Lap Joint Flange
- Expander Flange
- Nippo Flanges
- Reducing
Our Products
CITIES WE DELIVER
Rajkot, New Delhi, Chandigarh, Bogota, Bangkok, Secunderabad, Rio de Janeiro, Hanoi, Dallas, Courbevoie, Kuala Lumpur, Al Jubail, Dammam, Nagpur, Gurgaon, Sydney, Ankara, Karachi, London, Sharjah, Calgary, Visakhapatnam, Toronto, Vung Tau, Riyadh, Brisbane, Nashik, Milan, Port-of-Spain, Kolkata, Surat, Houston, Baroda, Cairo, Jamshedpur, New York, Ahmedabad, Al Khobar, Kuwait City, Kanpur, Los Angeles, Coimbatore, Vadodara, Thane, Ludhiana, Edmonton, Mumbai, Granada, Faridabad, Singapore, Montreal, Muscat, Abu Dhabi, Geoje-si, Ranchi, Chennai, Bengaluru, Madrid, Lahore, Thiruvananthapuram, Tehran, Ernakulam, Chiyoda, Seoul, Howrah, Algiers, Istanbul, Colombo, Atyrau, Doha, Gimhae-si, Jaipur, Indore, Manama, Navi Mumbai, Jakarta, Pimpri-Chinchwad, Hong Kong, Caracas, Ahvaz, Mexico City, Dubai, Lagos, Perth, Ulsan, Aberdeen, Melbourne, La Victoria, Pune, Noida, Jeddah, Petaling Jaya, Haryana, Santiago, Ho Chi Minh City, Bhopal, Hyderabad, Moscow, Busan, Kazakhstan, South Africa, Portugal, Italy, United States, Singapore, Costa Rica, Libya, Philippines, Afghanistan, Trinidad & Tobago,Tunisia, Finland, Sweden, China, New Zealand, Qatar, Iran, Denmark, Vietnam, Nigeria, Tibet, Peru, Malaysia, India, Jordan, Belarus, Iraq, Ireland, Thailand, Germany, Puerto Rico, Belgium, Mongolia, Greece, Kuwait, Pakistan, Zimbabwe, Ukraine, Canada, Azerbaijan, Romania, Ecuador, Hong Kong, Macau, Gambia, Norway, Namibia, Algeria, Australia, Oman, Bulgaria, Saudi Arabia, United Arab Emirates, France, Austria, Argentina, Mexico, Czech Republic, Iran, Russia, Nepal, Mexico, Yemen, Hungary, Serbia, Estonia, Turkey, Lebanon, Colombia, Slovakia, Taiwan, Kenya, Chile, Switzerland, Sri Lanka, Netherlands, United Kingdom, Egypt, Bahrain, Chile, Bhutan, Nigeria, Brazil, Bolivia, Bangladesh, Venezuela, Lithuania, Angola, Poland, Morocco, Japan, Gabon, Israel, Ghana, South Korea, Croatia, Poland, Spain, Indonesia.
Countries We Deliver
Iran, Venezuela, Saudi Arabia, Slovakia, Romania, Zimbabwe, Spain, Kazakhstan, Canada, Nigeria, Bulgaria, Afghanistan, Thailand, Bangladesh, Poland, United Kingdom, Bahrain, Jordan, Lithuania, Malaysia, France, Nigeria, Japan, Oman, Lebanon, Germany, Croatia, Australia, Puerto Rico, South Korea, Hungary, United States, Bhutan, Mexico, Mexico, Yemen, Singapore, New Zealand, Ecuador, Gabon, Qatar, Denmark, Iran, Netherlands, Norway, Sri Lanka, Belgium, Libya, Kuwait, Pakistan, Gambia, Sweden, Azerbaijan, Argentina, Chile, Ghana, United Arab Emirates, Finland, Nepal, Trinidad and Tobago,Tunisia, Kenya, Peru, Austria, Russia, Ukraine, Italy, Belarus, Bolivia, Serbia, Poland, Mongolia, Turkey, Czech Republic, South Africa, Angola, India, Vietnam, Indonesia, Tibet, Ireland, Costa Rica, Greece, Colombia, Namibia, Iraq, Estonia, Israel, Macau, Philippines, Brazil, Switzerland, Algeria, Morocco, Chile, Portugal, Egypt, Taiwan, China, Hong Kong.
