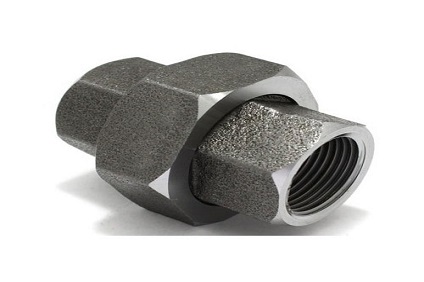

Forged Union Fitting

ANSI B16.11 Alloy 20 Forged Union Fitting, Hastelloy Forged Union Fitting, Incoloy Forged Union Fitting Wholesaler, Cupro Nickel Forged Union Fitting, High Quality Forged Union Fitting Dealer, SMO 254 Forged Union Fitting Stockist, Duplex Steel High Pressure Forged Union Fitting, Buy Austenitic Stainless Steel Forged Union Fitting, TForged Union Fitting Supplier in Mumbai, India.

Forged Steel Socket Weld/Threaded Forged Union Fitting are available in class 3000, 6000 and 9000. Forged Union Fitting are available in class 2000, 3000 and 6000.

Detailed Information

Prashaant Steel & Alloys is one of the best manufacturers, suppliers, and exporters of the superior quality of Threading Outlets. We are one of the largest manufacturers of all types of outlets. The whole manufacturing process is subjected to pure quality control. We are the customer-focused industry and are offering the same to the buyers at various specifications that vary in dimensions, sizes, standards, types, dimensions, and classes. We are always taking care of the needs of every buyer and making it easily available at custom-built specifications and standards.

Our high-grade outlets are enriched with numerous good qualities such as High tensile strength, good dimensional accuracy, excellent surface finishes, Anti-corrosive body, Heat resistance, hold high pressure, General corrosion resistance, Pitting and oxidation resistance, Good mechanical properties, and many more.

Prashaant Steel & Alloys offers a commendable range of Union Fittings for the prestigious clients with competitive price, we at Prashaant Steel & Alloys have the manufacturing capability & production flexibility to respond to the most dynamic & complex needs of our customers. Being leading manufacturers and exporters for Carbon Steel Buttweld Fittings, Carbon Steel Forged Fittings, Flanges, Pipes, & Fasteners and other related manufacturing products, is an ever growing firm with its high motive of Customers satisfaction and quality consciousness of high attainable level. We are exceptional in providing the best quality Union Fittings.

Specification of Union Fittings:

Nom. Pipe Size Pipe End Min Socket Bore Dia. Socket Wall Min. Water Way Bore Laying Length Male Flange Min. Nut Min. Threads Per 25.4 Max Bearing Min. Depth of Socket Min. Length Assem. Nominal Clear Assem. Nut
  A B C D E F G H J K L N
1/8 21.8

10.92

10.67

3.17

6.83

6.43

22.4

19.0

3.17 3.17 16 1.24 9.6 41.1 49.0
¼ 21.8

14.22

13.97

3.30

9.85

9.45

22.4

19.0

3.17 3.17 19 1.24 9.6 41.4 49.0
3/8 25.9

17.78

17.53

3.48

13.92

13.51

26.9

20.6

3.43 3.43 14 1.37 9.6 46.0 55.0
½ 31.2

21.84

21.59

4.06

17.47

17.07

26.9

20.6

3.68 3.68 14 1.50 9.6 49.0 57.0
¾ 37.1

27.18

26.92

4.27

21.79

21.39

31.8

25.4

4.06 4.06 11 1.68 12.7 56.9 67.0
1 45.5

34.04

33.78

4.95

28.14

27.74

34.3

26.2

4.57 4.44 11 1.85 12.7 62.0 79.0
11/4 54.9

42.67

42.42

5.28

35.76

35.36

40.6

32.5

5.33 5.21 11 2.13 12.7 71.1 94.0
11/2 61.5

48.77

48.51

5.54

41.61

41.20

42.2

34.0

5.84 5.59 10 2.31 12.7 75.5 111.0
2 75.2

61.47

61.21

6.05

52.53

52.12

45.3

37.3

6.60 6.35 10 2.69 15.8 86.1 132.0
21/2 91.7

74.17

73.66

7.65

64.72

64.31

61.7

52.1

7.49 7.11 8 3.07 15.8 102.4 148.0
3 109.2

90.17

89.66

8.31

77.67

77.27

63.8

53.6

8.25 8.00 8 3.53 15.8 109.0 175.0



Carbon Steel Union Fittings Suppliers Exporters & Stockist in India

ASTM / ASME A 105.

ASTM / ASME A 350 LF 2.

Nickel Alloy Union Fittings Suppliers Exporters & Stockist in India
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Copper Alloy Union Fittings Suppliers Exporters & Stockist in India

ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.

ASTM / ASME SB 151 UNS NO. 70600, 71500, C70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

Stainless Steel Union Fittings Suppliers Exporters & Stockist in India
ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel Union Fittings Suppliers Exporters & Stockist in India
ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Alloy Steel Union Fittings Suppliers Exporters & Stockist in India
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

Union Fittings Application Industries:

Prashaant Steel & Alloys are engaged in manufacturing of robust quality of Union Fittings. These Union Fittings are widely used in the following industries:

  • Mining Industries
  • Transport Industries- Rail and Road
  • Construction Industries / Building Systems
  • Manufacturing Industries
  • Agriculture Industries
  • Energy Industries
  • Water Industries
  • Automotive Industries
  • Ship Building Industries
  • Nuclear Power Plant
  • Paper & Pulp Industries
  • Sugar Industries
  • Engineering Cement Industries
  • Petro-Chemical Industries
  • Food Industries
  • Oil & Gas Industries
  • Chemical & Pharmaceutical Industries
