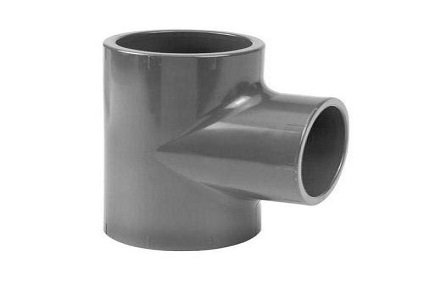

Tee Pipe Fittings

We are Global Manufacturer, Stockist, Exporter of Tee Pipe Fittings In Stainless Steel, Duplex Steel, Nickel Alloy 200, Monel Steel, Alloy Steel, Copper Nickel, Alloy 20, Hastelloy C22 Available in All Dimensions.

Mumbai India Based Suppliers of Buttweld Tee Fittings, Seamless Tee Pipe Fittings, ASME B16.9 Tee Fittings, Welded Tee Fittings, ANSI B16.9 Tee Pipe Fittings At Most Reasonable Prices In India.

Detailed Information

Prashaant Steel & Alloys  is counted as one of the privileged manufacturers, traders, exporters and suppliers of an admirable range of Tees Pipe Fittings. Comes in different forms such as Seamless Tee Pipe Fittings, ASME B16.9 Tee Pipe Fittings, ANSI B16.9 Tee Pipe Fittings,

Welded Tee Pipe Fittings are flawlessly engineered using the latest technology and are widely used in diverse piping systems across industries. The function of a tee is to permit flow at 90 Deg to the main direction of flow, where the main flow passes through the ‘run’ whilst

The 90 Degree outlets are known as the ‘branch’. We offer the same in different categories such as Stainless Steel Tees, Carbon Steel Tees, Alloy Steel Tees, Duplex Steel Tees, Super Duplex Steel Tees, and more. Our offered Tees Butt Weld Pipe Fittings is being developed and designed in accordance with the international quality of standards at our infrastructure facility to attain the highest scales of quality.

we are exporter of Stainless Steel Tee’s, Stainless Steel Stub Ends, Stainless Steel Double Flanged Fittings, Stainless Steel Fabricated Fittings, Threaded Stainless Steel Fittings, NPT Fittings, SS 304/304L Pipe Fittings, SS 316/316L Pipe Fittings, SS 316Ti Fittings, Stainless Steel U Bends, Stainless Steel Reducers, Stainless Steel 5D/3D Elbow, Stainless Steel Tube Fittings

Buttweld Pipe Tee Production Range – Equal Tee, Unequal Tee (Reducing Tee):

Outside Diameter:

Seamless Pipe Tee ( 1/2″~24″), ERW / Welded / Fabricated Pipe Tee (1/2″~48″)

Type:

Equal Tees, Reducing Tees

Wall Thickness:

3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Value Added Services:

Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades:

Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards – Pipe Tee:

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN 10253-1, EN 10253-2

ASTM A403

ASME SA403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9

Factory-Made Wrought Fittings Buttwelding

ASME B16.25

Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns

MSS SP-43

Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Tee Material Grades:

Stainless Steel Tee:

ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Tee:

ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Tee

ASTM A420 WPL3, A420 WPL6

Alloy Steel Tee:

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Tee:

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Nickel Alloy Tee:

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UND 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
