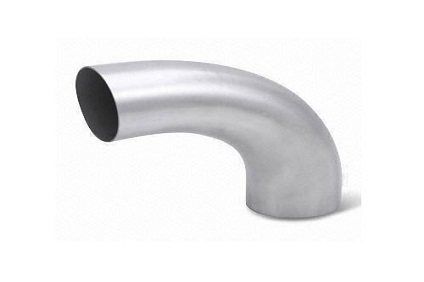

ANSI B16.9 Bend

Stainless Steel ASME B16.9 Bend Manufacturer, Carbon steel Pipe bend Manufacturer in India.

Purchase 5d Pipe Bend & ISO 15590-1 Bends at Best Price in Mumbai, Check ASME B16.9 Bend Manufacturer India.

Detailed Information

Prashaant Steel & Alloys is well-known on the international market and is eager to include high-quality ASME B16.9 Bends. Prashaant Steel & Alloys is a producer, supplier, stockiest, and exporter of ASME B16.9 Bends, and exports the material to global customers at reasonable prices. ASME B16.9 Bends are made in line with established manufacturing practises, allowing for the most effective use of raw materials. We market ASME B16.9 Bends in custom thicknesses and styles to suit the needs of our customers. The bars are made under the close guidance of a knowledgeable team with considerable expertise in the industry. We also allow the use of modern equipment and cutting-edge technology, allowing Prashaant Steel & Alloys to achieve better results. Many quality standards for raw materials are also used to achieve production. The role of the quality control department in ensuring product quality is assuring in providing commendable product continuity. A number of raw material quality requirements are also taken into account during processing. The Quality Control Department’s role in ensuring product quality is to achieve reliable, commendable outcomes.

Specification of ASME B16.9 5d bend:

Production range

Seamless bends

Welding bends

Outside diameter

1/2″~24″

6″~60″

Wall thickness

4mm~200mm

Bending radius

R=3D~10D

Product angle

0°~180°

Materials Of ANSI/ASME B16.9 Long Radius Bend:

  • Carbon steel: ASTM/ASME A234 WPB-WPC
  • Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
  • Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
  • ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
  • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
  • Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
  • High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

ASME B16.9 Welded Pipe Bend Dimensions:

Nominal

PN (MPa)

DN

Thread

D

Pipe Specification

DH×s

L1

L2

L3

(Not less than)

L

(Not less than)

R

32.0

175

M240×6

245×36

120

130

360

1095

735

200

M265×6

273×40

130

140

390

1209

819

225

M320×6

325×50

175

185

525

1500

975

250

M350×6

355.6×55

195

205

580

1650

1070

22.0

175

M215×6

219×24

100

110

300

957

657

200

M240×6

245×26

110

120

330

1065

735

225

M265×6

273×29

115

125

345

1164

819

250

M295×6

299×32

120

130

360

1257

897

ASME B16.9 Long Radius Bend / Pipe Bend Application:

  • Oil Mills
  • Mining
  • Construction
  • Shipbuilding
  • Steel Plant
  • Offshore
  • Defence
  • Ports
  • Railway
  • Engineering Co. &
  • Government Org. etc.
