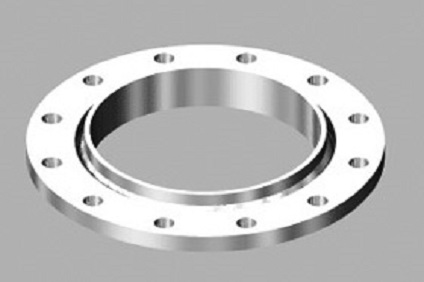

AWWA C207 Class D And E Blind Flange
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
Dimension Table Of Alloy Steel AWWA C207 Steel Pipe Flanges Standard, SS AWWA C207 Class D Flange Manufacturers In India, Buy Super Duplex AWWA C207 Blind Flange At Best Price In Mumbai.
Awwa C207 Class D Flanges Standard Specification/ Dimensions In Mm, Suppliers Of Awwa C207 Blind Flange In India, Awwa C207 Class D Flange Manufacturer In India.
Detailed Information
Prashaant Steel & Alloys is a maker of Awwa C207 Class D Flanges of exceptional quality. The Awwa C207 Class B Flanges that we manufacture are highly common due to their superior quality. Prashaant Steel & Alloys has a production facility that is well-equipped with cutting-edge technology, allowing us to manufacture industry-recognized Awwa C207 Class D Flanges. We believe in customer loyalty at Prashaant Steel, and we aim to satisfy our customers’ expectations and demands in terms of both quality and quantity. Our wide inventory allows us to easily meet bulk orders for our customers. We export our goods to countries all over the world, and we store our Awwa C207 Class D Flanges in durable wooden boxes to prevent loss during transit. Many of the required documentation are also included in our packaging. Raw Materials Stamp, 100% Radiography Examination Report, Third Party Inspection Report, and other records are included with our Awwa C207 Class D Flanges. Mechanical tests, pitting resistance tests, flaring tests, flattening tests, bent tests, positive content recognition tests, intergranular corrosion tests, and micro and macro tests are some of the relevant tests performed on Awwa C207 Class D Flanges. They’re dependable, and upkeep isn’t prohibitively costly. The joining of two or three pipes is a common procedure. The Awwa C207 Class D Flanges are used to secure the end of a pipe. They have a stunning finish with flat corners. Their height is moderate and tolerable. Customers will be able to purchase these Awwa C207 Class D Flanges at affordable prices, as well as in a range of shapes, sizes, and thicknesses.
Stainless Steel AWWA C207 Class D Flange, the specification also mentions the contents of carbon, phosphorus as well as sulfur. The chemistry of Awwa C207 Flange Material must contain a Maximum Carbon content of about 0.29 %, whereas the maximum content of Phosphorus is around 0.04 % and lastly the maximum permissible content of Sulfur is 0.05 %. It is customary for AWWA C207 Class E Flange manufacturers to stamp these flanges with several details including the trademark, class, nominal size, material designation as well as heat. This standard also mentions tolerances for the AWWA C207 Blind Flange Dimensions.
Typically, the use of these flanges is meant for applications involving waterworks. Unless a raised face is mentioned while placing the order, a manufacturer will supply the AWWA C207 Steel Pipe Flanges that are produced with a flat face. If required by the buyer, the producer could also arrange for the test reports of the AWWA C207 Flanges.
AWWA C207 Class D Flange Dimensions:
|
