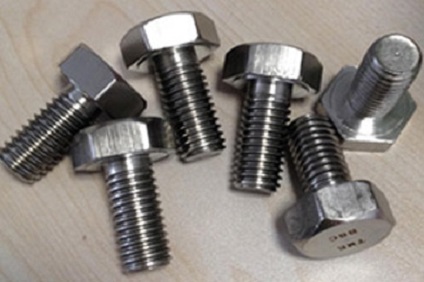

ASTM A193 B6X Bolts
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Manufacturer of ASME SA193 B6X Studs, Hex Bolts, Nuts and threaded rod in India.
Available ASTM A193 B6X Studs in Different Sizes and Dimensions, ASME SA193 B6X Bolts Manufacturer in India.
Detailed Information
Prashaant Steel & Alloys is used in the manufacture of B6X Bolts in various industries that have found applications. At Prashaant Steel & Alloys, we manufacture ASTM A193 B6X Bolts in a variety of sizes and dimensions that are suitable for the applications needed. The ASTM A193 B6X Bolts that we manufacture are made from our huge inventory using the highest quality of raw materials. ASME SA193 B6X Bolts are available in sizes ranging in thickness. At Prashaant Steel & Alloys, we aim to offer full customer satisfaction. Therefore, we also manufacture the B6X Bolts in custom size orders that suit our clients’ specifications and requirements. Prashaant Steel & Alloys has a clientele of many companies from all over the world and caters to both large and small sectors. Prashaant Steel & Alloys houses all the machinery and technology required for the development of high caliber ASTM A193 B6X Bolts at its state-of-the-art plant. At Prashaant Steel & Alloys, the customer service team ensures that all customers are helped with all their needs and demands. Due to the high strength they give, the ASTM A193 B6X Bolts from Prashaant Steel & Alloys are widely common.
ASTM A193 B6X Bolts are made in various types and in various sizes according to the different specifications and standards. The specification is ASTM A193 and the grade is B6X. The bolts vary in type such as heavy hex bolts, hex bolts, lag bolts, anchor bolts, flange bolts and so on. The ASTM A193 B6x Threaded Rod is another type of fastener that has no head.
This design is useful to insert the rod into narrow spaces where headed bolts cannot be driven into. The ASTM A193 Grade B6x Hex Bolt is used in heavy applications. The advantage of the hex bolts is that the hex head could be easily installed and uninstalled using heavy torque tools. The material has carbon, manganese, phosphorus, sulfur, silicon and 11% chromium in the composition. This composition provides average corrosion resistance and strength. The Sa 193 Gr B6x Bolts have 90ksi minimum tensile strength and 70ksi minimum yield strength with 16% elongation rate. The nuts can be cold forded, hot forged and machined. The B6x Bolt is strong and corrosion resistant so that it is used in different applications with high temperature and high pressure services as well. The A193 B6x Bolts are used in spiral welded tubes for burner pipes and flues, heat exchangers, pharmaceutical equipment, onshore and offshore oil drilling, natural gas and petroleum industrial applications.
ASTM A193 B6X Bolts Specification Chart:
Dimensions |
ASME B18.2.1, B18.3 |
Product Origin |
Made in India |
Threads Configuration |
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads |
Certification |
Dual Certified As per ASTM & ASME Codes |
Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Mandatory Requirements |
Free from Mercury & Radioactive Contamination |
Additional Requirements |
NACE MR0103 / MR0175 / ISO 15156 Compliance |
Sa 193 Gr B6x Bolts Chemical Composition Chart:
Element |
B6X |
Carbon |
0 – 0.15% |
Manganese |
0 – 1.00% |
Phosphorus, max |
0 – 0.040% |
Sulfur, max |
0 – 0.03% |
Silicon |
0 – 1.00% |
Chromium |
11.5 – 13.5% |
Nickel |
– |
Molybdenum |
– |
ASTM A193 Grade B6x Bolts Mechanical Characteristics:
Grade |
Diameter |
Tensile ksi, min |
Yield, ksi, min |
Elong, %, min |
RA % min |
HBW |
HRC |
B6 |
Up to 4, incl |
110 |
85 |
15 |
50 |
– |
– |
Astm A193 B6x Threaded Rod Dimension Chart:
NOMINAL SIZE (D) |
BODY DIAMETER |
HEAD THICKNESS ASTM A193 |
ACRO ASTM A193 THE FLATS |
ACROASTM A193 CORNERS |
||||
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
m10 |
10.00 |
9.78 |
6.63 |
6.17 |
17.00 |
15.73 |
18.48 |
17.77 |
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
m14 |
14.00 |
13.73 |
9.09 |
8.51 |
22.00 |
20.67 |
24.25 |
23.35 |
m16 |
16.00 |
15.73 |
10.32 |
9.68 |
24.00 |
23.67 |
27.71 |
26.75 |
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.95 |
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
m30 |
30.00 |
29.67 |
19.48 |
17.92 |
46.00 |
45.00 |
53.12 |
50.85 |
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
m56 |
56.00 |
55.26 |
36.2 |
33.80 |
85.00 |
82.20 |
98.15 |
93.71 |
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
95.00 |
91.80 |
109.70 |
104.65 |
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
Dimension of ASTM A193 Grade B6x Hex Bolt:
Diameter (D) |
Body Diameter (D) |
Across the Flats (F) |
Across the Corners © |
Head Height (H) |
Thread Lengths (T) |
|||||
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
< 6” |
> 6” |
|
1/2 |
0.515 |
0.482 |
0.875 |
0.85 |
1.01 |
0.969 |
0.364 |
0.302 |
1.25 |
1.5 |
5/8 |
0.642 |
0.605 |
1.062 |
1.031 |
1.227 |
1.175 |
0.444 |
0.378 |
1.5 |
1.75 |
3/4 |
0.768 |
0.729 |
1.25 |
1.212 |
1.443 |
1.383 |
0.524 |
0.455 |
1.75 |
2 |
7/8 |
0.895 |
0.852 |
1.438 |
1.394 |
1.66 |
1.589 |
0.604 |
0.531 |
2 |
2.25 |
1 |
1.022 |
0.976 |
1.625 |
1.575 |
1.876 |
1.796 |
0.7 |
0.591 |
2.25 |
2.5 |
1 1/8 |
1.149 |
1.098 |
1.812 |
1.756 |
2.093 |
2.002 |
0.78 |
0.658 |
2.5 |
2.75 |
1 1/4 |
1.277 |
1.223 |
2 |
1.938 |
2.309 |
2.209 |
0.876 |
0.749 |
2.75 |
3 |
1 3/8 |
1.404 |
1.345 |
2.188 |
2.119 |
2.526 |
2.416 |
0.94 |
0.81 |
3 |
3.25 |
1 1/2 |
1.531 |
1.47 |
2.375 |
2.3 |
2.742 |
2.622 |
1.036 |
0.902 |
3.25 |
3.5 |
1 3/4 |
1.785 |
1.716 |
2.75 |
2.662 |
3.175 |
3.035 |
1.196 |
1.054 |
3.75 |
4 |
2 |
2.039 |
1.964 |
3.125 |
3.025 |
3.608 |
3.449 |
1.388 |
1.175 |
4.25 |
4.5 |
2 1/4 |
2.305 |
2.214 |
3.5 |
3.388 |
4.041 |
3.862 |
1.548 |
1.327 |
4.75 |
5 |
2 1/2 |
2.559 |
2.461 |
3.875 |
3.75 |
4.474 |
4.275 |
1.708 |
1.479 |
5.25 |
5.5 |
2 3/4 |
2.827 |
2.711 |
4.25 |
4.112 |
4.907 |
4.688 |
1.869 |
1.632 |
5.75 |
6 |
3 |
3.081 |
2.961 |
4.625 |
4.475 |
5.34 |
5.102 |
2.06 |
1.815 |
6.25 |
6. |
