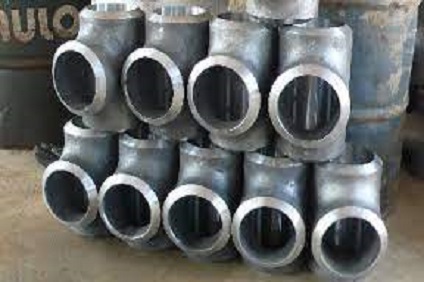

Gr WPHY-52 MSS SP-75 Fitting
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Check Buttweld MSS SP-75 Elbow Chemical Composition And MSS SP 75 Weld Fittings Mechanical Properties.
Manufacturer Of A860 MSS SP 75 Material In Mumbai, India, Specification Of MSS SP 75 Pipe Reducers, Check MSS SP 75 Tee Pressure Rating.
Detailed Information
Prashaant Steel & Alloys is well-known on the international market and is eager to include high-quality GR WPHY-52 MSS SP-75 Fittings. Prashaant Steel & Alloys is a producer, supplier, stockiest, and exporter of ASME B16.11 Fittings, and exports the material to global customers at reasonable prices. ASME B16.11 Fittings are made in line with established manufacturing practises, allowing for the most effective use of raw materials. We market ASME B16.11 Fittings in custom thicknesses and styles to suit the needs of our customers. The bars are made under the close guidance of a knowledgeable team with considerable expertise in the industry. We also allow the use of modern equipment and cutting-edge technology, allowing Prashaant Steel & Alloys to achieve better results. Many quality standards for raw materials are also used to achieve production. The role of the quality control department in ensuring product quality is assuring in providing commendable product continuity. A number of raw material quality requirements are also taken into account during processing. The Quality Control Department’s role in ensuring product quality is to achieve reliable, commendable outcomes.
This standard covers factory produced seamless as well as electric fusion-welded MSS SP-75 Fittings. The materials used to manufacture these fittings are usually carbon steel or low-alloy steel grades, depending on the application. Typically the butt-welding pipe fittings such as MSS SP 75 Tee are designed with the intention of being used in not only high pressure oil and gas transmission and distribution systems, but they are also used in other systems including compressor stations, pipelines, metering and regulating stations, as well as mains.
Based on their yield strength values, the MSS SP 75 Weld Fittings are categorized into 7 different WPHY classes i.e 42, 46, 52, 56,60, 65 and 70. The term WPHY is always associated with MSS SP 75 specified fitting. The term is split into 2 different parts where WP has been abbreviated as either wrought pipe or wrought plate, while HY is an abbreviation for high yield components for e.g. MSS SP 75 Pipe Reducers. The MSS SP 75 is a standard that specifies the chemical composition, A860 MSS SP 75 Material and tensile properties, dimensions, tolerances, ratings, heat treatment, notch toughness as well as manufacturing process and marking of quality butt welded pipe fittings for pipes that have a diameter of NPS 60 and smaller. Keeping in accordance with the MSS SP-75 standard, all fittings including the Buttweld MSS SP-75 Elbow manufactured are required to be designed in such a manner that they support the field hydrostatic pressure test at a certain pressure level.
MSS SP 75 Weld Fittings Specification:
Standard Specification : |
MSS SP-75 Fittings |
Rating Pressure: |
Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
Application: |
Nuclear Power Plant Natural Gas Industry Water Pipeline Industry Fabrication Industry Chemical Industry Oil And Gas Industry |
Coating Fitting Faces : |
Oil Black Paint, Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint, Yellow Transparent |
Check Sizes: |
(SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
Thickness: |
View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
Standard: |
JIS B2313, ANSI B16.9, MSS-SP-43 Type b, ANSI B16.28, JIS B2312, MSS-SP-43 Type A |
Dimensions Class: |
2000#, 3000#, 6000#, 9000# |
Fitting Machining Equipment: |
Bending machine, Electric bevelling machine, Pushing Machine, Press machine, Sand-blasting machine etc |
MSS SP 75 Pipe Reducers Pressure Rating:
MSS SP-75 Fittings Pressure Rating |
||||||||||||
NPS (inch) |
Pipe Sch. |
OD (inch) |
Wall Thick. (in) |
Temperature (oF) |
||||||||
100 |
200 |
300 |
400 |
500 |
600 |
|||||||
(Pressure Rating) |
||||||||||||
16700 |
16700 |
16700 |
15500 |
14400 |
13500 |
|||||||
1″ |
40 |
1.315 |
0.133 |
2205 |
2205 |
2205 |
2047 |
1902 |
1783 |
|||
80 |
1.315 |
0.179 |
3061 |
3061 |
3061 |
2841 |
2640 |
2475 |
||||
160 |
1.315 |
0.250 |
4493 |
4493 |
4493 |
4170 |
3874 |
3632 |
||||
1 1/2″ |
40 |
1.900 |
0.145 |
1629 |
1629 |
1629 |
1512 |
1404 |
1317 |
|||
80 |
1.900 |
0.200 |
2303 |
2303 |
2303 |
2138 |
1986 |
1862 |
||||
160 |
1.900 |
0.281 |
3362 |
3362 |
3362 |
3120 |
2899 |
2717 |
||||
2″ |
40 |
2.375 |
0.154 |
1371 |
1371 |
1371 |
1272 |
1182 |
1108 |
|||
80 |
2.375 |
0.218 |
1985 |
1985 |
1985 |
1843 |
1712 |
1605 |
||||
160 |
2.375 |
0.344 |
3283 |
3283 |
3283 |
3047 |
2831 |
2654 |
||||
3″ |
40 |
3.500 |
0.216 |
1301 |
1301 |
1301 |
1208 |
1122 |
1052 |
|||
80 |
3.500 |
0.300 |
1844 |
1844 |
1844 |
1712 |
1590 |
1491 |
||||
160 |
3.500 |
0.438 |
2787 |
2787 |
2787 |
2587 |
2403 |
2253 |
||||
4″ |
40 |
4.500 |
0.237 |
1102 |
1102 |
1102 |
1023 |
950 |
891 |
|||
80 |
4.500 |
0.337 |
1596 |
1596 |
1596 |
1482 |
1377 |
1291 |
||||
160 |
4.500 |
0.531 |
2611 |
2611 |
2611 |
2424 |
2552 |
2111 |
||||
5″ |
40 |
5.563 |
0.258 |
965 |
965 |
965 |
896 |
832 |
780 |
|||
80 |
5.563 |
0.375 |
1428 |
1428 |
1428 |
1325 |
1231 |
1154 |
||||
160 |
5.563 |
0.625 |
2474 |
2474 |
2474 |
2296 |
2133 |
2000 |
||||
6″ |
40 |
6.625 |
0.280 |
877 |
877 |
877 |
814 |
756 |
709 |
|||
80 |
6.625 |
0.432 |
1379 |
1379 |
1379 |
1280 |
1189 |
1115 |
||||
160 |
6.625 |
0.719 |
2382 |
2382 |
2382 |
2211 |
2054 |
1925 |
||||
8″ |
40 |
8.625 |
0.322 |
771 |
771 |
771 |
716 |
665 |
623 |
|||
80 |
8.625 |
0.500 |
1218 |
1218 |
1218 |
1131 |
1050 |
985 |
||||
160 |
8.625 |
0.906 |
2298 |
2298 |
2298 |
2133 |
1982 |
1858 |
||||
10″ |
40 |
10.750 |
0.365 |
699 |
699 |
699 |
649 |
603 |
565 |
|||
80 |
10.750 |
0.594 |
1159 |
1159 |
1159 |
1075 |
999 |
937 |
||||
160 |
10.750 |
1.125 |
2289 |
2289 |
2289 |
2124 |
1974 |
1850 |
MSS SP 75 Elbow Dimension:
ANSI b16.9 fittings Sizes Nominal |
ASME b16 9 Pipe Fitting Outside Diameter Y |
Wall Thickness T (Pipe Elbow Schedule) |
45 Deg Long Radius Elbow Centre to Face B |
45 Deg Short Radius Elbow Weight |
90 Deg Long Radius Elbow Centre to Face A |
90 Deg Long Radius Elbow Weight |
90 Deg Short Radius Elbow Centre to Face A |
90 Deg Short Radius Elbow Weight Chart |
||
mm |
in |
mm |
mm |
Schedule |
mm |
kg |
mm |
kg |
mm |
kg |
15 |
1/2” |
21.3 |
2.78 |
STD |
15.9 |
0.04 |
38.1 |
0.08 |
– |
– |
3.73 |
X.S |
15.9 |
0.05 |
38.1 |
0.10 |
– |
– |
|||
20 |
3/4” |
26.7 |
2.87 |
STD |
11.1 |
0.04 |
28.6 |
0.08 |
– |
– |
3.91 |
X.S |
11.1 |
0.05 |
28.6 |
0.11 |
– |
– |
|||
25 |
1” |
33.4 |
3.38 |
STD |
22.2 |
0.09 |
38.1 |
0.15 |
25.4 |
0.11 |
4.55 |
X.S |
22.2 |
0.11 |
38.1 |
0.19 |
25.4 |
0.14 |
|||
32 |
11/4” |
42.2 |
3.56 |
STD |
25.4 |
0.14 |
47.6 |
0.28 |
31.75 |
0.18 |
4.85 |
X.S |
25.4 |
0.2 |
47.6 |
0.39 |
31.75 |
0.24 |
|||
40 |
11/2” |
48.3 |
3.68 |
STD |
28.6 |
0.2 |
57.1 |
0.4 |
38.1 |
0.26 |
5.08 |
X.S |
28.6 |
0.25 |
57.1 |
0.5 |
38.1 |
0.35 |
|||
50 |
2” |
60.3 |
3.91 |
STD |
34.9 |
0.36 |
76.2 |
0.72 |
50.8 |
0.5 |
5.54 |
X.S |
34.9 |
0.5 |
76.2 |
1.0 |
50.8 |
0.68 |
|||
65 |
21/2” |
73.0 |
5.16 |
STD |
44.4 |
0.73 |
95.2 |
1.46 |
63.5 |
0.95 |
7.01 |
X.S |
44.4 |
0.91 |
95.2 |
1.82 |
63.5 |
1.27 |
|||
80 |
3” |
88.9 |
5.49 |
STD |
50.8 |
1.1 |
114.3 |
2.18 |
76.2 |
1.45 |
7.62 |
X.S |
50.8 |
1.45 |
114.3 |
2.86 |
76.2 |
1.95 |
|||
100 |
4” |
114.3 |
6.02 |
STD |
63.5 |
2.1 |
152.4 |
4.2 |
101.6 |
2.8 |
8.56 |
X.S |
63.5 |
2.9 |
152.4 |
5.7 |
101.6 |
3.9 |
|||
125 |
5” |
141.3 |
6.65 |
STD |
79.4 |
3.4 |
190.0 |
6.8 |
127.0 |
4.8 |
9.5 |
X.S |
79.4 |
5.0 |
190.0 |
10.0 |
127.0 |
6.5 |
|||
150 |
6” |
168.3 |
7.11 |
STD |
95.2 |
5.1 |
229.0 |
10.1 |
152.4 |
6.8 |
10.97 |
X.S |
95.2 |
7.7 |
229.0 |
15.3 |
152.4 |
10.2 |
|||
200 |
8” |
219.1 |
8.18 |
STD |
127.0 |
10.2 |
305.0 |
20.4 |
203.0 |
13.6 |
12.7 |
X.S |
127.0 |
15.5 |
305.0 |
30.9 |
203.0 |
20.9 |
|||
250 |
10” |
273.9 |
9.27 |
STD |
159.0 |
18.1 |
381.0 |
36.1 |
254.0 |
24.1 |
12.7 |
X.S |
159.0 |
24.4 |
381.0 |
48.8 |
254.0 |
32.5 |
|||
300 |
12” |
323.9 |
9.52 |
STD |
190.0 |
26.6 |
457.0 |
53.1 |
305.0 |
35.4 |
12.7 |
X.S |
190.0 |
35.0 |
457.0 |
70.0 |
305.0 |
46.7 |
|||
350 |
14” |
355.6 |
9.52 |
STD |
222.0 |
34.1 |
533.0 |
68.1 |
356.0 |
45.4 |
12.7 |
X.S |
222.0 |
45.0 |
533.0 |
90.0 |
356.0 |
60.0 |
|||
400 |
16” |
406.4 |
9.52 |
STD |
254.0 |
45.0 |
610.0 |
89.3 |
406.0 |
59.5 |
12.7 |
X.S |
254.0 |
59.0 |
610.0 |
118.0 |
406.0 |
78.7 |
|||
450 |
18” |
457.0 |
9.52 |
STD |
286.0 |
56.5 |
686.0 |
113.0 |
457.0 |
75.6 |
12.7 |
X.S |
286.0 |
75.0 |
686.0 |
150.0 |
457.0 |
100.0 |
|||
500 |
20” |
508.0 |
9.52 |
STD |
318.0 |
85.0 |
762.0 |
140.0 |
508.0 |
93.5 |
12.7 |
X.S |
318.0 |
112.5 |
762.0 |
186.0 |
508.0 |
124.0 |
|||
600 |
24” |
610.00 |
9.52 |
STD |
381.0 |
101.5 |
914.0 |
203.0 |
610.0 |
135.0 |
12.7 |
X.S |
381.0 |
134.5 |
914.0 |
269.0 |
610.0 |
179.0 |
