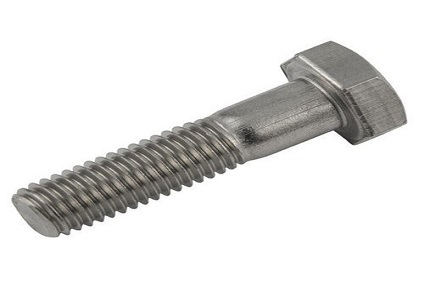

ASTM A193 Grade B7 Bolts
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
Check ASME SA 193 B7m Hex Bolts, Stud Bolt Material Dimensions. Also, get online ASTM A193 B7 Hex Bolts, A193 Gr. B7 Threaded Rod Weight Table, Buy A193-B7 Stud Bolts at the Best price.
Detailed Information
Prashaant Steel & Alloys is a well-known Grade B7 Bolts maker and retailer. We manufacture ASTM A193 Grade B7 Bolts with the best quality raw materials from our vast inventory. Prashaant Steel & Alloys produces Grade B7 Bolts of excellent quality and has carved out a niche for itself in the industry. Our Grade B7 Bolts are highly common and are used in a number of industries due to their high strength and reliability. Prashaant Steel & Alloys has a well-equipped production facility that can fill huge orders of ASTM A193 Grade B7 Bolts in a range of sizes and diameters. We manufacture Grade B7 Bolts and export them to all of the world’s big cities. We store our goods in suitable wooden boxes and ship them with all appropriate paperwork to prevent product degradation during shipping.
The larger fasteners have 75ksi minimum yield strength. There are different types such as the A193 Gr. B7 Threaded Rod which are used in various high pressure, high temperature applications. The material is in particular resistant to sulfide, hydrogen and chloride stress corrosion cracking. Due to the high resistance, the A193-B7 Stud Bolts are often used in sour gas service. The material is made up of carbon, manganese, phosphorus, sulfur, silicon, chromium and molybdenum in the composition. The ASTM A193 Gr B7 Bolts are used in chemical, acid production, food processing equipment and other sensitive and high corrosive applications. The ASTM A193 B7 Metric Bolts are made under metric dimensions, There are ASTM, ASME, AISI and other international standards governing the dimensions of the fasteners. The most produced A193 B7 Fasteners are the heavy hex hunts due to the high tensile strength values. These can also be applied in engines and equipment that are used under heavy corrosive applications.
ASTM A193 B7m Bolts are similar to the B7 bolts but the difference is the lower strength requirement. The dimensions range up to 4 inches for certain fastener types and go up to 7 inches for several other fastener types. The ASTM A193 B7 Hex Bolts have minimum tensile strength of 100ksi and minimum yield strength of 80 ksi.
Dimensional Chart of ASTM A193 B7 Heavy Hex Bolts:
|
Diameter (D) |
Body Diameter (D) |
Across the Flats (F) |
Across the Corners © |
Head Height (H) |
Thread Lengths (T) |
|||||
|
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
< 6” |
> 6” |
|
|
1/2 |
0.515 |
0.482 |
0.875 |
0.85 |
1.01 |
0.969 |
0.364 |
0.302 |
1.25 |
1.5 |
|
5/8 |
0.642 |
0.605 |
1.062 |
1.031 |
1.227 |
1.175 |
0.444 |
0.378 |
1.5 |
1.75 |
|
3/4 |
0.768 |
0.729 |
1.25 |
1.212 |
1.443 |
1.383 |
0.524 |
0.455 |
1.75 |
2 |
|
7/8 |
0.895 |
0.852 |
1.438 |
1.394 |
1.66 |
1.589 |
0.604 |
0.531 |
2 |
2.25 |
|
1 |
1.022 |
0.976 |
1.625 |
1.575 |
1.876 |
1.796 |
0.7 |
0.591 |
2.25 |
2.5 |
|
1 1/8 |
1.149 |
1.098 |
1.812 |
1.756 |
2.093 |
2.002 |
0.78 |
0.658 |
2.5 |
2.75 |
|
1 1/4 |
1.277 |
1.223 |
2 |
1.938 |
2.309 |
2.209 |
0.876 |
0.749 |
2.75 |
3 |
|
1 3/8 |
1.404 |
1.345 |
2.188 |
2.119 |
2.526 |
2.416 |
0.94 |
0.81 |
3 |
3.25 |
|
1 1/2 |
1.531 |
1.47 |
2.375 |
2.3 |
2.742 |
2.622 |
1.036 |
0.902 |
3.25 |
3.5 |
|
1 3/4 |
1.785 |
1.716 |
2.75 |
2.662 |
3.175 |
3.035 |
1.196 |
1.054 |
3.75 |
4 |
|
2 |
2.039 |
1.964 |
3.125 |
3.025 |
3.608 |
3.449 |
1.388 |
1.175 |
4.25 |
4.5 |
|
2 1/4 |
2.305 |
2.214 |
3.5 |
3.388 |
4.041 |
3.862 |
1.548 |
1.327 |
4.75 |
5 |
|
2 1/2 |
2.559 |
2.461 |
3.875 |
3.75 |
4.474 |
4.275 |
1.708 |
1.479 |
5.25 |
5.5 |
|
2 3/4 |
2.827 |
2.711 |
4.25 |
4.112 |
4.907 |
4.688 |
1.869 |
1.632 |
5.75 |
6 |
|
3 |
3.081 |
2.961 |
4.625 |
4.475 |
5.34 |
5.102 |
2.06 |
1.815 |
6.25 |
6.5 |
ASTM A193 B7 Bolts Mechanical Behaviour:
|
Grade |
Size |
Tensile ksi, min |
Yield, ksi, min |
Elong, %, min |
RA % min |
HBW |
HRC |
|
B7 |
Up to 2-1/2 |
125 |
105 |
16 |
50 |
321 max |
35 max |
|
2-5/8 – 4 |
115 |
95 |
16 |
50 |
|||
|
4-1/8 – 7 |
100 |
75 |
18 |
50 |
Most Selling types of ASTM A193 b7 Stud Bolts:
|
ASTM A193 Grade B7 Stud Bolt |
Stainless Steel B7 Threaded Rod |
|
ASTM A 193 B7 Stud Bolt |
ASTM A 193 Eye Bolt |
|
Stainless Steel B7 Studs |
ASTM A 193 B7 Lag Bolt |
|
ASTM A193 B7 Stud Bolts |
B7 Grub Screw |
|
ASTM A193 J Bolt |
ASTM A193 B7 Anchor Bolt |
|
B7 Hanger Bolt |
A193 B7 Hex Nut |
|
SS B7 Plow Bolt |
ASTM A193 B7 Stud Bolts |
|
ASTM A193 stud bolts |
SA193 Nuts |
|
ASTM A 193 B7 Studs |
B7 Shoulder Bolt |
|
B7 Stainless Steel Stud bolts |
Stainless Steel B7 Draw Bolt |
|
ASTM A 193 Tie Rod |
SS B7 Step Bolt |
|
ASTM A 193 B7 Heavy Hex Bolts |
ISO Approved ASTM A193 U Bolts |
ASME SA193 B7 Heavy Hex Bolt Dimension:
|
Diameter (D) |
Body Diameter (D) |
Across the Flats (F) |
Across the Corners © |
Head Height (H) |
Thread Lengths (T) |
|||||
|
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
< 6” |
> 6” |
|
|
1/2 |
0.515 |
0.482 |
0.875 |
0.85 |
1.01 |
0.969 |
0.364 |
0.302 |
1.25 |
1.5 |
|
5/8 |
0.642 |
0.605 |
1.062 |
1.031 |
1.227 |
1.175 |
0.444 |
0.378 |
1.5 |
1.75 |
|
3/4 |
0.768 |
0.729 |
1.25 |
1.212 |
1.443 |
1.383 |
0.524 |
0.455 |
1.75 |
2 |
|
7/8 |
0.895 |
0.852 |
1.438 |
1.394 |
1.66 |
1.589 |
0.604 |
0.531 |
2 |
2.25 |
|
1 |
1.022 |
0.976 |
1.625 |
1.575 |
1.876 |
1.796 |
0.7 |
0.591 |
2.25 |
2.5 |
|
1 1/8 |
1.149 |
1.098 |
1.812 |
1.756 |
2.093 |
2.002 |
0.78 |
0.658 |
2.5 |
2.75 |
|
1 1/4 |
1.277 |
1.223 |
2 |
1.938 |
2.309 |
2.209 |
0.876 |
0.749 |
2.75 |
3 |
|
1 3/8 |
1.404 |
1.345 |
2.188 |
2.119 |
2.526 |
2.416 |
0.94 |
0.81 |
3 |
3.25 |
|
1 1/2 |
1.531 |
1.47 |
2.375 |
2.3 |
2.742 |
2.622 |
1.036 |
0.902 |
3.25 |
3.5 |
|
1 3/4 |
1.785 |
1.716 |
2.75 |
2.662 |
3.175 |
3.035 |
1.196 |
1.054 |
3.75 |
4 |
|
2 |
2.039 |
1.964 |
3.125 |
3.025 |
3.608 |
3.449 |
1.388 |
1.175 |
4.25 |
4.5 |
|
2 1/4 |
2.305 |
2.214 |
3.5 |
3.388 |
4.041 |
3.862 |
1.548 |
1.327 |
4.75 |
5 |
|
2 1/2 |
2.559 |
2.461 |
3.875 |
3.75 |
4.474 |
4.275 |
1.708 |
1.479 |
5.25 |
5.5 |
|
2 3/4 |
2.827 |
2.711 |
4.25 |
4.112 |
4.907 |
4.688 |
1.869 |
1.632 |
5.75 |
6 |
|
3 |
3.081 |
2.961 |
4.625 |
4.475 |
5.34 |
5.102 |
2.06 |
1.815 |
6.25 |
6.5 |
Manufacturing Standards of SA193 B7 Bolts:
- ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
- ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
- ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
- ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
- ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
- ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
