ASTM F467 Nuts
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
Detailed Information

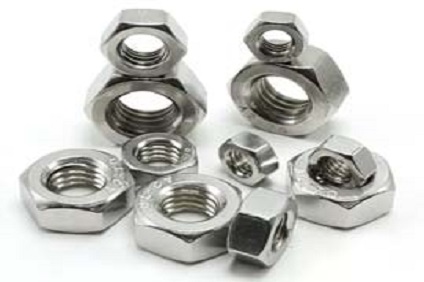

Prashaant Steel & Alloys is a well-known ASTM F467 Nuts maker and retailer. We manufacture ASTM F467 Nuts with the best quality raw materials from our vast inventory. Prashaant Steel & Alloys produces ASTM F467 Nuts of excellent quality and has carved out a niche for itself in the industry. Our ASTM F467 Nuts are highly common and are used in a number of industries due to their high strength and reliability. Prashaant Steel & Alloys has a well-equipped production facility that can fill huge orders of ASTM F467 Nuts in a range of sizes and diameters. We manufacture ASTM F467 Nuts and export them to all of the world’s big cities. We store our goods in suitable wooden boxes and ship them with all appropriate paperwork to prevent product degradation during shipping.
ASTM F467 Nuts are non-ferrous commercial wrought nuts that are used in high tensile and high stress applications. The material has different alloy grades such as alloy 260, 464, 630 and 655 depending on the chemical composition. the ASTM F467m Nuts have aluminum copper, nickel, silicon, zinc, lead, iron and manganese in their composition. Iron can be present but in less than 4% and the amount of iron varies with the grade of alloy. The ASTM F467 Grade 5 Nuts have proof stresses varying with the grades starting from 50ksi to 130ksi.
Specification of ASTM F467 Nuts:
|
Standards |
Designation |
|
ASTM |
F467 |
|
Astm F467 Nuts Delivery time |
custom product will according to special requirement, Regular product is about 7-15 days |
|
ASTM F467 Nuts Coatings |
Cadmium, Black Oxide, Teflon, Galvanized, Zinc, Xylan, Others Upon Request |
|
Astm F467 Nuts Dimensions |
ASME B18.3, B18.2.1 |
|
Astm F467 Nuts Certification |
Dual Certified As per ASME & ASTM Codes |
|
Additional Certifications |
Merkblatt AD 2000 W2 Certified,PED 97/23/EC Certified |
|
Mandatory Requirements |
Free from Radioactive & Mercury Contamination |
|
Additional Requirements |
NACE MR0175 / MR0103 /ISO 15156 Compliance |
Size Chart of ASTM F467 Grade 5 Nuts:
|
Nut Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|
Hex Nut |
Jam Nut |
Nylock Nut |
||
|
2 |
4 |
1.6 |
1.2 |
– |
|
2.5 |
5 |
2 |
1.6 |
– |
|
3 |
5.5 |
2.4 |
1.8 |
4 |
|
4 |
7 |
3.2 |
2.2 |
5 |
|
5 |
8 |
4 |
2.7 |
5 |
|
6 |
10 |
5 |
3.2 |
6 |
|
7 |
11 |
5.5 |
3.5 |
– |
|
8 |
13 |
6.5 |
4 |
8 |
|
10 |
17 |
8 |
5 |
10 |
|
12 |
19 |
10 |
6 |
12 |
|
14 |
22 |
11 |
7 |
14 |
|
16 |
24 |
13 |
8 |
16 |
|
18 |
27 |
15 |
9 |
18.5 |
|
20 |
30 |
16 |
10 |
20 |
|
* This is the diameter across the flats. It is also the size of wrench to use. |
||||
ASTM F467 Hex Nuts Dimension Standards:
|
Nominal Size or Basic Major Thread Diameter |
F |
G |
H |
||||||
|
Width Across Flats |
Width Across Corners |
Thickness |
|||||||
|
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
||
|
1/4 |
.2500 |
7/16 |
.438 |
.428 |
.505 |
.488 |
7/32 |
.226 |
.212 |
|
5/16 |
.3125 |
1/2 |
.500 |
.489 |
.577 |
.557 |
17/64 |
.273 |
.258 |
|
3/8 |
.3750 |
9/16 |
.562 |
.551 |
.650 |
.628 |
21/64 |
.337 |
.479 |
|
7/16 |
.4375 |
11/16 |
.688 |
.675 |
.794 |
.768 |
3/8 |
.385 |
.365 |
|
1/2 |
.5000 |
3/4 |
.750 |
.736 |
.866 |
.840 |
7/16 |
.448 |
.427 |
|
9/16 |
.5625 |
7/8 |
.875 |
.861 |
1.010 |
.982 |
31/64 |
.496 |
.473 |
|
5/8 |
.6250 |
15/16 |
.938 |
.922 |
1.083 |
1.051 |
35/64 |
.559 |
.535 |
|
3/4 |
.7500 |
1-1/8 |
1.125 |
1.088 |
1.299 |
1.240 |
41/64 |
.665 |
.617 |
|
7/8 |
.8750 |
1-5/16 |
1.312 |
1.269 |
1.516 |
1.447 |
3/4 |
.776 |
.724 |
|
1 |
1.0000 |
1-1/2 |
1.500 |
1.450 |
1.732 |
1.653 |
55/64 |
.887 |
.831 |
|
1-1/8 |
1.1250 |
1-11/16 |
1.688 |
1.631 |
1.949 |
1.859 |
31/32 |
.999 |
.939 |
|
1-3/8 |
1.3750 |
2-1/16 |
2.062 |
1.994 |
2.382 |
2.273 |
1-11/64 |
1.206 |
1.138 |
|
1-1/2 |
1.500 |
2-1/4 |
2.250 |
2.175 |
2.598 |
2.480 |
1-9/32 |
1.ASTM A194 GR. 8 |
1.245 |
|
1-5/8 |
1.6250 |
2-7/16 |
2.438 |
2.356 |
2.815 |
2.686 |
1-25/64 |
1.429 |
1.353 |
|
1-3/4 |
1.7500 |
2-5/8 |
2.625 |
2.538 |
3.031 |
2.893 |
1-1/2 |
1.540 |
1.460 |
|
2 |
2.0000 |
3 |
3.000 |
2.900 |
3.464 |
3.306 |
1-23/32 |
1.763 |
1.675 |
|
2-1/4 |
2.2500 |
3-3/8 |
3.375 |
3.263 |
3.897 |
3.719 |
1-15/16 |
1.986 |
1.890 |
|
2-1/2 |
2.5000 |
3-3/4 |
3.750 |
3.625 |
4.330 |
4.133 |
2-5/32 |
2.209 |
2.105 |
|
2-3/4 |
2.7500 |
4-1/8 |
4.125 |
3.988 |
4.763 |
4.546 |
2-3/8 |
2.431 |
2.319 |
ASTM F467M Heavy Hex nuts Dimension Chart:
|
Nominal Size or Basic Major Thread Diameter |
F |
G |
H |
||||||
|
Width Across Flats |
Width Across Corners |
Thickness |
|||||||
|
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
||
|
1/4 |
.2500 |
1/2 |
.500 |
.488 |
.577 |
.556 |
15/64 |
.250 |
.218 |
|
5/16 |
.3125 |
9/16 |
.562 |
.546 |
.650 |
.622 |
19/64 |
.314 |
.280 |
|
3/8 |
.3750 |
11/16 |
.688 |
.669 |
.794 |
.763 |
23/64 |
.377 |
.341 |
|
7/16 |
.4375 |
3/4 |
.750 |
.728 |
.866 |
.830 |
27/64 |
.441 |
.403 |
|
1/2 |
.5000 |
7/8 |
.875 |
.850 |
1.010 |
.969 |
31/64 |
.504 |
.464 |
|
9/16 |
.5625 |
15/16 |
.938 |
.909 |
1.083 |
1.037 |
35/64 |
.568 |
.526 |
|
5/8 |
.6250 |
1-1/16 |
1.062 |
1.031 |
1.227 |
1.175 |
39/64 |
.631 |
.587 |
|
3/4 |
.7500 |
1-1/4 |
1.250 |
1.212 |
1.443 |
1.382 |
47/64 |
.758 |
.710 |
|
7/8 |
.8750 |
1-7/16 |
1.438 |
1.394 |
1.660 |
1.589 |
55/64 |
.885 |
.833 |
|
1 |
1.0000 |
1-5/8 |
1.325 |
1.575 |
1.876 |
1.796 |
63/64 |
1.012 |
.956 |
|
1-1/8 |
1.1250 |
1-13/16 |
1.812 |
1.756 |
2.093 |
2.002 |
1-7/64 |
1.139 |
1.079 |
|
1-1/4 |
1.2500 |
2 |
2.000 |
1.938 |
2.309 |
2.209 |
1-7/32 |
1.251 |
1.187 |
|
1-3/8 |
1.3750 |
2-3/16 |
2.188 |
2.119 |
2.526 |
2.416 |
1-11/32 |
1.378 |
1.460 |
|
1-1/2 |
1.5000 |
2-3/8 |
2.375 |
2.300 |
2.742 |
2.622 |
1-15/32 |
1.505 |
1.433 |
|
1-5/8 |
1.6250 |
2-9/16 |
2.562 |
2.481 |
2.959 |
2.828 |
1-19/32 |
1.632 |
1.556 |
|
1-3/4 |
1.7500 |
2-3/4 |
2.750 |
2.662 |
3.175 |
3.035 |
1-23/32 |
1.759 |
1.679 |
|
2 |
2.0000 |
3-1/8 |
3.125 |
3.025 |
3.608 |
3.449 |
1-31/32 |
2.013 |
1.925 |
|
2-1/4 |
2.2500 |
3-1/2 |
3.500 |
3.388 |
4.041 |
3.862 |
2-13/64 |
2.251 |
2.155 |
|
2-1/2 |
2.5000 |
3-7/8 |
3.875 |
3.750 |
4.474 |
4.275 |
2-29/64 |
2.505 |
2.401 |
|
2-3/4 |
2.7500 |
4-1/4 |
4.250 |
4.112 |
4.907 |
4.688 |
2-45/64 |
2.759 |
2.647 |
|
3 |
3.0000 |
4-5/8 |
4.625 |
4.475 |
5.340 |
5.102 |
2-61/64 |
3.013 |
2.893 |
|
3-1/4 |
3.2500 |
5 |
5.000 |
4.838 |
5.774 |
5.515 |
3-3/16 |
3.252 |
3.124 |
|
3-1/2 |
3.5000 |
5-3/8 |
5.375 |
5.200 |
6.207 |
5.928 |
3-7/16 |
3.506 |
3.370 |
|
3-3/4 |
3.7500 |
5-3/4 |
5.750 |
5.562 |
6.640 |
6.341 |
3-11/16 |
3.670 |
3.616 |
|
4 |
4.0000 |
6-1/8 |
6.125 |
5.925 |
7.073 |
6.755 |
3-15/16 |
4.014 |
3.862 |
ASME SF467 Dome Nuts Chemical Resistance Guide:
|
UNS Designation |
Alloy |
General Name |
Aluminum |
Copper, min |
Iron, max |
Manganese, max |
Nickel, max |
Phosphorus |
Silicon |
Zinc, maxA |
Lead, max |
Tin |
Arsenic, max |
|
C11000 |
110 |
ETP Copper |
— |
99.9 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
|
C26000 |
260 |
Brass |
— |
68.5 – 71.5 |
0.05 |
— |
— |
— |
— |
balance |
0.07 |
— |
— |
|
C27000 |
270 |
Brass |
— |
63.0 – 68.5 |
0.07 |
— |
— |
— |
— |
balance |
0.10 |
— |
— |
|
C46200 |
462 |
Naval Brass |
— |
62.0 – 65.0 |
0.10 |
— |
— |
— |
— |
balance |
0.20 |
0.50 – 1.00 |
— |
|
C46400 |
464 |
Naval Brass |
— |
59.0 – 62.0 |
0.10 |
— |
— |
— |
— |
balance |
0.20 |
0.50 – 1.00 |
— |
|
C51000 |
510 |
Phosphor Bronze |
— |
balanceA |
0.10 |
— |
— |
0.03 – 0.35 |
— |
0.30 |
0.05 |
4.20 – 5.80 |
— |
|
C61300 |
613 |
Aluminum Bronze |
6.0 – 7.5 |
B |
2.0 – 3.0 |
0.10 |
0.15C |
0.015 |
0.10 |
0.05 |
0.01 |
0.20 – 0.50 |
— |
|
C61400 |
614 |
Aluminum Bronze |
6.0 – 8.0 |
88.0D |
1.5 – 3.5 |
1.00 |
— |
— |
— |
— |
— |
— |
— |
|
C63000 |
630 |
Aluminum Bronze |
9.0 – 11.0 |
78.0D |
2.0 – 4.0 |
1.50 |
4.0 – 5.5 |
— |
0.25 max |
— |
— |
0.20 max |
— |
|
C64200 |
642 |
Aluminum Silicon Bronze |
6.3 – 7.6 |
88.65D |
0.30 |
0.10 |
0.25 |
1.50 – 2.20E |
0.50 |
0.05 |
0.20 max |
0.15 |
|
|
C65100 |
651 |
Silicon Bronze |
— |
96.0D |
0.80 |
0.70 |
— |
— |
0.8 – 2.0 |
1.50 |
0.05 |
— |
— |
|
C65500 |
655 |
Silicon Bronze |
— |
94.8D |
0.80 |
1.50 |
0.60 |
— |
2.8 – 3.8 |
1.50 |
0.05 |
— |
— |
|
C66100 |
661 |
Silicon Bronze |
0.25 max |
94.0D |
0.25 |
1.50 |
— |
— |
2.8 – 3.5 |
1.50 |
0.20 – 0.80 |
— |
— |
|
C67500 |
675 |
Manganese Bronze |
— |
57.0 – 60.0 |
0.8 – 2.0 |
0.05 – 0.50 |
— |
— |
— |
balance |
0.20 |
0.50 – 1.50 |
— |
|
C71000 |
710 |
Cupro Nickel |
— |
74.0D |
0.60 |
1.00 |
19.0 – 23.0C |
— |
1.00 |
0.05 |
— |
— |
|
|
C71500 |
715 |
Cupro Nickel |
— |
65.0D |
0.40 – 0.70 |
1.00 |
29.0 – 33.0C |
— |
— |
1.00 |
0.05 |
— |
— |
Mechanical Analysis of ASTM F467 Wing Nuts:
|
Alloy |
Mechanical Property Marking |
Nominal Thread Diameter, inch |
HardnessA |
Proof Stress, min, ksi |
|
Copper |
||||
|
Cu 110 |
F 467A |
all |
65 HRF |
30 |
|
Cu 260 |
F 467AB |
all |
55 HRF |
60 |
|
Cu 270 |
F 467B |
all |
55 HRF |
60 |
|
Cu 462 |
F 467C |
all |
65 HRB |
50 |
|
Cu 464 |
F 467D |
all |
55 HRB |
50 |
|
Cu 510 |
F 467E |
all |
60 HRB |
60 |
|
Cu 613 |
F 467F |
all |
70 HRB |
80 |
|
Cu 614 |
F 467G |
all |
70 HRB |
75 |
|
Cu 630 |
F 467H |
all |
85 HRB |
100 |
|
Cu 642 |
F 467J |
all |
75 HRB |
75 |
|
Cu 651 |
F 467K |
all |
75 HRB |
70 |
|
Cu 655 |
F 467L |
all |
60 HRB |
50 |
|
Cu 661 |
F 467M |
all |
75 HRB |
70 |
|
Cu 675 |
F 467N |
all |
60 HRB |
55 |
|
Cu 710 |
F 467P |
all |
50 HRB |
45 |
|
Cu 715 |
F 467R |
all |
60 HRB |
55 |
|
Nickel Alloys |
||||
|
Ni 59 Grade 1 |
F467FN |
all |
21 HRC |
120 |
|
Ni 59 Grade 2 |
F467GN |
all |
23 HRC |
135 |
|
Ni 59 Grade 3 |
F467HN |
all |
25 HRC |
160 |
|
Ni 59 Grade 4 |
F467JN |
all |
80 HRB |
100 |
|
NI 335 |
F 467S |
all |
20 HRC |
115 |
|
Ni 276 |
F 467T |
all |
20 HRC |
110 |
|
Ni 400 |
F 467U |
all |
75 HRB |
80 |
|
Ni 405 |
F 467V |
all |
60 HRB |
70 |
|
Ni 500 |
F 467W |
all |
24 HRC |
130 |
|
Ni 625 |
F 467AC |
all |
85 HRB – 35 HRC |
60 |
|
Ni 686 Grade 1 |
F 467BN |
all |
21 HRC |
120 |
|
Ni 686 Grade 2 |
F 467CN |
all |
23 HRC |
135 |
|
Ni 686 Grade 3 |
F 467DN |
all |
25 HRC |
160 |
|
Ni 686 Grade 4 |
F 467EN |
all |
65 HRB – 25 HRC |
100 |
|
Aluminum |
||||
|
Al 2024 – T4B |
F 467X |
all |
70 HRB |
55 |
|
Al 6061 – T6 |
F 467Y |
all |
40 HRB |
40 |
|
Al 6262 – T9 |
F 467Z |
all |
60 HRB |
52 |
|
Titanium Alloys |
||||
|
Ti 1 |
F 467AT |
all |
140 HV |
40 |
|
Ti 2 |
F 467BT |
all |
150 HV |
55 |
|
Ti 4 |
F 467CT |
all |
200 HV |
85 |
|
Ti 5 |
F 467DT |
all |
30 HRC |
135 |
|
Ti 7 |
F 467ET |
all |
160 HV |
55 |
|
Ti 19 |
F 467FT |
all |
24 HRC |
120 |
|
Ti 23 |
F 467GT |
all |
25 HRC |
125 |
|
Ti-5-1-1-1 |
F 467AHT |
all |
24 HRC |
105 |
ASTM F467 Metric Nuts Equivalent Material:
|
Alloy Group |
Alloy Designation |
Alloy Type |
|
1 |
303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se |
Austenitic |
|
2 |
316, 316L |
Austenitic |
|
3 |
321, 347 |
Austenitic |
|
4 |
430, 430F |
Ferritic |
|
5 |
410, 416, 416Se |
Martensitic |
|
6 |
431 |
Martensitic |
|
7 |
630 (17-4) |
Precipitation Hardening |
