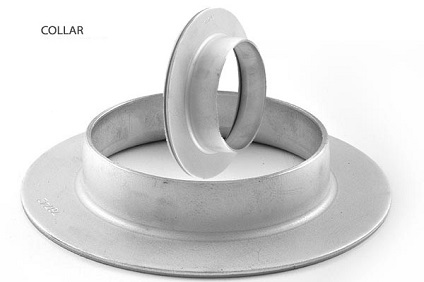

ASME B16.9 Collar Pipe Fittings

Manufacture Customized ANSI/ASME B16.9 Butt Weld Collar Per Customers’ Specifications.

ASME B16.9 Collar Pipe Fittings Suppliers & Exporters in Mumbai, India, Manufacturer of ASME B16.9 Butt weld Collar, Carbon steel collar in Mumbai, India, Stainless steel collar fitting Price in India.

Detailed Information

Prashaant Steel & Alloys is an outstanding ASME B16.9 Collar Pipe Fittings fabricator and manufacturer. The ASME B16.9 Collar Pipe Fittings are one of the most common forms of Forged fittings used in the industries. These ASME B16.9 Collar Pipe Fittings are used in applications in different industries because of the special features they give. At Prashaant Steel & Alloys, we are engaged in the development of the ASME B16.9 Collar Pipe Fittings which provide excellent stability and precision in dimension. Our state-of-the-art manufacturing facility helps us to manufacture the ASME B16.9 Collar Pipe Fittings in different sizes and diameters. The ASME B16.9 Collar Pipe Fittings that we manufacture in different corrosive media give exceptional resistivity to corrosion. Prashaant Steel & Alloys is capable of delivering the shortest lead time to bulk orders of ASME B16.9 Collar Pipe Fittings. Prashaant Steel & Alloys houses an enormous inventory that is filled with only the top-notch resources that allow us to provide a wide range of ASME B16.9 Collar Pipe Fittings. We do carry out many checks on our goods to guarantee the consistency of the goods.

ASME B16.9 Butt Weld Collar Specification:

Standards:

ANSI – B 16.9

ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’

API 590-605

ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”

ASME B16.25 – ‘Buttwelding Ends’

ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’

MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’

Schedule:

Sch 5 TO Sch XXS.

Sizes:

1/2” TO 36”

(SEAMLESS UPTO 24”)

(WELDED 8” TO 36” )

Materials:

Monel, Nickel, Inconel, Hastelloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30

Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Type:

Butt Weld (BW)

Thickness:

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS etc.

Dimension:

ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

ASME B16.9 Butt Weld Collar Dimensions:

COLLARS for ANSI 150 flanges

inches

ND

mm

Diameter

of lap

Height

Radius of

fillet

D

G

h

R

1/2

15

21,34

34,92

5

3

3/4

20

26,67

42,86

6

3

1

25

33,40

50,80

8

3

1 1/4

32

42,16

63,50

8

5

1 1/2

40

48,26

73,00

10

6

2

50

60,32

92,10

10

8

2 1/2

65

73,02

104,80

12

8

3

80

88,90

127,00

12

9

3 1/2

90

101,60

139,70

12

9

4

100

114,30

157,20

14

11

5

125

141,30

185,70

16

11

6

150

168,27

215,90

16

12

8

200

219,07

269,80

18

12

10

250

273,05

323,80

20

12

12

300

323,85

381,00

20

12

14

350

355,60

412,70

25

12

16

400

406,40

469,90

25

12

18

450

457,20

533,40

25

12

20

500

508,00

584,20

25

12

22

550

558,80

641,30

25

12

24

600

609,60

692,10

25

12

Dimension in mm.

The values of radius “R” and height “h” are indicative

Collars – Ansi 16.9 Tolerances:

DIMENSIONAL TOLERANCES – BORDI D’APPOGGIO

For all fittings

Nominal Pipe Size (NPS)

Outside Ø

at Bevel

Inside Ø

at End

Wall Thickness

t / t1

O.D. of

Lap G

1/2 a 2 1/2

1

0,8

Not

+0 -1

3 a 3 1/2

1

1,6

less

+0 -1

4

+2 -1

1,6

than

+0 -1

5 a 6

+3 -1

1,6

87,50%

+0 -1

8

2

1,6

of nominal

+0 -1

10

+4 -3

3,2

thickness

+0 -2

12 a 18

+4 -3

3,2



+0 -2

20 a 24

+6 -5

4,8



+0 -2

26 a 30

+7 -5

4,8





32 a 48

+7 -5

4,8















ASME B16.9 Collars Weights:

WEIGHTS OF FITTINGS

NPS

inches

COLLARS

Sch.

5S

Sch.

10S

Sch.

40S

Sch.

80S

1/2

0.01

0.02

0.03

0.04

3/4

0.03

0.03

0.04

0.06

1

0.04

0.07

0.08

0.11

1 1/4

0.05

0.08

0.11

0.15

1 1/2

0.06

0.11

0.15

0.20

2

0.08

0.14

0.20

0.28

2 1/2

0.15

0.22

0.37

0.50

3

0.19

0.27

0.50

0.70

4

0.25

0.35

0.70

1.00

5

0.50

0.65

1.25

1.80

6

0.65

0.80

1.70

2.60

8

0.95

1.30

2.80

4.30

10

1.50

1.80

4.00

5.50

12

2.00

2.40

5.00

6.60

14

2.50

2.95

5.90

7.90

16

3.60

4.00

8.10

10.8

18

4.00

4.60

9.20

12.3

20

5.10

6.00

10.2

13.7

24

8.15

9.30

14.0

18.6

Approximate weights in kg, density 8 kg/dm3

Collar fitting Types
A403 Grade WP316 SS welding collar

A403 Grade WP316 SS
welding collar

Alloy Steel Collar fitting<br />

Alloy Steel Collar fitting

ANSI B16.9 Welded collar Sch 80
Carbon Steel collar cap</p>
<p>

Carbon Steel collar cap

ASTM A234 WP5 pipe collar

ASTM A234 WP5
pipe collar

ASME B16.9 collar elbow sch 40
Stainless Steel collar joint

Stainless Steel collar
joint

ASME B16.9 Collar SCH 10

ASME B16.9 Collar
SCH 10

A234 Gr WPB CS pipe collar clamp
Buttweld steel welded collar

Buttweld steel welded
collar

ASME B16.9 SS collar pipe fittings</p>
<p>

ASME B16.9 SS collar
pipe fittings

A403 Gr WP304 Seamless Collar</p>
<p>
Material of ASME B16.9 Collar

Prestige quality Collar pipe fittings manufacturers in India offer these Carbon Steel Collar pipe fittings in DIN, EN, BS, ISO, JIS or ANSI standard.

Stainless Steel Collar pipe fittings
  • ASTM A403 WP304 Collar pipe fittings
  • ASTM A403 WP304L collar fitting
  • ASTM A403 WP316 Buttweld Collar
  • ASTM A403 WP316L Collar pipe fittings
  • ASTM A403 WP317 collar fitting
  • ASTM A403 WP317L Collar pipe fittings
  • ASTM A403 WP321 Collar pipe fittings
  • ASTM A403 WP321H Welded collar
  • ASTM A403 WP347 Collar
  • ASTM A403 WP347H welding collar
Alloy Steel Collar pipe fittings
  • ASTM A234 WP5 Welded collar
  • ASTM A234 WP9 Buttweld Collar
  • ASTM A234 WP11 Collar pipe fittings
  • ASTM A234 WP22 collar fitting
  • ASTM A234 WP91 Collar pipe fittings
Carbon Steel Collar
  • ASTM A234 WPB Collar pipe fittings
  • ASTM A420 WPL6 Collar pipe fittings
  • WPHY 42 Collar
  • WPHY 52 Welded collar
  • WPHY 56 Collar pipe fittings
  • WPHY 60 Buttweld Collar
  • WPHY 65 welding collar
  • WPHY 70 collar fitting
Inconel Welded collar
  • Inconel 600 Buttweld Collar
  • Inconel 601 Collar pipe fittings
  • Inconel 625 welding collar
  • Inconel 718 Collar pipe fittings
  • Inconel x750 Collar pipe fittings
Copper Buttweld Collar T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Hastelloy collar fitting Hastelloy C276 (UNS N10276) Collar, C22 (UNS N06022) Collar pipe fittings, C4 Collar, C2000 Welded collar, B2 Buttweld Collar, B3 Collar pipe fittings, X welding collar
Duplex collar fitting S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Collar S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Monel collar fitting Monel 400 (UNS No. N04400) Collar, Monel 500 (UNS No. N05500) Welded collar
Copper Nickel Collar pipe fittings Copper Nickel 90/10 (C70600 ) Collar pipe fittings, Cupro Nickel 70/30 (C71500) Collar pipe fittings, UNS C71640 Buttweld Collar
Brass welding collar 3602 / 2604 / H59 / H62 / etc.
Alloy 20 Buttweld Collar Carpenter® 20 Alloy collar fitting, Alloy 20Cb-3 Collar pipe fittings
Aluminium Welded collar 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Collar pipe fittings Nickel 200 Collar, Nickel 201 welding collar
Incoloy Buttweld Collar Incoloy 800 welding collar, Incoloy 800H Collar, Incoloy 800HT (UNS N08800) Welded collar, Incoloy 825 (UNS N08825) Collar pipe fittings
254 Smo Collar pipe fittings SMO 254/6Mo Buttweld Collar, UNS S31254 Buttweld Collar, DIN 1.4547 Welded collar
Nimonic collar fitting Nimonic 75 Collar, Nimonic 80A Welded collar, Nimonic 90 Collar pipe fittings
Other welding collar material Tin bronze Welded collar, Alumunum bronze collar fitting, Lead bronze collar fitting
Titanium Collar pipe fittings
  • ASTM B381 Titanium Gr. 1 Collar pipe fittings
  • ASTM B381 Titanium Gr. 2 collar fitting
  • ASTM B381 Titanium Gr. 4 Welded collar
  • ASTM B381 Titanium Gr. 5 Buttweld Collar
  • ASTM B381 Titanium Gr. 7 Collar pipe fittings
