One Of The Top Welding Neck Flange EN 1092-1 Type 35 Manufacturers In India,EN 1092-1 Type 35 PN16 Flange, Welding Ring EN 1092-1 Type 35, EN 1092-1 Type 35 Collar, En 1092-1 Type 35
Blind Flange DIN EN 1092-1 Manufacturer In India, Standard Specification Of Welding Ring EN 1092-1 Type 35, En 1092-1 Type 35 Pressure, EN 1092-1 PN 16 Flange Dimensions In MM, EN 1092-1 Type 35 Flanges Specification, EN 1092-1 Type 35 Flanges Suppliers.
Detailed Information
EN 1092-1 Type 35 Flanges are made and supplied by Prashaant Steel & Alloys, a world-renowned producer and retailer.EN 1092-1 Type 35 Flanges are commonly recognised as pieces made of stainless steel of maritime quality. Prashaant Steel is a common choice for selecting the best quality EN 1092-1 Type 35 Flanges because of our company’s excellent reliability and stability. Prashaant Steel & Alloys produces EN 1092-1 Type 35 Flanges with cutting-edge equipment and machinery to ensure that the EN 1092-1 Type 35 Flanges are fully dimensionally correct. Prashaant Steel has a wide range of EN 1092-1 Type 35 Flanges for our customers to choose from. Our customers can choose the most acceptable EN 1092-1 Type 35 Flanges from a range of sizes and thicknesses, as well as other EN 1092-1 Type 35 Flanges sizes. Our comprehensive inventory helps us to satisfy our customers’ demands for quantity and quality in EN 1092-1 Type 35 Flanges.
We manufacture many different types of flanges in this specification. The Flange EN 1092-1 Type 35 can be a slip-on, welded neck, blind or lap joint in type. The EN 1092-1 Type 35 Slip On Flange can be of raised face or flat face depending on the application requirement and we produce all of them. The slip-on flanges are used to make the fitting quickly by allowing the pipes to slip through them and then welding them in the needed point. The EN 1092-1 Type 35 Blind Flange is used to end the pipeline with a strong closure. Please contact us for further product details and costs.

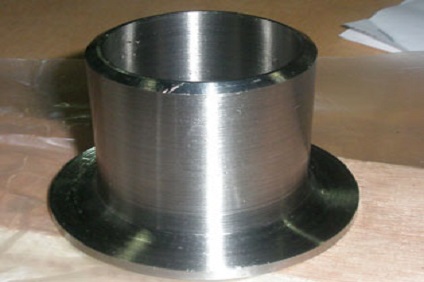

The EN 1092-1 type 35 is made up of 304L grade austenitic stainless steel. It is applied in the oil, offshore, water, ship building, natural gas and power generation industries. The shape of the fitting looks like a ring. So it is also known as a welding ring. With the raised rims it also looks like a collar. Some practitioners better know it as a weld neck collar. The fitting could also be made in 304 material which has standard carbon content. It is used for slim and shorter connections mostly to aid with welding two pipes together.
Specification Chart Of En 1092-1 Type 35 Flange:
| Standard Reference |
|
| Pressure Rate | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Value Added Services | Oil Black Paint, Antirust Paint, Cold and Hot Dip Galvanized, Yellow Transparent, Zinc Blind |
| Dimensions | EN 1092-1 Type 35 |
| Material | P250GH, 1.4541, S235JRG2, 1.4571 |
| Techniques of Production | Machined, Forged, and Heat Treated |
| Manufacturers of EN 1092-1 Type 35 Welding Ring |
|
| Equipments | Bending Machine, Press Machine, Sand-Blasting Machine, Pushing Machine, Electric Bevelling Machine, etc. |
Dimensions Of EN 1092-1 Type 35 Welding Ring:
|
DN |
A |
d1 |
H4 |
F |
S |
Sp |
kg |
|
200 |
219,10 |
268 |
62 |
11 |
6 |
2,6 |
3,90 |
|
250 |
273,00 |
320 |
68 |
12 |
8 |
3,2 |
5,80 |
|
300 |
323,90 |
370 |
68 |
12 |
8 |
3,2 |
6,80 |
|
350 |
355,60 |
430 |
68 |
13 |
8 |
3,2 |
9,50 |
|
400 |
406,40 |
482 |
72 |
14 |
8 |
3,2 |
11,60 |
|
450 |
457,00 |
532 |
72 |
15 |
8 |
3,6 |
15,00 |
|
500 |
508,00 |
585 |
75 |
16 |
8 |
4 |
15,90 |
|
600 |
610,00 |
685 |
80 |
18 |
10 |
5 |
23,00 |
|
700 |
711,00 |
800 |
80 |
20 |
10 |
6,3 |
30,90 |
|
800 |
813,00 |
905 |
90 |
20 |
12 |
6,3 |
41,50 |
|
900 |
914,00 |
1005 |
95 |
22 |
12 |
8 |
50,00 |
|
1000 |
1.016,00 |
1110 |
95 |
24 |
12 |
8 |
58,90 |
|
1200 |
1.219,00 |
1330 |
115 |
26 |
16 |
10 |
93,20 |
Loose Flange En 1092-1 Type 35 Pressure:
|
Flange Tables |
-10°C to 200°C |
250°C |
300°C |
350°C |
400°C |
425°C |
450°C |
475°C |
|
6 |
6 |
5.5 |
5 |
– |
– |
– |
– |
– |
|
10 |
10 |
9 |
8 |
7 |
6 |
– |
– |
– |
|
16 |
16 |
15 |
13 |
11 |
9 |
– |
– |
– |
|
25 |
25 |
24 |
21 |
17 |
14 |
12 |
9 |
6 |
|
40 |
40 |
38 |
33 |
28 |
23 |
20 |
15 |
10 |
|
64 |
64 |
61 |
53 |
44 |
36 |
32 |
24 |
16 |
|
100 |
100 |
95 |
83 |
70 |
57 |
50 |
37 |
25 |
|
160 |
160 |
152 |
132 |
112 |
92 |
80 |
60 |
40 |
Chemical Composition Of 1.4404 Welding Ring:
|
Grade |
SS 316L |
|
Carbon |
0.10 max |
|
Manganese |
2 max |
|
Silicon |
0.75 max |
|
Phosphorus |
0.045 max |
|
sulphur |
0.030 max |
|
Chromium |
16 – 18 |
|
Molybdenum |
2 – 3 |
|
Nickel |
10 – 14 |
|
Nitrogen |
– |
