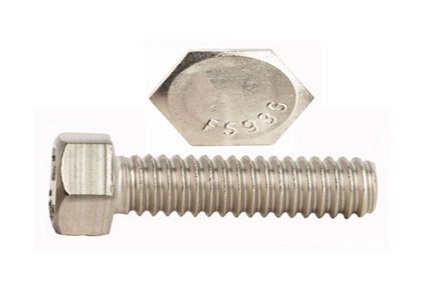

ASTM F593 Fasteners
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now
Manufacturers of ASTM F593 Type 316 Threaded Rod, F593 gr 18-8 stainless steel Hex Bolts, and Screws in India.
We make ASTM F593 CW Nuts, F593 Stud Bolt as per standard, ASTM F593 Washer Suppliers in India.
Detailed Information
Prashaant Steel & Alloys is a well-known ASTM F593 Fasteners maker and retailer. We manufacture ASTM F593 Fasteners with the best quality raw materials from our vast inventory. Prashaant Steel & Alloys produces ASTM F593 Fasteners of excellent quality and has carved out a niche for itself in the industry. Our ASTM F593 Fasteners are highly common and are used in a number of industries due to their high strength and reliability. Prashaant Steel & Alloys has a well-equipped production facility that can fill huge orders of ASTM F593 Fasteners in a range of sizes and diameters. We manufacture ASTM F593 Fasteners and export them to all of the world’s big cities. We store our goods in suitable wooden boxes and ship them with all appropriate paperwork to prevent product degradation during shipping.
The ASTM F593 Nut Bolt in group1 can be made up of the 303, 304, 305, 384 austenitic stainless steels. The 316 austenitic stainless fasteners belong to the alloy group 2 and 321 347 grades belong to the alloy group 3. The ASTM F593 18-8 Stud can be made of ferritic alloys in group 4, martensitic alloys of groups 5 and 6 or with precipitation hardening alloys of group 7. The ASTM F593 Stainless Steel Threaded Rod and other fasteners have varying strength values based on the different material grade. The chemical composition of the materials include carbon, manganese, phosphorus, sulfur, silicon and chromium. The minimum tensile strength ranges from 65ksi to 150 ksi and the minimum yield strength ranges from 20ksi to 65ksi. The hardness of the ASTM F593 cw Nuts ranges up to B95.
ASTM F593 Bolts range from ¼ inches to 1 ½ inches in diameter. The specification covers stainless steel bolts, studs and cap screws in this diameter range. There are different materials used to produce these fasteners. There are 8 groups of alloys that are used and based on the group the material grade differs.
Specifications chart of ASTM F593 Bolts:
|
ASTM Standard |
F593 |
|
Coatings |
Xylan, Black Oxide, Zinc, Cadmium, Teflon, Galvanized |
|
Mandatory Requirements |
Free from Mercury & Radioactive Contamination |
|
Threads Configuration |
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads |
|
Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
|
Head |
Hex, Round, Hex flange, Flat, Square etc |
|
Coatings |
Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
|
Additional Requirements |
NACE MR0103 / MR0175 / ISO 15156 Compliance |
Chemical Formula of ASTM F593 Washer:
|
Element, max except as shown |
Alloy Group 1, Type 304 |
Alloy Group 2, Type 316 |
|
Carbon |
0.08% |
0.08% |
|
Manganese |
2.00% |
2.00% |
|
Phosphorus |
0.045% |
0.045% |
|
Sulfur |
0.030% |
0.030% |
|
Silicon |
1.00% |
1.00% |
|
Chromium |
18.0 to 20.0% |
16.0 to 18.0% |
|
Nickel |
8.0 to 10.5% |
10.0 to 14.0% |
|
Copper |
1.00% |
|
|
Molybdenum |
2.00 to 3.00% |
ASTM F593 Screw Mechanical Properties Analysis:
|
Alloy Group |
Condition |
Marking |
Diameter Range |
Tensile, ksi |
Yield, ksi min |
Rockwell Hardness |
|
1 |
AF |
F593A |
1/4 to 1-1/2 |
65 to 85 |
20 |
B85 max |
|
A |
F593B |
1/4 to 1-1/2 |
75 to 100 |
30 |
B65 to 95 |
|
|
CW1 |
F593C |
1/4 to 5/8 |
100 to 150 |
65 |
B95 to C32 |
|
|
CW2 |
F593D |
3/4 to 1-1/2 |
85 to 140 |
45 |
B80 to C32 |
|
|
2 |
AF |
F593E |
1/4 to 1-1/2 |
65 to 85 |
20 |
B85 max |
|
A |
F593F |
1/4 to 1-1/2 |
75 to 100 |
30 |
B65 to 95 |
|
|
CW1 |
F593G |
1/4 to 5/8 |
100 to 150 |
65 |
B95 to C32 |
|
|
CW2 |
F593H |
3/4 to 1-1/2 |
85 to 140 |
45 |
B80 to C32 |
Equivalent material grade of ASTM F593 Nut Bolt:
|
Alloy Group |
Alloy Designation |
Alloy Type |
|
1 |
303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se |
Austenitic |
|
2 |
316, 316L |
Austenitic |
|
3 |
321, 347 |
Austenitic |
|
4 |
430, 430F |
Ferritic |
|
5 |
410, 416, 416Se |
Martensitic |
|
6 |
431 |
Martensitic |
|
7 |
630 (17-4) |
Precipitation Hardening |
Dimensions Table of F593 Hex Bolt:
|
NOMINAL SIZE (D) |
BODY DIAMETER |
HEAD THICKNESS ASTM F593 |
ACRO ASTM F593 THE FLATS |
ACROASTM F593 CORNERS |
||||
|
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
|
m10 |
10.00 |
9.78 |
6.63 |
6.17 |
17.00 |
15.73 |
18.48 |
17.77 |
|
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
|
m16 |
16.00 |
15.73 |
10.32 |
9.68 |
24.00 |
23.67 |
27.71 |
26.75 |
|
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.95 |
|
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
|
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
|
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
|
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
|
m56 |
56.00 |
55.26 |
36.2 |
33.80 |
85.00 |
82.20 |
98.15 |
93.71 |
|
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
95.00 |
91.80 |
109.70 |
104.65 |
|
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
|
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
|
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
|
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
ASME SF593 Heavy Hex Bolts Dimensions:
|
Diameter (D) |
Body Diameter (D) |
Across the Flats (F) |
Across the Corners © |
Head Height (H) |
Thread Lengths (T) |
|||||
|
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
MIN |
< 6” |
> 6” |
|
|
1/2 |
0.515 |
0.482 |
0.875 |
0.85 |
1.01 |
0.969 |
0.364 |
0.302 |
1.25 |
1.5 |
|
5/8 |
0.642 |
0.605 |
1.062 |
1.031 |
1.227 |
1.175 |
0.444 |
0.378 |
1.5 |
1.75 |
|
3/4 |
0.768 |
0.729 |
1.25 |
1.212 |
1.443 |
1.383 |
0.524 |
0.455 |
1.75 |
2 |
|
7/8 |
0.895 |
0.852 |
1.438 |
1.394 |
1.66 |
1.589 |
0.604 |
0.531 |
2 |
2.25 |
|
1 |
1.022 |
0.976 |
1.625 |
1.575 |
1.876 |
1.796 |
0.7 |
0.591 |
2.25 |
2.5 |
|
1 1/8 |
1.149 |
1.098 |
1.812 |
1.756 |
2.093 |
2.002 |
0.78 |
0.658 |
2.5 |
2.75 |
|
1 1/4 |
1.277 |
1.223 |
2 |
1.938 |
2.309 |
2.209 |
0.876 |
0.749 |
2.75 |
3 |
|
1 3/8 |
1.404 |
1.345 |
2.188 |
2.119 |
2.526 |
2.416 |
0.94 |
0.81 |
3 |
3.25 |
|
1 1/2 |
1.531 |
1.47 |
2.375 |
2.3 |
2.742 |
2.622 |
1.036 |
0.902 |
3.25 |
3.5 |
|
1 3/4 |
1.785 |
1.716 |
2.75 |
2.662 |
3.175 |
3.035 |
1.196 |
1.054 |
3.75 |
4 |
|
2 |
2.039 |
1.964 |
3.125 |
3.025 |
3.608 |
3.449 |
1.388 |
1.175 |
4.25 |
4.5 |
|
2 1/4 |
2.305 |
2.214 |
3.5 |
3.388 |
4.041 |
3.862 |
1.548 |
1.327 |
4.75 |
5 |
|
2 1/2 |
2.559 |
2.461 |
3.875 |
3.75 |
4.474 |
4.275 |
1.708 |
1.479 |
5.25 |
5.5 |
|
2 3/4 |
2.827 |
2.711 |
4.25 |
4.112 |
4.907 |
4.688 |
1.869 |
1.632 |
5.75 |
6 |
|
3 |
3.081 |
2.961 |
4.625 |
4.475 |
5.34 |
5.102 |
2.06 |
1.815 |
6.25 |
6.5 |
ASTM F593 Nut Bolt Standard Specification:
- ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
- ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
- ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
- ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
- ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
- ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
