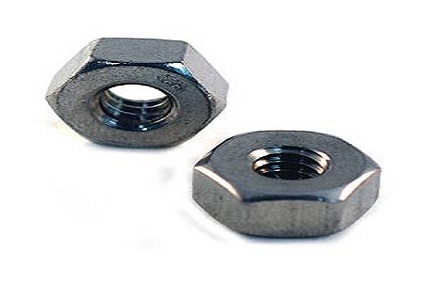

ASTM A194 Grade 6 Heavy Hex Nuts

[wpseo_breadcrumb]

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

astm-a194-grade-6-hex-nuts

ASME SA 194 Grade 6 Hex Nuts manufacturer in India.

View ASTM A194 Gr 6 Hex Nuts, ASTM A194 Grade 6 Fasteners Dimensions Chart.

Detailed Information

Prashaant Steel & Alloys is used in the manufacture of Grade 6 Heavy Hex Nuts in various industries that have found applications. At Prashaant Steel & Alloys, we manufacture ASTM A194 Grade 6 Heavy Hex Nuts in a variety of sizes and dimensions that are suitable for the applications needed. The Grade 6 Heavy Hex Nut that we manufacture are made from our huge inventory using the highest quality of raw materials. Grade 6 Heavy Hex Nut are available in sizes ranging in thickness. At Prashaant Steel & Alloys, we aim to offer full customer satisfaction. Therefore, we also manufacture the Grade 6 Heavy Hex Nuts in custom size orders that suit our clients’ specifications and requirements. Prashaant Steel & Alloys has a clientele of many companies from all over the world and caters to both large and small sectors. Prashaant Steel & Alloys houses all the machinery and technology required for the development of high caliber ASTM A194 Grade 6 Heavy Hex Nuts at its state-of-the-art plant.   At Prashaant Steel & Alloys, the customer service team ensures that all customers are helped with all their needs and demands. Due to the high strength they give, the ASTM A194 Grade 6 Heavy Hex Nuts from Prashaant Steel & Alloys are widely common.

The ASTM A194 Grade 6 Washer is one of the fasteners in this specification. This specification covers fasteners of 3mm to 200mm length with sizes ranging from M02 to M160 according to different standards such as DIN, ISO, JIS and others. The ASTM A194 Gr. 6 Nut comes with unified threads and metric coarse thread types. The thread type, material, dimensions and mechanical properties of the ASTM A194 Grade 6 Fasteners vary with the application requirements. The material can be quenched and tempered for high hardness. The applications include high wear and tear applications such as transportation, concrete work, construction, engineering, engine parts and others. The ASTM A194 Grade 6 properties make these fasteners available for a wide range of application types.

ASTM A194 Gr 6 Hex Nuts are made up of austenitic grades and martensitic grades of stainless steels. The material of this grade of nuts has carbon, manganese, phosphorus, sulfur, silicon and 11.5% chromium minimum in the composition. The SA 194 Gr 6 Nuts have minimum tensile strength of 550MPa and minimum yield strength of 240MPa. The hardness of the nuts is 223BHN.

A194 Grade 6 Heavy Hex Nuts Dimensions:

Nominal Size or Basic Major Thread Diameter F G H
Width Across Flats Width Across Corners Thickness
Basic Max Min Max Min Basic Max Min
1/4 .2500 1/2 .500 .488 .577 .556 15/64 .250 .218
5/16 .3125 9/16 .562 .546 .650 .622 19/64 .314 .280
3/8 .3750 11/16 .688 .669 .794 .763 23/64 .377 .341
7/16 .4375 3/4 .750 .728 .866 .830 27/64 .441 .403
1/2 .5000 7/8 .875 .850 1.010 .969 31/64 .504 .464
9/16 .5625 15/16 .938 .909 1.083 1.037 35/64 .568 .526
5/8 .6250 1-1/16 1.062 1.031 1.227 1.175 39/64 .631 .587
3/4 .7500 1-1/4 1.250 1.212 1.443 1.382 47/64 .758 .710
7/8 .8750 1-7/16 1.438 1.394 1.660 1.589 55/64 .885 .833
1 1.0000 1-5/8 1.325 1.575 1.876 1.796 63/64 1.012 .956
1-1/8 1.1250 1-13/16 1.812 1.756 2.093 2.002 1-7/64 1.139 1.079
1-1/4 1.2500 2 2.000 1.938 2.309 2.209 1-7/32 1.251 1.187
1-3/8 1.3750 2-3/16 2.188 2.119 2.526 2.416 1-11/32 1.378 1.460
1-1/2 1.5000 2-3/8 2.375 2.300 2.742 2.622 1-15/32 1.505 1.433
1-5/8 1.6250 2-9/16 2.562 2.481 2.959 2.828 1-19/32 1.632 1.556
1-3/4 1.7500 2-3/4 2.750 2.662 3.175 3.035 1-23/32 1.759 1.679
2 2.0000 3-1/8 3.125 3.025 3.608 3.449 1-31/32 2.013 1.925
2-1/4 2.2500 3-1/2 3.500 3.388 4.041 3.862 2-13/64 2.251 2.155
2-1/2 2.5000 3-7/8 3.875 3.750 4.474 4.275 2-29/64 2.505 2.401
2-3/4 2.7500 4-1/4 4.250 4.112 4.907 4.688 2-45/64 2.759 2.647
3 3.0000 4-5/8 4.625 4.475 5.340 5.102 2-61/64 3.013 2.893
3-1/4 3.2500 5 5.000 4.838 5.774 5.515 3-3/16 3.252 3.124
3-1/2 3.5000 5-3/8 5.375 5.200 6.207 5.928 3-7/16 3.506 3.370
3-3/4 3.7500 5-3/4 5.750 5.562 6.640 6.341 3-11/16 3.670 3.616
4 4.0000 6-1/8 6.125 5.925 7.073 6.755 3-15/16 4.014 3.862

ASTM A194 Grade 6 Washer Chemical Composition:

Composition

Percentage %

C.

0.15%

Mn.

1%

Si.

1.00%

P.

0.04%.

S.

0.03%

Cr.

11.5 – 13.5%

Ni.

Mo.

A194 Gr 6 Hex Nuts Mechanical Properties:

Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa)

Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa)

Elongation in 4D (El)

Reduction

Hardness – (BHN)

550

240

30

40

223

Most Selling types of ASTM A194 Stainless Steel Nuts:

A194 Grade 6 Square Nuts

A194 Grade 6 Spring Washers

A194 Gr. 6 Split Washers

A194 Grade 6 Hex Nuts

ASME SA194 Grade 6 Eye Nuts

ASTM A194 Gr 6 T Nuts

SS A194 Grade 6 Coupling Nuts

SA194 Gr 6 Self Locking Nuts

ASTM A194 Grade 6 Flange Nuts

A 194 Grade 6 panel nuts

ASME SA194 Grade 6 Heavy Hex Nuts Dimensions:

Diameter (D)

Body Diameter (D)

Across the Flats (F)

Across the Corners ©

Head Height (H)

Thread Lengths (T)

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

< 6”

> 6”

1/2

0.515

0.482

0.875

0.85

1.01

0.969

0.364

0.302

1.25

1.5

5/8

0.642

0.605

1.062

1.031

1.227

1.175

0.444

0.378

1.5

1.75

3/4

0.768

0.729

1.25

1.212

1.443

1.383

0.524

0.455

1.75

2

7/8

0.895

0.852

1.438

1.394

1.66

1.589

0.604

0.531

2

2.25

1

1.022

0.976

1.625

1.575

1.876

1.796

0.7

0.591

2.25

2.5

1 1/8

1.149

1.098

1.812

1.756

2.093

2.002

0.78

0.658

2.5

2.75

1 1/4

1.277

1.223

2

1.938

2.309

2.209

0.876

0.749

2.75

3

1 3/8

1.404

1.345

2.188

2.119

2.526

2.416

0.94

0.81

3

3.25

1 1/2

1.531

1.47

2.375

2.3

2.742

2.622

1.036

0.902

3.25

3.5

1 3/4

1.785

1.716

2.75

2.662

3.175

3.035

1.196

1.054

3.75

4

2

2.039

1.964

3.125

3.025

3.608

3.449

1.388

1.175

4.25

4.5

2 1/4

2.305

2.214

3.5

3.388

4.041

3.862

1.548

1.327

4.75

5

2 1/2

2.559

2.461

3.875

3.75

4.474

4.275

1.708

1.479

5.25

5.5

2 3/4

2.827

2.711

4.25

4.112

4.907

4.688

1.869

1.632

5.75

6

3

3.081

2.961

4.625

4.475

5.34

5.102

2.06

1.815

6.25

6.5

Grade 6 Nuts Standard Specification:

  • ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
  • ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
  • ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
  • ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
  • ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
  • ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
