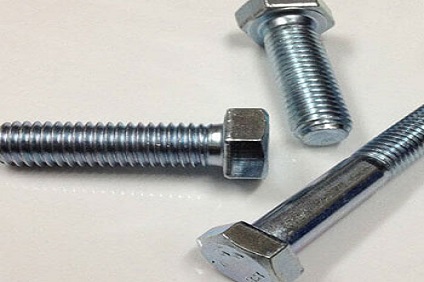

ASTM F468 Fasteners

ASTM F468 Material Manufacturers in India, ASTM F468 UNS N06625 Threaded Rod, ASTM F468 Nuts at best prices in India.

ASTM F468 Alloy 400 Hex Bolts, Screw and F468 UNS N06625 Anchor Bolt manufacturer in India.

Detailed Information

Prashaant Steel & Alloys is used in the manufacture of ASTM F468 Fasteners in various industries that have found applications. At Prashaant Steel & Alloys, we manufacture ASTM F468 Fasteners in a variety of sizes and dimensions that are suitable for the applications needed. The ASTM F468 Fasteners that we manufacture are made from our huge inventory using the highest quality of raw materials. ASTM F468 Fasteners are available in sizes ranging in thickness. At Prashaant Steel & Alloys, we aim to offer full customer satisfaction. Therefore, we also manufacture the ASTM F468 Fasteners in custom size orders that suit our clients’ specifications and requirements. Prashaant Steel & Alloys has a clientele of many companies from all over the world and caters to both large and small sectors. Prashaant Steel & Alloys houses all the machinery and technology required for the development of high caliber ASTM F468 ASTM F468 Fasteners at its state-of-the-art plant.   At Prashaant Steel & Alloys, the customer service team ensures that all customers are helped with all their needs and demands. Due to the high strength they give, the ASTM F468 ASTM F468 Fasteners from Prashaant Steel & Alloys are widely common.

The ASTM F468 Material can be copper alloys, Monel 400, 405 and K500, Inconel 625, titanium grades and other aluminum alloys as well. These are formed, stress relieved, solution annealed, aged, stabilized or naturally aged depending on the material composition of the grade. The ASTM F468 Anchor Bolt is used to anchor load bearing components to solid structures and concrete structures. These fasteners get different tensile and yield strengths based on the material they are made from. The ASTM F468 Flange Bolt is a type of bolt made with a flange next to the head so that the bolt is kept in place without slipping from the bolt hole. There are different test methods for different material types as well.

ASTM F468 Screw is a type of fastener that could be made from various types of materials. The specification covers various wrought non – ferrous bolts, stud bolts, screws and others ranging from ¼ inches to 1 ½ inches in diameter. The fasteners are made with coarse and fine thread types.

ASTM F468 Alloy 400 Nuts Material Equivalent:

Alloy Group

Alloy Designation

Alloy Type

1

303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se

Austenitic

2

316, 316L

Austenitic

3

321, 347

Austenitic

4

430, 430F

Ferritic

5

410, 416, 416Se

Martensitic

6

431

Martensitic

7

630 (17-4)

Precipitation Hardening

Composition Standard for ASTM F468 Screw:

Element, max except as shown

Alloy Group 1, Type 304

Alloy Group 2, Type 316

Carbon

0.08%

0.08%

Manganese

2.00%

2.00%

Phosphorus

0.045%

0.045%

Sulfur

0.030%

0.030%

Silicon

1.00%

1.00%

Chromium

18.0 to 20.0%

16.0 to 18.0%

Nickel

8.0 to 10.5%

10.0 to 14.0%

Copper

1.00%

Molybdenum

2.00 to 3.00%

ASTM F468 Bolts Mechanical Properties Tensile Strength:

Alloy Group

Condition

Marking

Diameter Range

Tensile, ksi

Yield, ksi min

Rockwell Hardness

1

AF

F468A

1/4 to 1-1/2

65 to 85

20

B85 max

A

F468B

1/4 to 1-1/2

75 to 100

30

B65 to 95

CW1

F468C

1/4 to 5/8

100 to 150

65

B95 to C32

CW2

F468D

3/4 to 1-1/2

85 to 140

45

B80 to C32

2

AF

F468E

1/4 to 1-1/2

65 to 85

20

B85 max

A

F468F

1/4 to 1-1/2

75 to 100

30

B65 to 95

CW1

F468G

1/4 to 5/8

100 to 150

65

B95 to C32

CW2

F468H

3/4 to 1-1/2

85 to 140

45

B80 to C32

F468 Heavy Hex Bolts Dimensions Chart:

NOMINAL SIZE (D)

BODY DIAMETER

HEAD THICKNEASTM F468

ACROASTM F468 THE FLATS

ACROASTM F468 CORNERS

D (MAX)

D (MIN)

H (MAX)

H (MIN)

F (MAX)

F (MIN)

C (MAX)

C (MIN)

m10

10.00

9.78

6.63

6.17

17.00

15.73

18.48

17.77

m12

12.00

11.73

7.76

4.24

19.00

17.73

20.78

20.03

m16

16.00

15.73

10.32

9.68

24.00

23.67

27.71

26.75

m20

20.00

19.67

12.88

12.12

30.00

29.16

34.64

32.95

m30

30.00

29.67

19.48

17.92

46.00

45.00

53.12

50.85

m36

36.00

35.61

23.38

21.63

55.00

53.80

63.51

60.79

m42

42.00

41.38

26.97

25.03

65.00

62.90

75.06

71.71

m56

56.00

55.26

36.2

33.80

85.00

82.20

98.15

93.71

m64

64.00

63.26

41.32

38.68

95.00

91.80

109.70

104.65

m72

72.00

71.26

46.45

43.55

105.00

101.40

121.24

115.60

m80

80.00

79.26

51.58

48.42

115.00

111.00

132.72

126.54

m90

90.00

89.13

57.74

54.26

130.00

125.50

150.11

143.07

ASTM F468 Bolts Dimensions:

Diameter (D)

Body Diameter (D)

Across the Flats (F)

Across the Corners ©

Head Height (H)

Thread Lengths (T)

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

< 6”

> 6”

1/2

0.515

0.482

0.875

0.85

1.01

0.969

0.364

0.302

1.25

1.5

5/8

0.642

0.605

1.062

1.031

1.227

1.175

0.444

0.378

1.5

1.75

3/4

0.768

0.729

1.25

1.212

1.443

1.383

0.524

0.455

1.75

2

7/8

0.895

0.852

1.438

1.394

1.66

1.589

0.604

0.531

2

2.25

1

1.022

0.976

1.625

1.575

1.876

1.796

0.7

0.591

2.25

2.5

1 1/8

1.149

1.098

1.812

1.756

2.093

2.002

0.78

0.658

2.5

2.75

1 1/4

1.277

1.223

2

1.938

2.309

2.209

0.876

0.749

2.75

3

1 3/8

1.404

1.345

2.188

2.119

2.526

2.416

0.94

0.81

3

3.25

1 1/2

1.531

1.47

2.375

2.3

2.742

2.622

1.036

0.902

3.25

3.5

1 3/4

1.785

1.716

2.75

2.662

3.175

3.035

1.196

1.054

3.75

4

2

2.039

1.964

3.125

3.025

3.608

3.449

1.388

1.175

4.25

4.5

2 1/4

2.305

2.214

3.5

3.388

4.041

3.862

1.548

1.327

4.75

5

2 1/2

2.559

2.461

3.875

3.75

4.474

4.275

1.708

1.479

5.25

5.5

2 3/4

2.827

2.711

4.25

4.112

4.907

4.688

1.869

1.632

5.75

6

3

3.081

2.961

4.625

4.475

5.34

5.102

2.06

1.815

6.25

6.5
