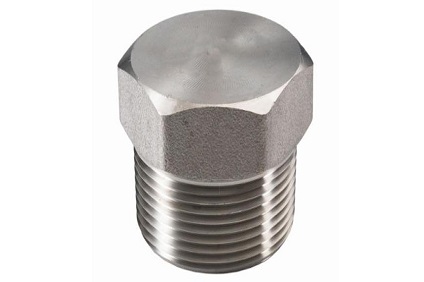

asme-b16-11-threaded-hex-plug

Check 3000 Threaded Plug Dimensions In Inch, Manufacturer Of ASME B16.11 Threaded Plug In India.

Forged Steel Socket Weld Plug Weight Chart, Compare Prices Before You Buy Female Threaded Plug, Contact Us For Carbon Steel Socket Weld Plug Instant Delivery In India.

Socket Weld Plug Fittings, Accept small Orders Of Aluminum Threaded Plug, Check Availability 1/2 Socket Weld Plug, Buy 1 Inch / 2 Inch Npt Plug Certified & Tested Materials.

Detailed Information

Prashaant Steel & Alloys is an outstanding ASME B16.1 Plugs fabricator and manufacturer. The ASME B16.1 Plugs are one of the most common forms of Forged fittings used in the industries. These ASME B16.1 Plugs are used in applications in different industries because of the special features they give. At Prashaant Steel & Alloys, we are engaged in the development of the ASME B16.1 Plugs which provide excellent stability and precision in dimension. Our state-of-the-art manufacturing facility helps us to manufacture the ASME B16.1 Plugs in different sizes and diameters. The ASME B16.1 Plugs that we manufacture in different corrosive media give exceptional resistivity to corrosion. Prashaant Steel & Alloys is capable of delivering the shortest lead time to bulk orders of ASME B16.1 Plugs. Prashaant Steel & Alloys houses an enormous inventory that is filled with only the top-notch resources that allow us to provide a wide range of ASME B16.1 Plugs. We do carry out many checks on our goods to guarantee the consistency of the goods.

Pipe plugs are described as a cap end of a fractional tube that is used in a large number of industries. Designed to be inserted into the end of the tubing, the ASME B16.11 Plug ends the flow of media across piping systems. Materials of varying quality could be used in the manufacture of high quality tube plug in a variety of end connections. Some common materials used in the making of Socket Weld Plug Fittings are as follows: Steel, Stainless Steel, Carbon steel, Brass, Copper, Aluminium, Rubber, Plastic etc.

The 1 Inch / 2 Inch Npt Plug is available in one piece body design. The easy to replace plug assembly is what makes these fittings used in an industrial piping system very easy to maintain and clean. The pipe plugs are an easy and cost effective solution to plug pipes. Often a Forged Steel Socket Weld Plug has been plated with chrome or nickel in order to provide for a superior finish look in addition to better resistance to corrosion.

The ASME B16.11 Threaded Plug Dimensions are used to make fittings to be used in the closing of the ends of various pneumatic or hydraulic pipes or tubes. The Female Threaded Plugs Weight Chart is essential in the manufacture of these fittings as they are used in the plumbing apparatus of both industrial and domestic water supply lines, machinery and so on. Pug fittings are also used for removal of air blocks on water pump lines.

Socket Weld Plug Fittings Specification:

Specification :

ASME B16.11 Plug

Connection Type :

Welding

Standard Of BSPP Plug:

ASME B16.38, MSS-SP-43, JISB2313, ASME B16.25, JISB2311, MSS SP-75, DIN2605, JISB2312, BS10, ASME B16.47, AWWA C207, BS4504, BS1560, BS, PN, IS 2062, DIN, ANSI B16.28, ASME B16.9, GB, ISO

Dimensions Class Of SW Pipe Plug:

Class 2000, Class 3000, Class 6000, Class 9000

Pressure Rating Of 1/2 Socket Weld Plug:

Socket, Threaded Rating: 3000 LBS, 6000 LBS, 9000 LBS

1 Inch NPT Plug Size:

1/8” NB to 4” NB (Screwed-Socket)

Forged Type :

BSPT (Socket), NPT (Threaded), BSPP.

Origin And Mills:

Europe, India, Japanese, Russian, USA

Female Threaded Plug Size Chart:

NPS

Mini. Length

E

Mini. Hex Height

J

Nominal

F

1/2

14

8

22

3/4

16

10

27

1

19

10

35

1.1/4

21

14

44.5

1.1/2

21

16

51

2

22

18

63.5

2.1/2

27

19

76

3

28

21

89

4

32

25

117.5

Stainless Steel Screwed Square Plug Dimensions:

Stainless Steel Screwed Square Plug Dimensions In MM

Nominal

Pipe

Size

Length

(Mini.)

A



Plugs Square Head

Height of

Square

(Mini.)

B

Width

Flats

(Mini.)

C

1/8”

9.7

6.6

7.1

1/4”

11.2

6.6

9.7

3/8”

12.7

7.9

11.2

1/2”

14.2

9.7

14.2

3/4”

15.7

11.2

15.7

1”

19.1

12.7

20.6

1-1/4”

20.6

14.2

23.9

1-1/2”

20.6

15.7

28.4

2”

22.4

17.5

33.3

2-2/2”

26.9

19.1

38.1

3”

28.4

20.6

42.9

4”

31.8

25.4

53.5

ANSI/ASME B16.11 Plug Dimensions:

ANSI/ASME B16.11 Plug

Normal Pipe Size

(Inches)

TPI

Appro. Length of NPT (inches)

Tap Drill

(inches)

1/16″

27

0.313



1/8″

27

3/8

10

1/4

0.405

R

1/4″

18

5/8

11

3/8

0.540

7/16

3/8″

18

5/8

11

3/8

0.675

37/64

1/2″

14

3/4

10

7/16

0.840

23/32

3/4″

14

3/4

10

1/2

1.050

59/64

1″

11-1/2

7/8

10

9/16

1.315

1-5/32

1-1/4″

11-1/2

1

11

9/16

1.660

1-1/2

1-1/2″

11-1/2

1

11

9/16

1.900

1-47/64

2″

11-1/2

1

11

5/8

2.375

2-7/32

2-1/2″

8

1 1/2

12

7/8

2.875

2-5/8

3″

8

1 1/2

12

1

3.500

3-1/4

3-1/2″

8

1 5/8

13

1 1/16

4.000

3-3/4

4″

8

1 5/8

13

1 1/16

4.500

4-1/4

4 1/2″

8

5.000

4-3/4

5″

8

1 3/4

14

1 3/16

5.563

5-9/32

6″

8

1 3/4

14

1 3/16

6.625

6-11/32

8″

8

1 7/8

15

1 5/16

8.625



10″

8

2

16

1 1/2

10.750



12″

8

2 1/8

17

1 5/8

12.750



14″

8

14.000



16″

8

16.000



Hex Head Plug Dimensions:

Normal Pipe Sizes

Minimum (Min.) Length

E

Minimum (Min.) Hex Height

J

Nominal

F

1/2

14

8

22

3/4

16

10

27

1

19

10

35

21

14

44.5

21

16

51

2

22

18

63.5

27

19

76

3

28

21

89

4

32

25

117.5

Round Head Plug Dimensions:

NPS

Minimum Length

A

Nominal Head Diameter

D

Minimum Length

E

1/2

44

21

14

3/4

44

27

16

1

51

33

19

51

43

21

51

48

21

2

64

60

22

70

73

37

3

70

89

28

4

76

114

32

ASME B16.11 Threaded Plugs Pressure Rating Chart:

Temperature Of ASME B16.11 Plug

Temperature

Class

150 LBS

300 LBS

1/4 – 1 Inches

1 1/4 – 2 Inches

2 1/2 – 3 Inches

(oF)

(oC)

-20 to 150

-29 to 66

300

2000

1500

1000

200

93

265

1785

1350

910

250

121

225

1575

1200

825

300

149

185

1360

1050

735

350

177

150

1150

900

650

400

204

935

750

560

450

232

725

600

475

500

260

510

450

385

550

288

300

300

300
