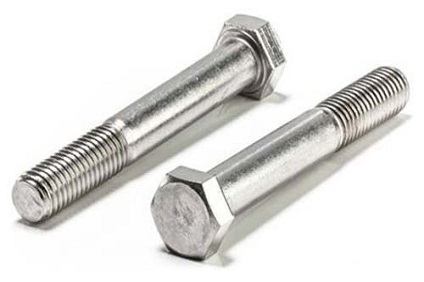

ASTM A453 Grade 660 Bolts
Specification
CHEMICAL & MECHANICAL COMPOSITION
Enquire Now



Manufacturer of ASME SA 453 gr 660 Stud Bolts, Grade 660 Class A Nuts in India.
Detailed Information
Prashaant Steel & Alloys is a well-known Grade 660 Bolts maker and retailer. We manufacture ASTM F468 Grade 660 Bolts with the best quality raw materials from our vast inventory. Prashaant Steel & Alloys produces Grade 660 Bolts of excellent quality and has carved out a niche for itself in the industry. Our Grade 660 Bolts are highly common and are used in a number of industries due to their high strength and reliability. Prashaant Steel & Alloys has a well-equipped production facility that can fill huge orders of ASTM F468 Grade 660 Bolts in a range of sizes and diameters. We manufacture Grade 660 Bolts and export them to all of the world’s big cities. We store our goods in suitable wooden boxes and ship them with all appropriate paperwork to prevent product degradation during shipping.
These have high Brinell hardness scores ranging from 248 to 341HBW. The astm a453 grade 660 Nut Bolts range in size and length according to the grades. They range from 3/8 inches to 4 inches in sizes. The sizes range up to M100 in the metric system for the ASTM A453 Grade 660 Class D Studs. These are high tensile fasteners and can be used in high vibration systems such as engine parts. As these also can withstand high temperature and pressure, these are used in boiler, pressure vessel and pipeline applications. The ASTM A453 Gr 660 Class C Bolts are used in oil and gas lines as well. The rupture resistance of these bolts make them better for use in oil and gas transmission lines. The A453 Grade 660 Class B Stud Bolts can also be easily applied to applications that need frequent installation and uninstallation of the bolts for testing and operational needs. The ASTM A453 Gr 660 Stainless Steel Bolt can be heat treated to achieve the necessary hardness. The four different classes can be heat treated differently and are used in different application types. The class D A453 Gr 660 specification fastener is more expensive than the other classes.
ASTM A453 gr 660 Bolts come in four different classes. The class D is superior to others with high yield strength values. The material is made up of 24% nickel, 13% chromium, molybdenum, titanium, aluminum, vanadium, boron, silicon, sulfur, phosphorus, manganese and carbon in the composition. The A453 Gr 660 Class A/B/C/D Stud Bolts are very highly corrosion resistant to acidic conditions.
ASTM A453 grade 660 Nuts grades and specifications:
Standard |
ASTM A453/ ASME SA453 |
Melt Origin |
East Europe/South America/Korea/Japan |
Dimensions |
ASME B18.2.1, B18.3 |
Mandatory Requirements |
Free from Mercury & Radioactive Contamination |
Certification |
Dual Certified As per ASTM & ASME Codes |
Additional Certifications |
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
Threads Configuration |
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads |
Additional Requirements |
NACE MR0103/MR0175/ISO 15156 Compliance |
Dimensions Table of ASTM A286 Gr. 660 Bolts:
NOMINAL SIZE (D) |
BODY DIAMETER |
HEAD THICKNESS ASTM A193 |
ACRO ASTM A193 THE FLATS |
ACROASTM A193 CORNERS |
||||
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
m14 |
14.00 |
13.73 |
9.09 |
8.51 |
22.00 |
20.67 |
24.25 |
23.35 |
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.95 |
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
95.00 |
91.80 |
109.70 |
104.65 |
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
ASTM A453 Gr 660 Bolts Chemical Resistance Guide:
Element |
Grade 660 |
Carbon |
0.08 max |
Manganese |
2.00 max |
Phosphorus, max |
0.040 max |
Sulfur, max |
0.030 max |
Silicon |
1.00 max |
Nickel |
24.0-27.0 |
Chromium |
13.5-16.0 |
Molybdenum |
1.00-1.50 |
Tungsten |
… |
Titanium |
1.9-2.35 |
Columbium * |
… |
Aluminum |
0.35 max |
Vanadium |
0.10-0.50 |
Boron |
0.001-0.010 |
Copper |
– |
Mechanical Behaviour of A453 Gr 660 Class C Bolts:
Grade |
Class |
Tensile Strength |
Yield Strength |
Elongation in 4D, min, % |
Reduction of Area, min, % |
Brinell Hardness Number |
Approximate Rockwell Hardness, B & C |
|||
Ksi |
Mpa |
Ksi |
Mpa |
min |
max |
|||||
Grade 660 |
A, B and C |
130 |
895 |
85 |
585 |
15 |
18 |
248-341 |
24 HRC |
37 HRC |
Grade 660 |
D |
130 |
895 |
105 |
725 |
15 |
18 |
248-341 |
24 HRC |
35 HRC |
A453 Grade 660 Class D Studs Material Equivalent:
AISI |
UNS |
BS |
Wr No. |
En Name |
DIN EN |
JIS |
AMS |
ASTM |
other names |
Additional Requirements |
|
660 |
S 66286 |
HR 51 |
1.4944 |
X6NiCrTiMoV26-15 |
10269 |
SUS 660 |
5726 |
ASTM A453 GRADE 660A |
incoloy a286 |
NACE MR-0175 |
Standard Specification of Grade 660 Stud Bolts:
- ASTM A453 / A453M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
- ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
- ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
- ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
- ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
- ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
